Manual for 2003 5000 & 6000 BTU AIR CONDITIONERS
Uploaded: Nov. 21, 2025, 8:54 p.m.
Warranty Information
Offers a full one-year warranty on parts and labor, with a five-year warranty on the sealed refrigeration system for specific models.

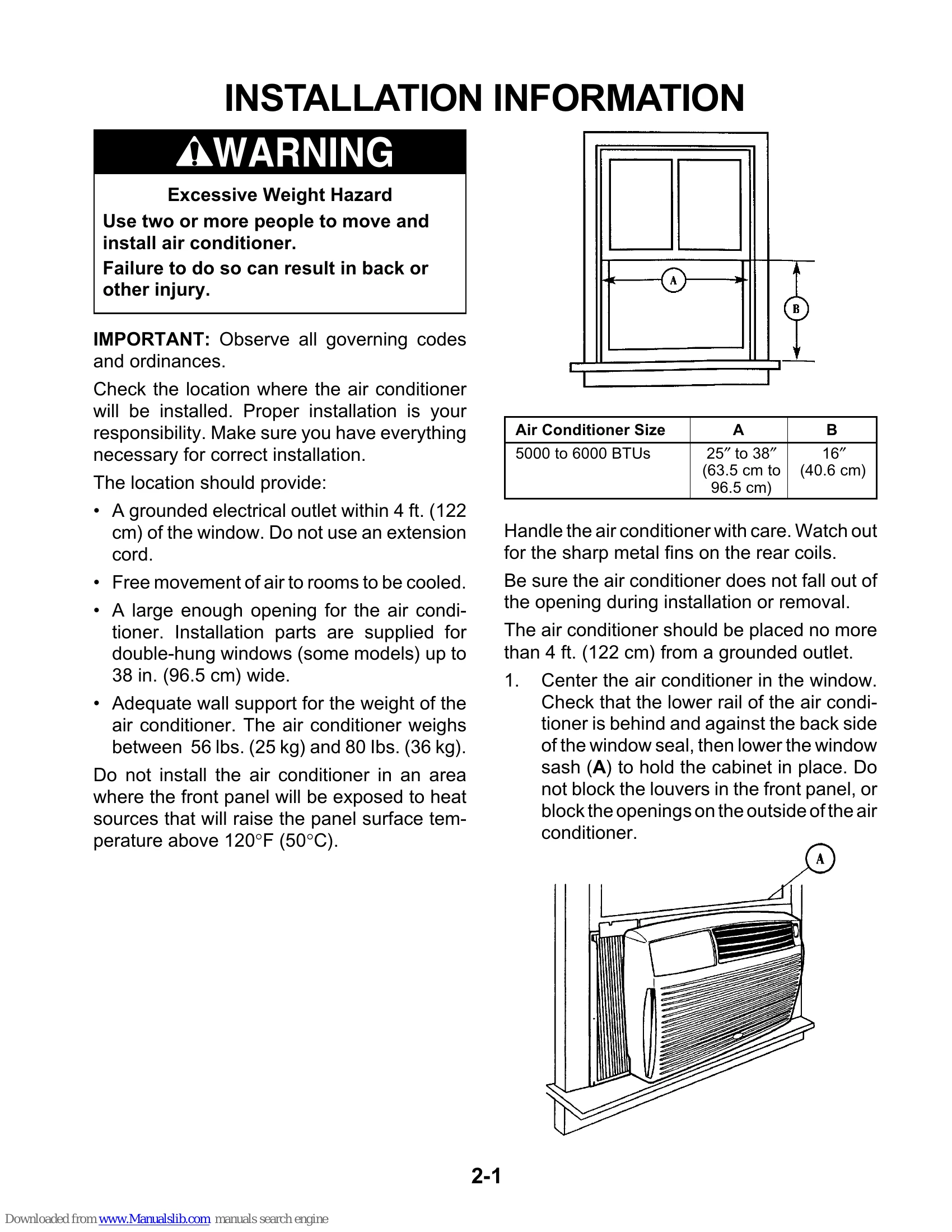

The manual provides detailed information for servicing 2003 5000 & 6000 BTU Whirlpool Air Conditioners. It covers safety precautions, component access, testing, diagnostics, troubleshooting, wiring diagrams, and installation tips. The goal is to enable technicians to properly diagnose and repair malfunctions, ensuring the unit returns to proper operational status. Specific sections detail component locations, removal procedures for parts like the fan motor, evaporator, and compressor, and how to test various components. Troubleshooting charts offer probable causes and corrections for common problems such as the unit not running, no cooling, or noisy operation. Wiring diagrams and strip circuits are provided for specific models to aid in electrical diagnostics. Additionally, a tech tip covers installing a condensate drain adapter.
Troubleshooting and error codes
| PROBLEM | PROBABLE CAUSE | CORRECTION |
|---|---|---|
| 1. Unit does not run. | 1a. No power to unit. | 1a. Check for power at receptacle, good plug contact, fuses of correct size and time delay types. (Have customer contact electrician if no power is available at receptacle.) |
| 1b. Low voltage. | 1b. Customer should contact a qualified electrician to correct this problem. | |
| 1c. Failed component or incorrect wiring. | 1c. Check all wiring and connections, thermostat, selector switch, or control. | |
| 2. Fan motor runs, compressor does not run. | 2a. Incorrect power supply voltage. | 2a. Check for proper voltage. |
| 2b. Failed component or incorrect wiring. | 2b. Check all wiring connections, overload, compressor, capacitor, selector switch, or control. | |
| 3. Compressor runs, fan motor does not run. | 3a. Blower wheel or fan blade binding. | 3a. Check for proper clearance. |
| 3b. Incorrect wiring. | 3b. Check all wiring. | |
| 3c. Motor windings shorted or motor shaft stuck, open selector switch, defective control. | 3c. Check for open or shorted motor windings, open selector switch, or control. | |
| 4. No cooling, compressor and fan motor running. | 4a. Airflow restriction. | 4a. Check for airflow through condenser and evaporator. |
| 4b. Sealed system problem. | 4b. Check sealed system for loss of refrigerant or restrictions. | |
| 5. Insufficient cooling, compressor and fan motor running. | 5a. Improper airflow. | 5a. Clean or replace air filter. Check for air passage restriction or obstruction. Check for dirty condenser, or evaporator. |
| 5b. Sealed system problem. | 5b. Check sealed system for loss of refrigerant or restrictions. | |
| 5c. Operating 60 Hz unit on 50 Hz current. | 5c. Advise customer that the unit should be operating on a 60 Hz electrical supply. | |
| 5d. Low voltage. | 5d. Check power supply (see 1b). | |
| 5e. Improper seals. | 5e. Insulating seals out of place or missing on unit. Doors or windows open. | |
| 5f. Improper use/size for area to be cooled. | 5f. Excessive load. Advise customer if load is excessive, or installation is incorrect, or inadequate. Instruct on proper operation of controls. | |
| 5g. Fan speed too slow. | 5g. Check for wrong motor, blower wheel, or fan blade. Check for binding of fan blade, blower wheel, or motor shaft. Check for low voltage and correct capacitor. | |
| 6. Compressor stops and starts. Too short running time. | 6a. Incorrect voltage. | 6a. Check for proper voltage. |
| 6b. Temperature control set too warm. | 6b. Instruct customer. | |
| 6c. Failed thermistor or thermostat. | 6c. Check thermistor by placing it in ice water and check resistance (see chart on page 4-1). | |
| 6d. Failed compressor, controls for compressor, or incorrect wiring. | 6d. Check compressor windings, all wiring, overload and capacitor for shorts. | |
| 6e. Fan motor too slow or condenser airflow blocked. | 6e. Check for wrong motor, blower wheel, or fan blade. Check for low voltage, binding of fan blade, blower wheel, or motor bearings. | |
| 6f. Condenser blocked. | 6f. Clean condenser. | |
| 7. House circuit tripping. | 7a. Incorrect fuse or breaker. | 7a. Check for proper fuse or breaker. Check amp draw. |
| 7b. Failed component or incorrect wiring. | 7b. Check wiring and connections. Check operation of all components. | |
| 8. Noisy operation. | 8a. Loose parts. | 8a. Check fan blades, cabinet, washers, tubing contact or vibration, or loose screws. |
| 8b. "Pinging" sound noticed as drops of water condensate hit fan blade. | 8b. Normal operation. | |
| 8c. Mounting area not firm. | 8c. Add support kit or improve installation. | |
| 8d. Compressor could be overloaded due to high ambient temperatures, or airflow restriction. | 8d. Loose internally, inadequate lubrication, improper voltage, remove airflow blockage. | |
| 8e. Fan motor. | 8e. Fan blades loose or rubbing, bad bearing, or fan out of balance. | |
| 8f. Compressor mounting nuts loose. | 8f. Tighten compressor nuts slightly to remove vibration transmission. | |
| 9. Evaporator frosting up. | 9a. Low outside air temperature (below 65°F). | 9a. Instruct customer that operation at ambient temperatures below 65°F is not considered a normal requirement of the unit. Adjust the controls to a warmer setting. |
| 9b. Thermistor failed. | 9b. Check thermistor by placing it in ice water and check resistance (see chart on page 4-1). | |
| 9c. Improper airflow. | 9c. Clean or replace air filter. Check for obstructed or restricted air passage, dirty evaporator and blower wheel loose, or missing seals. | |
| 9d. Fan motor slow. | 9d. Check for binding of fan blade, blower wheel, or motor bearings. Use low fan speed and instruct the customer. | |
| 10. Remote control does not operate unit. | 10a. Batteries dead. | 10a. Check that unit operates manually at control panel. If it does, replace batteries in remote. |
| 10b. Remote failed. | 10b. Replace remote control. | |
| 11. Moisture dripping into room. | 11a. Extreme humidity. | 11a. Advise customer of possible sweating formations under abnormal conditions. Check and improve all possible seals. |
| 11b. Inadequate seal. | 11b. Check and improve all sealed areas. | |
| 11c. Improper level. | 11c. Check for proper side-to-side level of unit. Check for 1/2" rear slope (or 1 full bubble) on spirit level. | |
| 11d. Styrofoam shield under evaporator coil broken or missing (see photo, on page 3-14). | 11d. Replace styrofoam shield. | |
| 12. Excess condensation running outside. | 12a. Extreme humidity. | 12a. This condition is normal in areas of extreme humidity. |
