Brand:
Whirlpool
Category: Dryers
Document Type: Manual
Language: EN

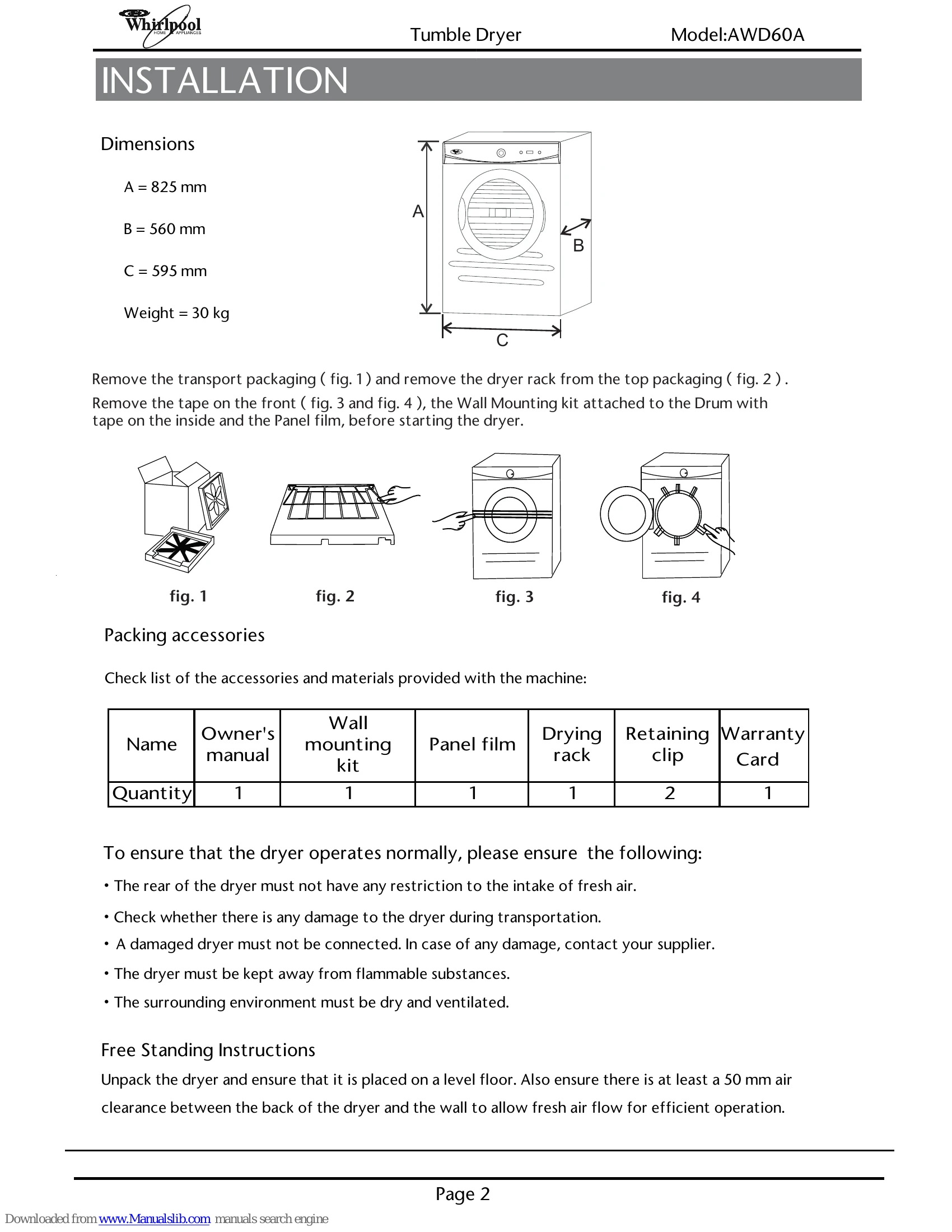

Manual for AWD60A
Uploaded: Nov. 21, 2025, 7:05 p.m.
Warranty Information
None
1. Turning on power: Plug into an appropriate socket and turn on power (220-240V/50Hz).
2. Laundry loading: Check fabric labels. Do not dry items unsuitable for dryers. Spin laundry dry and place evenly in the drum.
3. Setting drying time: Turn program knob to set optimal time.
4. Delay setting: Set a start time between 1 and 12 hours.
5. Program operation: Touch Start/Pause to begin.
6. Program completion: Dryer enters cool air cycle. "End" displays. Remove laundry promptly. Anti-crease cycle runs for 60 mins if not removed.
7. Turning off: Turn knob to "OFF" and switch off at socket. Clean filter after each load.
Troubleshooting and error codes
| PROBLEM | POSSIBLE CAUSE |
|---|---|
| The dryer does not start | Is the dryer plugged in? Is the power on? Is the door closed properly? Has a drying program been set? Has the start/pause button been pressed? |
| The drying result is not good | Was the correct drying program set? Is the filter screen clean? Did the amount of the loaded laundry exceed the rated load? Was the loaded laundry spun dry? Did the laundry become twisted whilst drying? |
