Service Manual for Whirlpool AKM160/IX Gas Cooktop

This manual provides technical data, procedures for maintenance, and repair of the Whirlpool AKM160/IX Gas Cooktop. It covers topics such as gas leaks, gas jet replacement, flame adjustment, hob removal, gas valve replacement and greasing, ignition component replacement, burner base removal, and circuit diagrams. It also includes an exploded view of the cooktop and a spare parts list.

Key Procedures:

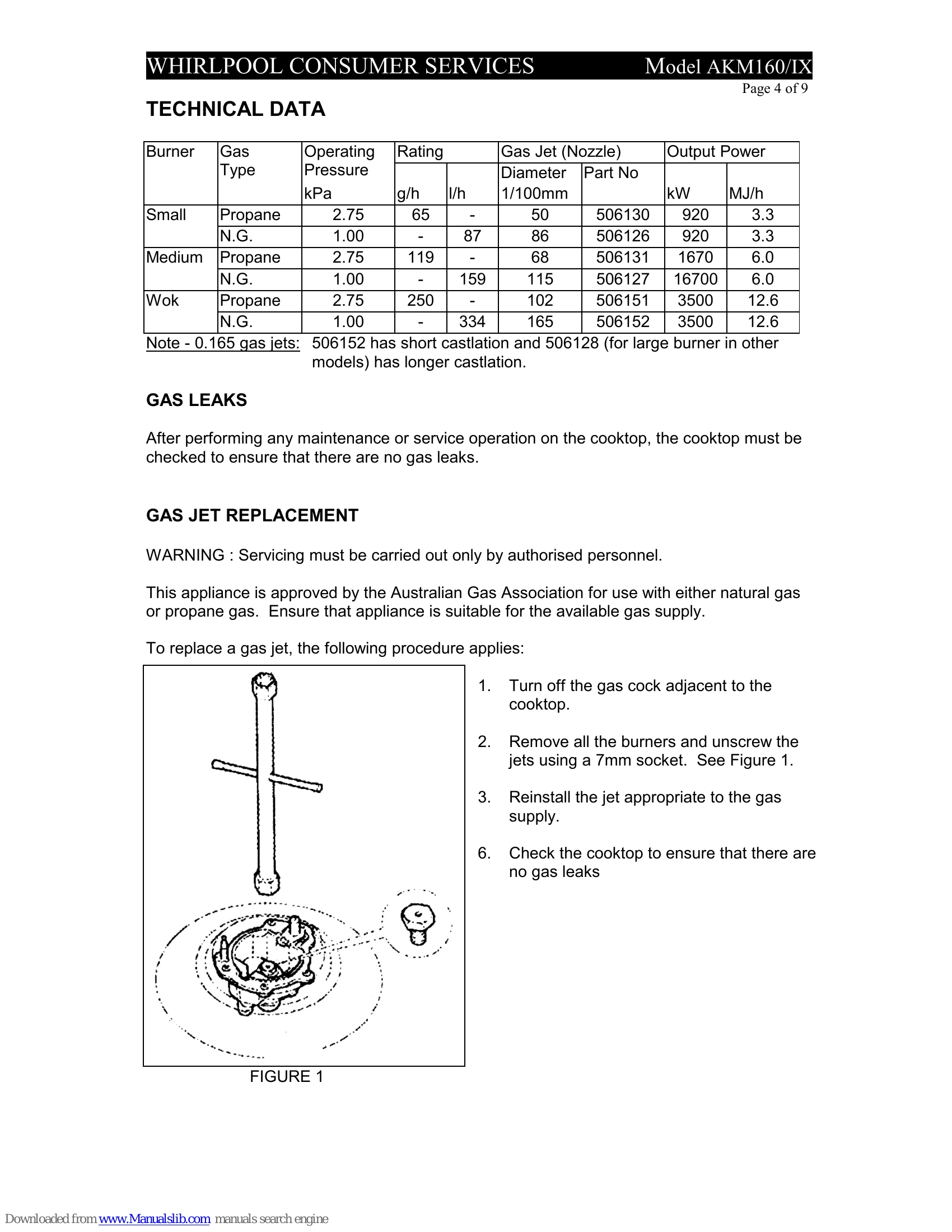

  • Gas Jet Replacement: Turn off gas, remove burners, unscrew jets with a 7mm socket, replace with appropriate jet, and check for leaks.
  • Flame Adjustment: Set control knob to minimum, remove knob, adjust screw in gas valve base until flame bead is ~4mm long, ensure flame doesn't extinguish when adjusting knob quickly. For propane, screw in fully. Check for leaks.
  • Hob Removal: Remove screws holding hob to base, lift hob. To remove base from benchtop, isolate gas/electric, release clamps.
  • Ignition Component Replacement: Remove hob, replace ignition pack by freeing tabs, use push-on connections. Replace spark plugs by removing securing screws/circlips. Reassemble carefully, check operations and for leaks.

This manual is intended for qualified technicians only.

Troubleshooting and error codes

Problem Possible Cause Solution
Gas Leaks Improper installation or component failure Check all connections and components after service operations. Contact qualified service personnel if leaks are detected.
Ignition Issues Faulty ignition pack, spark plug, or wiring Refer to "Ignition Component Replacement" section. Ensure wiring is correct and components are properly seated.
Flame too high/low Incorrect gas jet or improper flame adjustment Verify correct gas jet is installed for the gas type. Adjust flame as per "Flame Adjustment" instructions.
Burners not lighting Blocked burner ports, faulty ignition, or gas supply issue Clean burner ports, check ignition system, ensure gas supply is on and correct.
Gas valves difficult to operate Sticking or need for lubrication Refer to "Greasing the Gas Valves" instructions.
