Manual for SC8900EMH

Manual for SC8900EMH

Brand: Whirlpool logo Whirlpool

Category: Gas Cooktop

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 7:12 p.m.

Manual Publish Date: 1984-01-01

Warranty Information

Proof-of-purchase is required for in-warranty service.

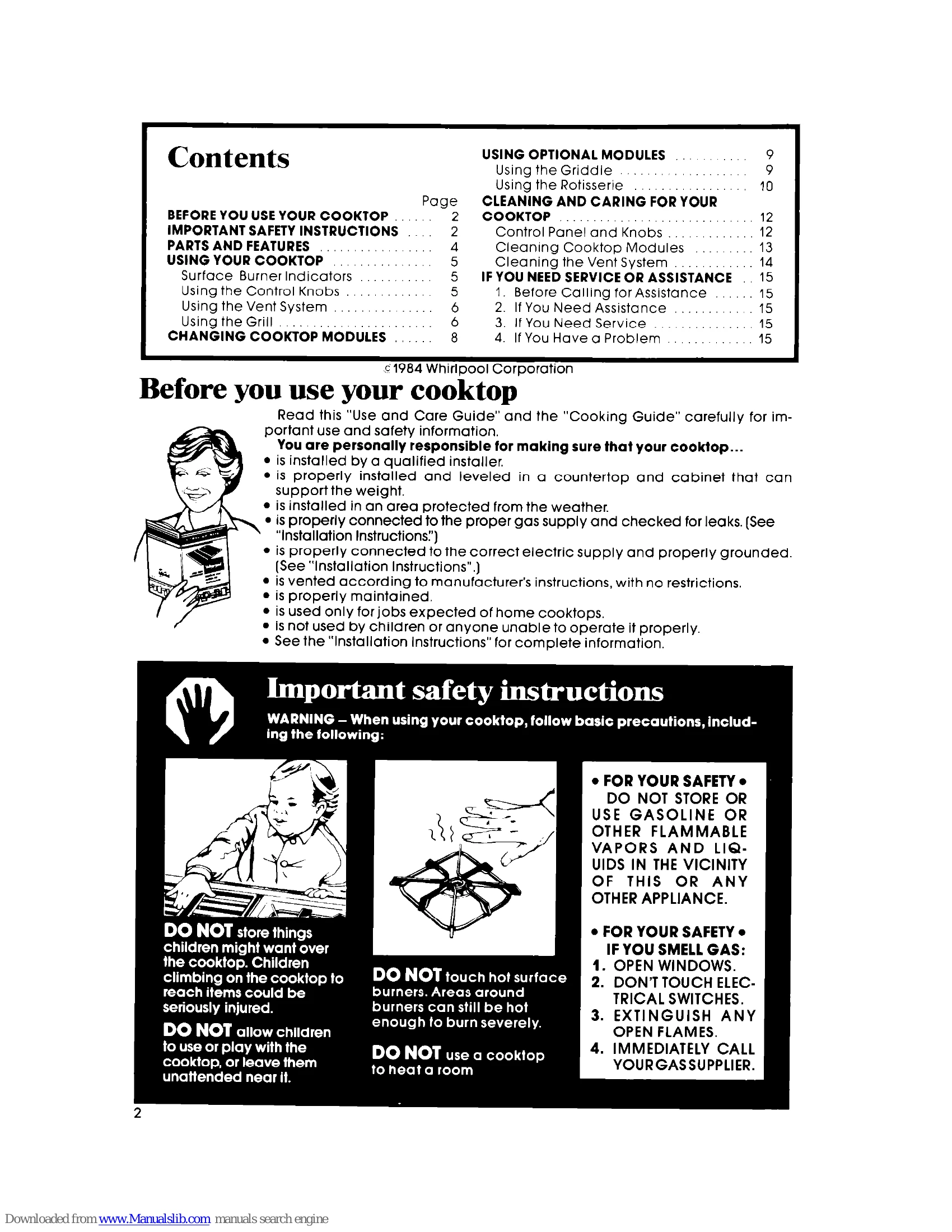

Before you use your cooktop

Read this "Use and Care Guide" and the "Cooking Guide" carefully for im- portant use and safety information.

You are personally responsible for making sure that your cooktop...

  • is installed by a qualified installer.
  • is properly installed and leveled in a countertop and cabinet that can support the weight.
  • is installed in an area protected from the weather.
  • is properly connected to the proper gas supply and checked for leaks.
  • is properly connected to the correct electric supply and properly grounded.
  • is vented according to manufacturer's instructions, with no restrictions.
  • is properly maintained.
  • is used only for jobs expected of home cooktops.
  • is not used by children or anyone unable to operate it properly.

Important safety instructions

WARNING - When using your cooktop, follow basic precautions, including the following:

  • DO NOT store things children might want over the cooktop.
  • DO NOT allow children to use or play with the cooktop, or leave them unattended near it.
  • DO NOT touch hot surface burners. Areas around burners can still be hot enough to burn severely.
  • DO NOT use a cooktop to heat a room.
  • FOR YOUR SAFETY. DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
  • FOR YOUR SAFETY • IF YOU SMELL GAS: 1. OPEN WINDOWS. 2. DON'T TOUCH ELECTRICAL SWITCHES. 3. EXTINGUISH ANY OPEN FLAMES. 4. IMMEDIATELY CALL YOUR GAS SUPPLIER.

Using your cooktop

Surface burner indicators show the surface burner or module operated by that control knob.

Control knobs must be pushed in, then turned to the LITE position. The clicking sound is the ignition sparking.

To stop the clicking sound after the burner lights, turn the control knob back to a desired setting. The control knob has markings for HI, MED and LOW, however it can be set anywhere between HI and OFF. Do not cook with the control in the LITE position.

WARNING: If the flame should go out while cooking, or if there is a strong gas odor, turn the burners OFF. Wait five minutes for the gas odor to disappear, before relighting burner. If gas odor is still present, see safety note on page 2.

Troubleshooting and error codes

If you need service or assistance, we suggest you follow these four steps:
1. Before calling for assistance... Performance problems often result from little things you can find and fix yourself without tools of any kind. If nothing operates: • Is the cooktop properly connected to gas and electrical supplies? (See Installation Instructions.) • Have you checked the main fuse or circuit breaker box? • Is the flow of combustion and/or ventilation air to the unit obstructed? Do not obstruct air flow to and around the unit. If burner fails to light: • Is the unit connected to electrical power? • Have you checked the main fuse or circuit breaker box? • Are burner ports clogged? (See page 13.) If burner flames are uneven: • Are burner ports clogged? (See page 13.) If burner flames lift off ports, are yellow, or are noisy when turned off: • The air/gas mixture may be incorrect. (Call for service.) If burners make a popping noise when ON: • Is the burner wet from washing? Let dry. If a control knob or knobs will not turn: • Did you push in before trying to turn? If cooking results aren't what you expected: Surface burners • Is the cooktop level? • Are the pans the size called for in the recipe? • Does the flame size fit the cooking utensil being used? (See page 6.) Grill • Did you leave space between the food items? • Was the grill preheated for the proper amount of time? • Was food partially frozen or very cold before grilling? Cooking time will be longer. If venting results aren't what you expected: • Is the exhaust fan turned ON? • Are the cooktop surface burners and module parts clean? They must be cleaned after each use. • Are the vent filters clean and in place? • Is the vent duct or outside opening blocked? • Is there a draft in the room where the cooktop is installed? • Has the meat fat been well trimmed?
2. If you need assistance* ... Call the Whirlpool COOL-LINE® service assistance telephone number. Dial free from: Continental U.S. (800)253-1301 Michigan (800)632-2243 Alaska & Hawaii (800)253-1121 and talk with one of our trained Consultants. The Consultant can instruct you in how to obtain satisfactory operation from your appliance or, if service is necessary, recommend a qualified service company in your area.
3. If you need service* ... Whirlpool has a nationwide network of franchised TECH-CARE® Service Companies. TECH-CARE service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States. To locate TECH-CARE service in your area, call our COOL-LINE service assistance telephone number (see Step 2) or look in your telephone directory Yellow Pages under: APPLIANCES-HOUSEHOLD- MAJOR-SERVICE & REPAIR OR ELECTRICAL APPLIANCES- MAJOR-REPAIRING & PARTS WHIRLPOOL APPLIANCES FRANCHISED TECH-CARE SERVICE SERVICE COMPANIES XYZ SERVICE CO 123 Maple 999-9999 WASHING MACHINES. DRYERS & IRONERS-SERVICING WHIRLPOOL APPLIANCES FRANCHISED TECH-CARE SERVICE SERVICE COMPANIES XYZ SERVICE CO 123 Maple 999-9999 WHIRLPOOL APPLIANCES FRANCHISED TECH-CARE SERVICE SERVICE COMPANIES XYZ SERVICE CO 123 Maple 999-9999
4. If you have a problem* ... Call our COOL-LINE service assistance telephone number (see Step 2) and talk with one of our Consultants, or if you prefer, write to: Mr. Robert F. Gunts, Vice President Whirlpool Corporation Administrative Center 2000 US-33 North Benton Harbor, MI 49022 * If you must call or write, please provide: model number, serial number, date of purchase, and a complete description of the problem. This information is needed in order to better respond to your request for assistance. FSP is a registered trademark of Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a replacement part for your Whirlpool appliance. FSP replacement parts will fit right and work right, because they are made to the same exacting specifications used to build every new Whirlpool appliance.
