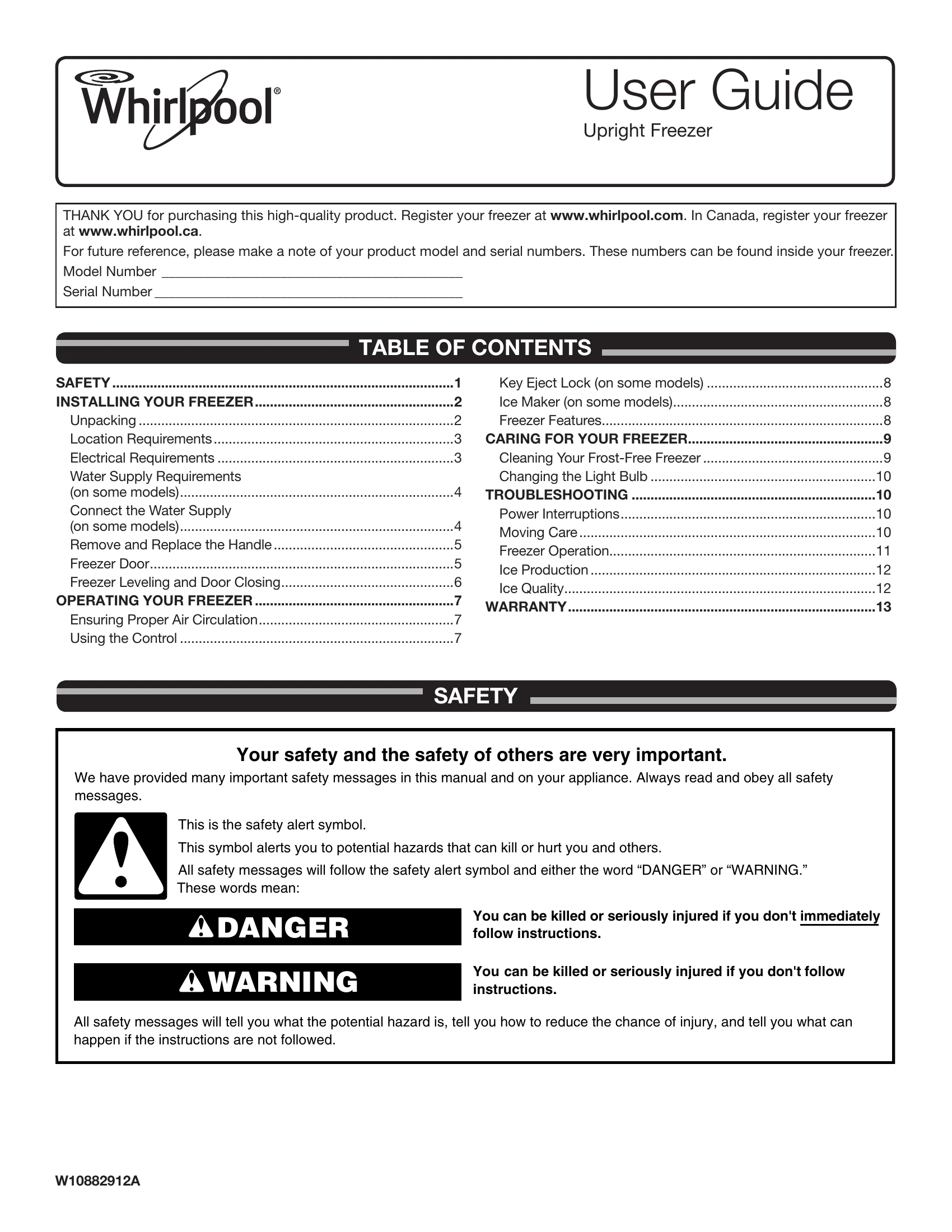

Manual for WZF34X20DW01

Manual for WZF34X20DW01

Brand: Whirlpool logo Whirlpool

Category: Refrigerators

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 6:31 p.m.

Warranty Information

One year limited warranty covering defects in materials and workmanship, with specific exclusions.

Operating Your Freezer

Ensure proper air circulation by not blocking air vents. Keep foods tightly wrapped to prevent odor transfer and drying out. The temperature control is located at the top front of the freezer compartment and is preset at the factory. Allow the freezer to cool for 6-8 hours before filling. The compressor will run constantly until cooled, then cycle as needed. The Fast Freeze feature can be activated for adding large amounts of unfrozen food.

Key Features:

  • Temperature Control: Adjust by pressing TEMP SETTING.
  • Cooling On/Off: Press and hold TEMP SETTING for 3 seconds.
  • Fast Freeze: Press TEMP SETTING until all snowflake positions are illuminated.
  • Over Temperature Alert: Sounds and flashes red light if temperature rises above 19°F (-7°C).
  • Door Ajar Alarm: Sounds if the door is open for 5 minutes or longer.
  • Key Eject Lock: For locking/unlocking the freezer.
  • Ice Maker: Automatic shutoff when bin is full.

Troubleshooting and error codes

PROBLEM RECOMMENDED SOLUTIONS
Freezer Will Not Operate Check that the freezer is not running an Automatic Defrost cycle. Check that it is plugged into a grounded 3 prong outlet. Check that the temperature control is turned on. Replace the fuse or reset the circuit breaker. NOTE: If problems continue, contact an electrician.
Lights Do Not Work Check that it is plugged into a grounded 3 prong outlet. Check that the light bulb is tight in the socket and is not burned out.
Water in Defrost Drain Pan It is normal for water to drip into the defrost drain pan when freezer is defrosting. When humidity is high, it is normal for water in the defrost pan to take longer to evaporate.
Motor Seems to Run Too Much Check that door closes properly. Defrost and clean the freezer to remove excessive frost. Adding a large amount of food warms the freezer causing the freezer to run longer to cool back down. If this is the situation, wait approximately 6 to 8 hours to allow the freezer to reach the correct temperature. Remove all items out at one time, keep food organized, and close door as soon as possible. Check that the door gasket is sealed all the way around. If not, contact a qualified person or technician. Check that space around freezer meets air circulation requirements. See "Location Requirements." NOTE: If none of the above, your new freezer will run longer than your old one due to its high-efficiency motor.
Temperature Is Too Warm Check that air vents are clear. See "Ensuring Proper Air Circulation" for air vent locations. Remove all items out at one time, keep food organized, and close door as soon as possible. Adding a large amount of food warms the freezer causing the freezer to run longer to cool back down. Check that the temperature control is set correctly for surrounding conditions. Check that there are no food packages blocking the door. On some models, check that the shelves and basket are in the correct position. Check that gaskets are clean. See the "Caring for Your Freezer" section. Check that the freezer is stable. See "Freezer Leveling and Door Closing."
The Door Will Not Close Completely or Is Difficult To Open Check that there are no food packages blocking the door. On some models, check that the shelves and basket are in the correct position. Check that gaskets are clean. See the "Caring for Your Freezer" section. Check that the freezer is stable. See "Freezer Leveling and Door Closing."
Freezer Makes Loud Buzzing/Clicking Sound If the freezer has recently been plugged in or turned on following a defrost or product move, or if there has been an extended power failure, turn off the temperature alarm for the next 24 hours. Adding a large amount of food warms the freezer. It can take several hours for the freezer to return to normal temperature. Turn the temperature alarm off for the next 24 hours.
