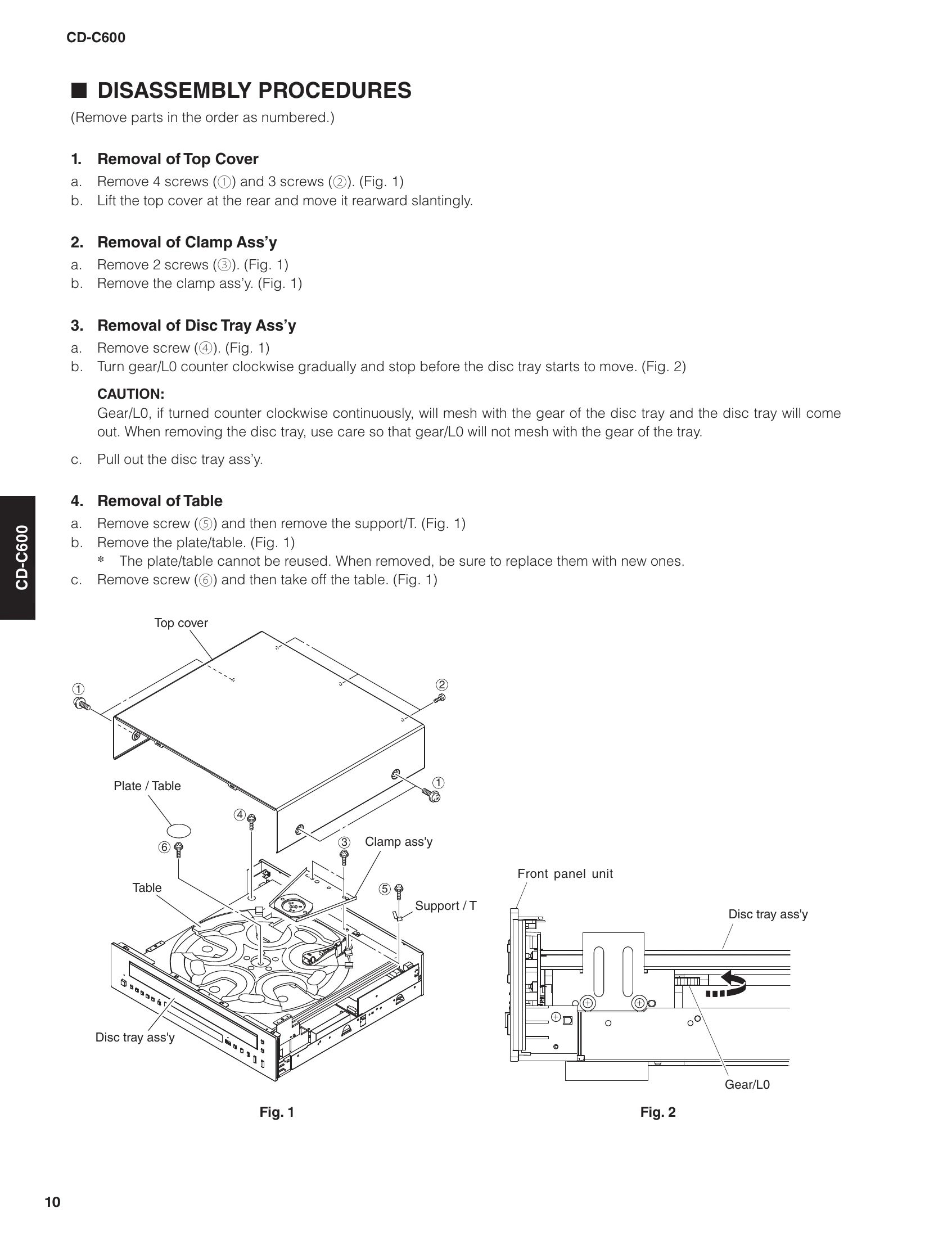

Standard Operation Chart

  • Press the "OPEN/CLOSE" key.
  • Forced feed return operation.
  • Clamp down operation.
  • Disc table reset. Tray open.
  • Load a disc in DISC 1.
  • Press the "PLAY" key or push the tray.
  • Tray closed. Table rotate.
  • Disc search.
  • Disc mechanism unit clamped up.
  • FEED LIMIT switch search.
  • Laser on.
  • Disc scan.
  • Focus gain rough adjustment.
  • Focus search operation.
  • Focus lock servo on.
  • Spindle motor accelerated.
  • Tracking servo on.
  • Disc servo on.
  • VCO lock.
  • Tracking gain rough adjustment.
  • Tracking balance adjustment. (only tray open/close)
  • Focus balance adjustment.
  • *TOC READ * ~ Data fetch cycle
  • ~ PLAY ~
  • ~ PLAY ~
  • ~ STOP ~
