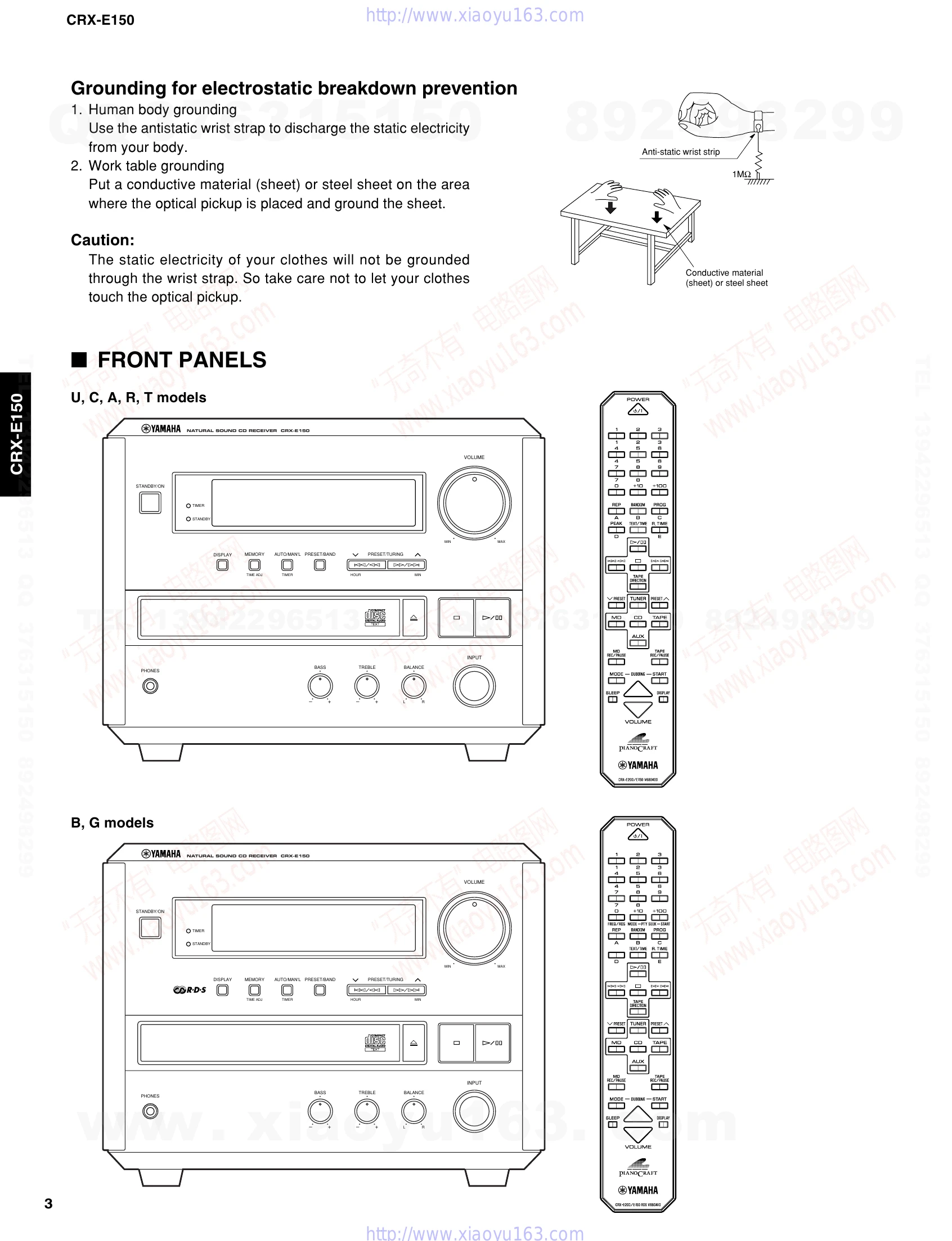

Manual for CRX-E150/NX-E150
Uploaded: Nov. 21, 2025, 6:33 p.m.
This service manual provides information on operating and maintaining the YAMAHA CRX-E150/NX-E150 audio system. It covers system control, including power on/off processing, function selection, timer operations, and auto power on/off. It also details CD operations like test modes and standard operation charts, as well as troubleshooting for CD errors and system malfunctions.
Troubleshooting and error codes
| Error No. | Status | Contents |
|---|---|---|
| E-10 | PLAY | CD fails in the disc data reading after the state shift. |
| E-20 | SCAN | |
| E-30 | PAUSE | |
| E-70 | SEARCH | |
| E-11 | PLAY | CD fails in the disc data reading. |
| E-21 | SCAN | |
| E-31 | PAUSE | |
| E-73 | LOAD | CD fails in the TOC data reading. |
| E-04 | LOAD, SEARCH | Tracking servo is not effective at the DISC MOTOR SERVO PLL. |
| E-14 | LOAD, SEARCH | Disc motor servo PLL is not effective. |
| E-35 | CD fails in FOCUS SEARCH. | |
| E-06 | SEARCH, PLAY, PAUSE | CD fails in escaping from the LEAD-IN area. |
| E-47 | SEARCH | The inner limit switch does not operate at the FEED INNER CONTROL. |
| E-57 | STOP | |
| E-77 | LOAD, EJECT | |
| E-18 | PLAY | CD fails in recovery from the FOCUS OUT. |
| E-28 | SCAN | |
| E-38 | PAUSE | |
| E-48 | SEARCH | |
| E-68 | LOAD | |
| E-AC | Close switch does not operate at the TRAY CLOSE CONTROL. | |
| E-AD | Open switch does not operate at the TRAY OPEN CONTROL. | |
| MN ERR | MN35511 does not give response of SENSE with resetting. |
