Brand: YAMAHA
Category: Audio/Video
Document Type: Parts/Service
Language: EN

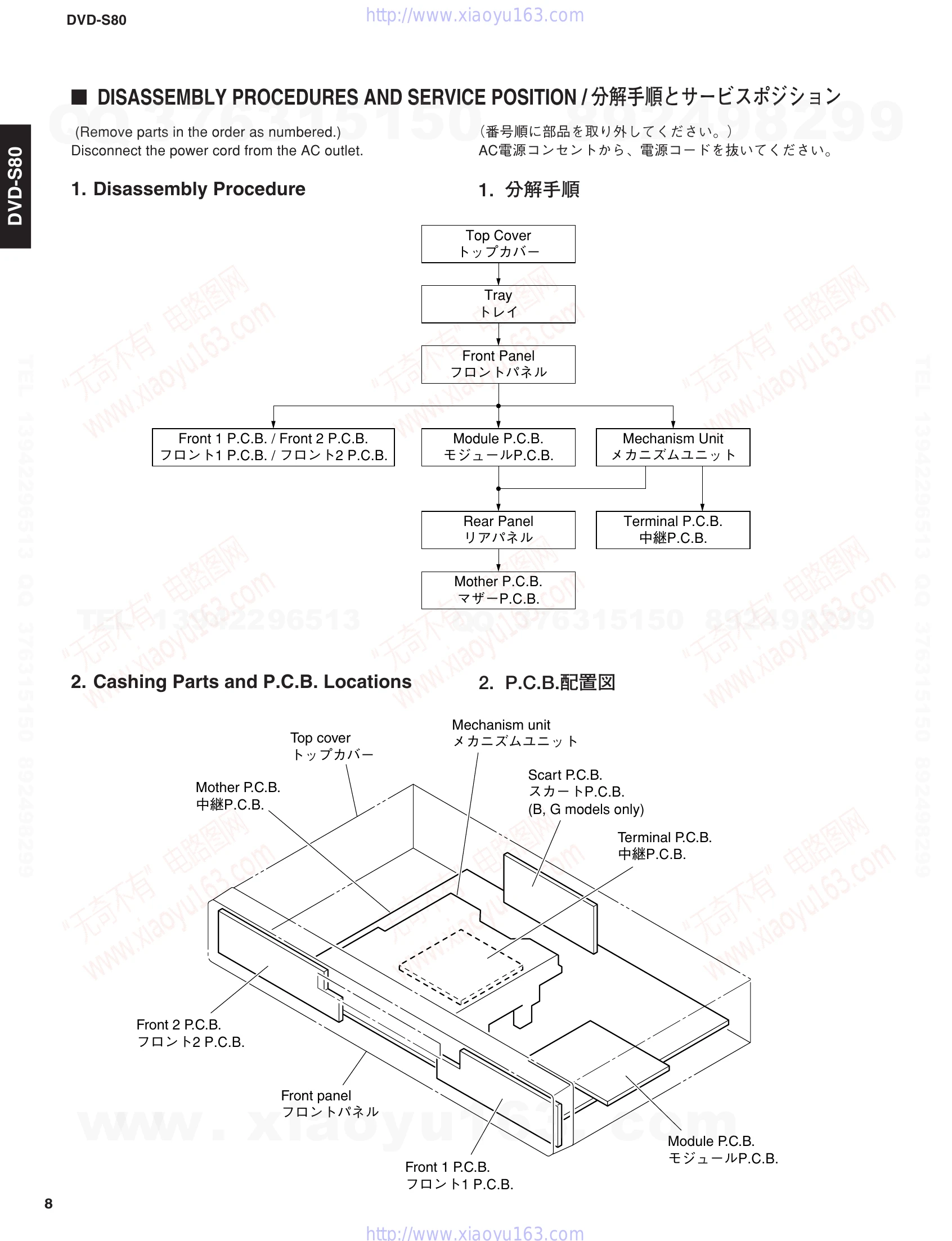

Parts/Service for DVD-S80
Uploaded: Nov. 21, 2025, 7:39 p.m.
Warranty Information
No specific warranty period is mentioned in this service manual.
- To Service Personnel: Critical components marked with ⚠ must be replaced with parts of equal specification to the originals.
- Leakage Current Measurement (120V Models): Verify insulation of all exposed conductive surfaces. Leakage current must not exceed 0.5mA. Test with AC plug in both polarities.
- Laser Safety: Do not attempt to readjust, disassemble, or repair the laser pick-up unless specified. Keep eyes and skin more than 30 cm away from the laser pick-up unit during servicing. Do not stare at the laser beam.
- Electro Static Discharge Prevention: Static discharges can destroy expensive components. Ground yourself to the ground buss in the unit.
- Handling Optical Pickup: Both ends of the laser diode are short-circuited for protection. Remove short circuit according to the manual. Do not use a tester to check the laser diode. Handle the traverse unit gently; flexible cable lines may break. Do not adjust the semi-fixed resistor for laser power.
- Self-Diagnosis Functions: The unit includes an optical pickup self-diagnosis function and a tilt adjustment check function. Use these for effective diagnosis and adjustment before replacing the optical pickup.
Troubleshooting and error codes
| Error Code | Description of error | Supplementary explanation | Faulty point 1 | Faulty point 2 | Faulty point 3 | Faulty point 4 |
|---|---|---|---|---|---|---|
| U11 | Focus error | OPU | ||||
| H01 | Tray loading error | Spindle servo, DSC (IC2001) SP motor, CLV servo error | OPU | ADSC (IC2001) | CPU (IC6201) | Servo drive |
| H02 | Spindle servo error | OPU | ADSC (IC2001) | FEP (IC5201) | Servo drive | |
| H03 | Traverse servo error | OPU | ADSC (IC2001) | FEP (IC5201) | EEPROM (IC6303) | |
| H04 | Tracking servo error | OPU | ADSC (IC2001) | FEP (IC5201) | Servo drive | |
| H05 | Seek error | OPU | ADSC (IC2001) | FEP (IC5201) | Servo drive | |
| H06 | Power supply error | The power cannot be turned off due to a communication error between the panel control and the system control. | Disc | FEP (IC5201) | ODC (IC2001) | |
| F500 | DSC error | DSC is stopped due to occurrence of a servo error. (startup, focus error, etc.) | OPU | ADSC (IC2001) | CPU (IC6201) | |
| F501 | DSC not ready | Communication error between DSC and system control (communication failure due to DSC not at work) | OPU | ADSC (IC2001) | FEP (IC5201) | Servo drive |
| F502 | DSC time out error | To be handled in the same way as F500 | OPU | ADSC (IC2001) | FEP (IC5201) | Servo drive |
| F503 | DSC communication failure | Communication error (A communication command was transmitted but an error occurred.) | Disc | EEPROM (IC6303) | ||
| F505 | DSC Attention Error | The disc is upside down, TOC cannot be read, unusable disc | Disc | FEP (IC5201) | ODC (IC2001) | |
| F506 | Invalid media | Disc | FEP (IC5201) | ADSC (IC2001) | ODC (IC2001) | |
| F600 | No control data is obtainable due to a demodulation error | Operation is stopped because the navigation data cannot be obtained due to a faulty condition of the demodulation system | ODC (IC2001) | FEP (IC5201) | ADSC (IC2001) | |
| F601 | Undefined sector ID is requested. | Operation is stopped due to a request for access by an abnormal ID data. | ODC (IC2001) | FEP (IC5201) | ADSC (IC2001) | |
| F602 | LEAD-IN is not obtainable due to demodulation error. | LEAD IN data cannot be read. | ODC (IC2001) | FEP (IC5201) | ADSC (IC2001) | |
| F603 | KEYDET is not obtainable due to a demodulation error | The CSS data of the disc cannot be obtained. | ODC (IC2001) | |||
| F610 | ODC abnormal | Issuing a command is not permitted. | ODC (IC2001) | |||
| F611 | 6626 QCODE don't read Error | No seek address is obtainable in the CD system. | ODC (IC2001) | |||
| F612 | No CRC OK is issued for a certain time. | No ID data is obtainable in the DVD system. | ODC (IC2001) | |||
| F630 | No response is provided for the inquiry of | (Only when used internally) | ||||
| F631 | CPPM KEY DET is not usable until the end of the file. | The CPPM file system cannot be read due to a scratch, etc. | Disc | CPPM (*1) | ||
| F632 | CPPM-KEY-DET is not usable. | CPPM-KEY-DET is revoked or falsified. | Disc | EEPROM | CPPM | |
| Disc code | It is highly possible that disc code is violated when displaying the highlight. | Disc | ||||
| F103 | Illegal highlight position | Disc | ||||
| IIC error | ||||||
| F4FF | Forcible initialization failure (time-out) | EEPROM (IC6303) | CPU (IC6201) | FEP (IC5201) | ADSC (IC2001) | |
| Microprocessor error | ||||||
| F700 | MBX overflow | When sending a message back to Disc Manager | Firm bug | |||
| F701 | Message command does not end. | Next message was issued before replying to Disc Manager. | Firm bug | |||
| F702 | Message command is changed. | The message is changed before replying to Disc Manager. | Firm bug | |||
| F880 | Incorrect task number | When a message comes from non-existing task (error stop, firm bug correction required) | Firm bug | |||
| F890 | Message transmission is attempted while transmitting to AV task | A message is being transmitted to AV task (error stop, firm bug correction, etc.) | Firm bug | |||
| F891 | A message cannot be transmitted to AV task. | Transmission of a message to AV task is started. (error stop, firm bug correction required) | Firm bug | |||
| F893 | FROM is falsified. | FROM (IC6302) | CPU (IC6201) | Serial line | ||
| F894 | EEPROM abnormal | EEPROM (IC6303) | CPU (IC6201) | |||
| F8A0 | Message command is not correct. | Transmission of a message to AV task is started. (error stop, firm bug correction required) | Firm bug |
