Warranty Information
This product comes with a 2-year limited guarantee for European Economic Area (EEA) and Switzerland.

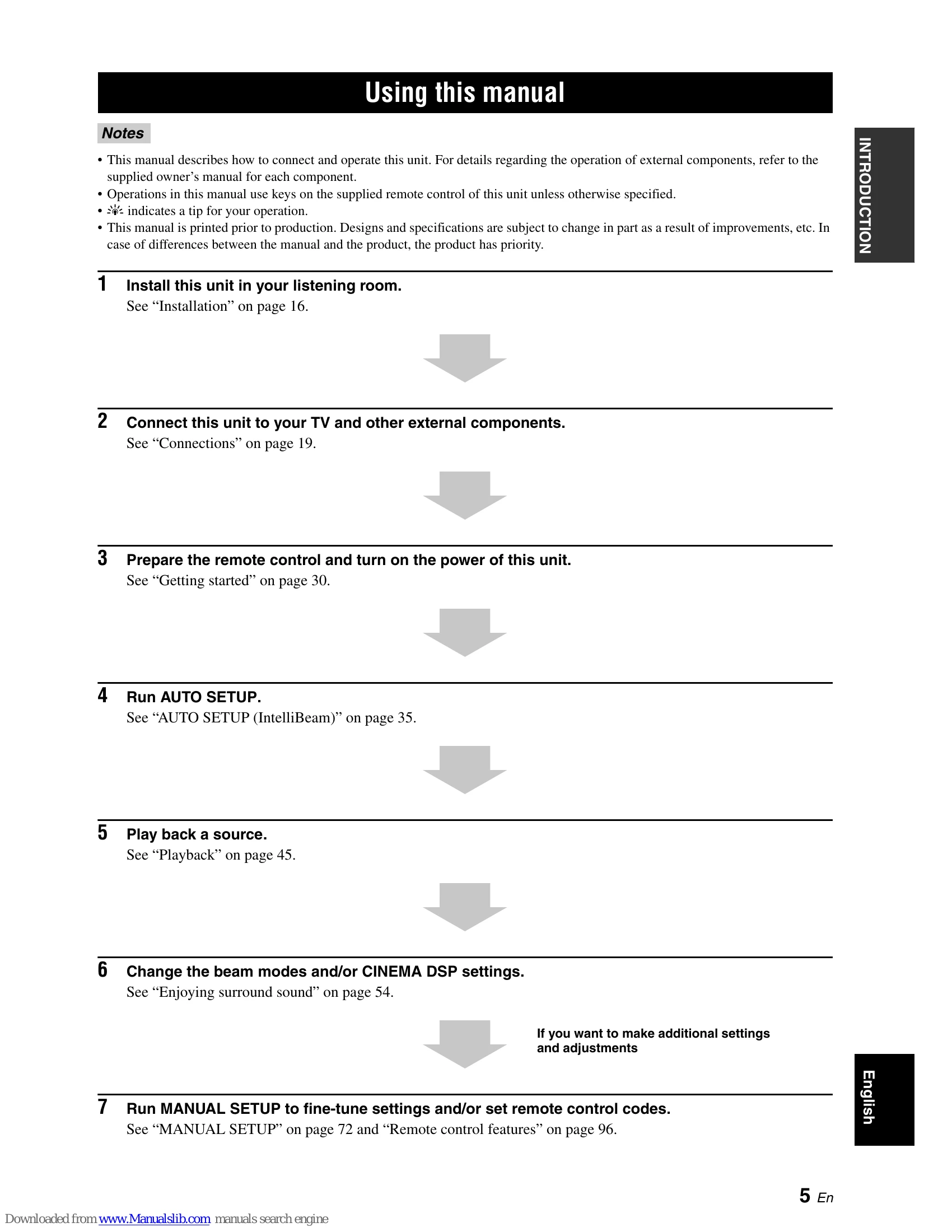

- Installation: Install the unit in your listening room, considering wall acoustics and room dimensions for optimal surround sound. Ensure adequate ventilation.
- Connections: Connect external components like your TV, DVD player, and subwoofer to the appropriate input/output jacks. Refer to page 21 for details.
- Setup: Insert batteries into the remote control and turn on the unit. Run the AUTO SETUP (IntelliBeam) using the included microphone for automatic sound beam and acoustic optimization.
- Playback: Select the desired input source and play back your audio or video content. Adjust volume and explore different sound modes (Beam modes, CINEMA DSP) for varied listening experiences.
- Advanced Operation: Fine-tune settings using MANUAL SETUP, adjust system parameters, and configure remote control functions for other components.
Troubleshooting and error codes
| Problem | Cause | Remedy | See page |
|---|---|---|---|
| General | |||
| This unit fails to turn on when STANDBY/ON is pressed, or enters the standby mode soon after the power has been turned on. | The AC power supply cable is not firmly connected to the AC wall outlet. | Connect the AC power supply cable firmly to the AC wall outlet. | 29 |
| This unit has been exposed to a strong external electric shock (such as lightning and strong static electricity). | Set this unit to the standby mode, disconnect the AC power supply cable, plug it back in after 30 seconds, and use it normally. | — | |
| This unit suddenly enters the standby mode. | The internal temperature becomes too high and the overheat protection circuitry has been activated. | Wait for about one hour for this unit to cool down and turn it back on. | — |
| The sleep timer has turned the unit off. | Turn on the power and play back the source again. | — | |
| No sound. | Incorrect input or output cable connections. | Connect the cables properly. If the problem persists, the cables may be defective. | 19 |
| No appropriate input source has been selected. | Select an appropriate input source with INPUT or the input selector buttons. | 45 | |
| The volume is turned down. | Turn up the volume. | 47 | |
| The sound is muted. | Press MUTE or VOLUME +/- to resume audio output and adjust the volume level. | 47 | |
| The sound suddenly goes off. | The signals this unit cannot reproduce (such as PCM signals with more than 96 kHz of sampling frequency) are being received from the source component. | Play a source whose signals can be reproduced by this unit. | — |
| The HDMI components connected to this unit do not support the HDCP copy protection standards. | Connect the HDMI components that support the HDCP copy protection standards. | 20 | |
| SUPPORT AUDIO is set to OTHER and HDMI audio signals are not being played back on this unit. | Set SUPPORT AUDIO to HTY-7030 in MANUAL SETUP | 82 | |
| No sound from the effect channels. | The sleep timer has turned this unit off. | Turn on the power and play back the source again. | — |
| You are playing back the source or program in the 2-channel stereo playback or My Beam mode. | Press one of the beam mode buttons on the remote control to select a multi-channel playback mode and play back the source or program once more. | 54 | |
| No sound from the center channel. | The output level of the center channel is set to minimum. | Raise the level of the center channel. | 84 |
| No sound from the surround channels. | The output level of the surround channels is set to minimum. | Raise the output level of the surround channels. | 84 |
| No sound from the subwoofer. | BASS OUT in SUBWOOFER SET is set to FRONT. | Select SWFR. | 78 |
| Distorted or too little bass sound. | The source does not contain low bass signals. | Set CROSS OVER correctly. | 78 |
| CROSS OVER in SUBWOOFER SET is set incorrectly. | Set CROSS OVER correctly. | 78 | |
| Too much bass sound. | One of the night listening enhancers is currently selected. | Turn off the night listening enhancers. | 67 |
| TruBass is currently turned on. | Turn off TruBass. | 79 | |
| The volume level of the subwoofer is too high. | Turn down the volume level of the subwoofer. | — | |
| Surround sound effects are insubstantial. | The listening room is not a regular shape. | Install this unit in a square or rectangular shaped room. | — |
| There is no wall in the path of the sound beam. | Try placing a flat object, such as a board, in the path of the sound beam. | — | |
| Dolby Digital or DTS sources cannot be played back. (Dolby Digital or DTS indicator does not light up in the front panel display.) | The connected component is not set to output Dolby Digital or DTS digital signals. | Make an appropriate setting following the operating instructions for your component. | — |
| The input mode is set to ANALOG. | Set the input mode to AUTO. | 87 | |
| There is noise interference when a subwoofer is not connected to this unit. | The protection circuitry was in operation because a source with strong bass elements was played back. | Turn down the volume level. | 47 |
| Select SWFR for BASS OUT. | 78 | ||
| Low-frequency sounds are distorted. | CROSS OVER in SUBWOOFER SET is set incorrectly. | Connect a subwoofer and adjust settings for SUBWOOFER SET. | 78 |
| On-screen display does not appear. | The OSD video pin cable is not connected properly. | Connect the cable properly. | 22 |
| This unit does not operate properly. | The internal microcomputer has been frozen by an external electric shock (such as lightning or excessive static electricity) or by a power supply with low voltage. | Disconnect the AC power supply cable from the outlet and plug it in again after about 30 seconds. | — |
| No sound is heard from the TV connected via HDMI. | The TV does not accept the multi-channel audio signals. | Convert the multi-channel audio signals to the 2-channel audio signals at the source component such as a DVD player. | — |
| There is noise interference from digital or high-frequency equipment. | "SUPPORT AUDIO" is set to "HTY-7030". | Set "SUPPORT AUDIO" to "OTHER". | 82 |
| This unit is too close to the digital or high-frequency equipment. | Move this unit farther away from such equipment. | — | |
| This unit does not output effect sounds properly. | The original source includes surround effects. | Disable the surround effect settings of this unit. | — |
| My Beam auto-adjust function does not work. | The listening room is too noisy. | Keep the listening room as quiet as possible. | — |
| The sound reflectivity of the listening room is too much. | Try manual-adjust function. Set REFLECTING to HI ECHO. | 62 | |
| The remote control may be operated outside of the remote control operation range. | The remote control functions within a maximum range of 6 m (20 ft) and no more than 45 degrees off-axis from the front panel. | 30 | |
| The function does not work properly because of the condition of the connected components. | Select My Beam and then try again. | 61 | |
