Parts/Service for PCY60

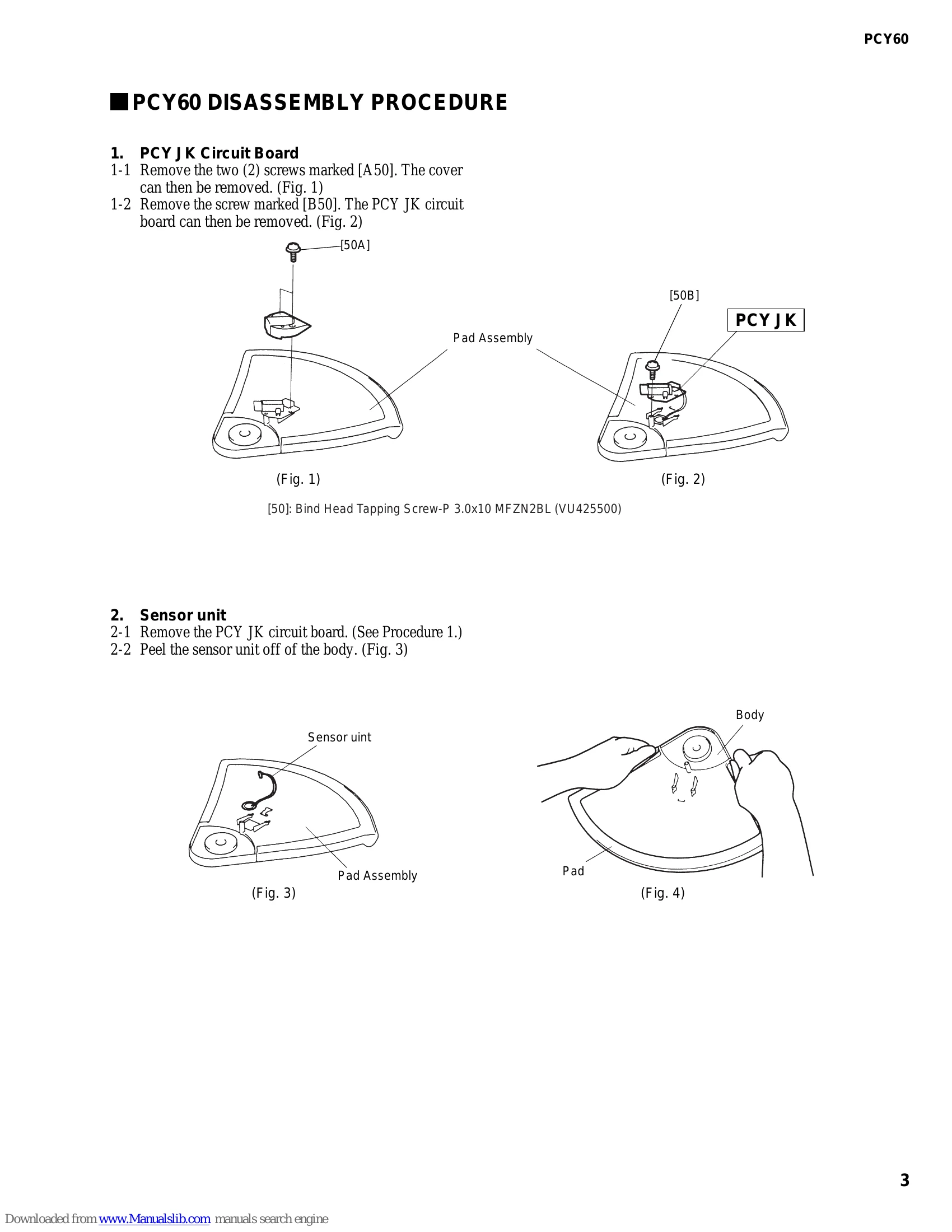

This service manual provides detailed information for the Yamaha PCY60 Cymbal Pad. It includes sections on specifications, disassembly procedures, circuit board details, circuit diagrams, and a parts list. The manual is intended for authorized Yamaha service personnel and covers the technical aspects of servicing and repairing the product. It emphasizes safety precautions, including handling of lead solder and static discharge prevention. The specifications section details the physical dimensions, weight, controls, output connectors, and included accessories. Disassembly instructions are provided with diagrams, guiding users through the process of accessing and removing components like the PCY JK circuit board and the sensor unit. The circuit board layout and a detailed circuit diagram are also included for troubleshooting and repair. Finally, a comprehensive parts list with reference numbers, part numbers, descriptions, and quantities is presented, aiding in component replacement.
