Manual for PW2000M

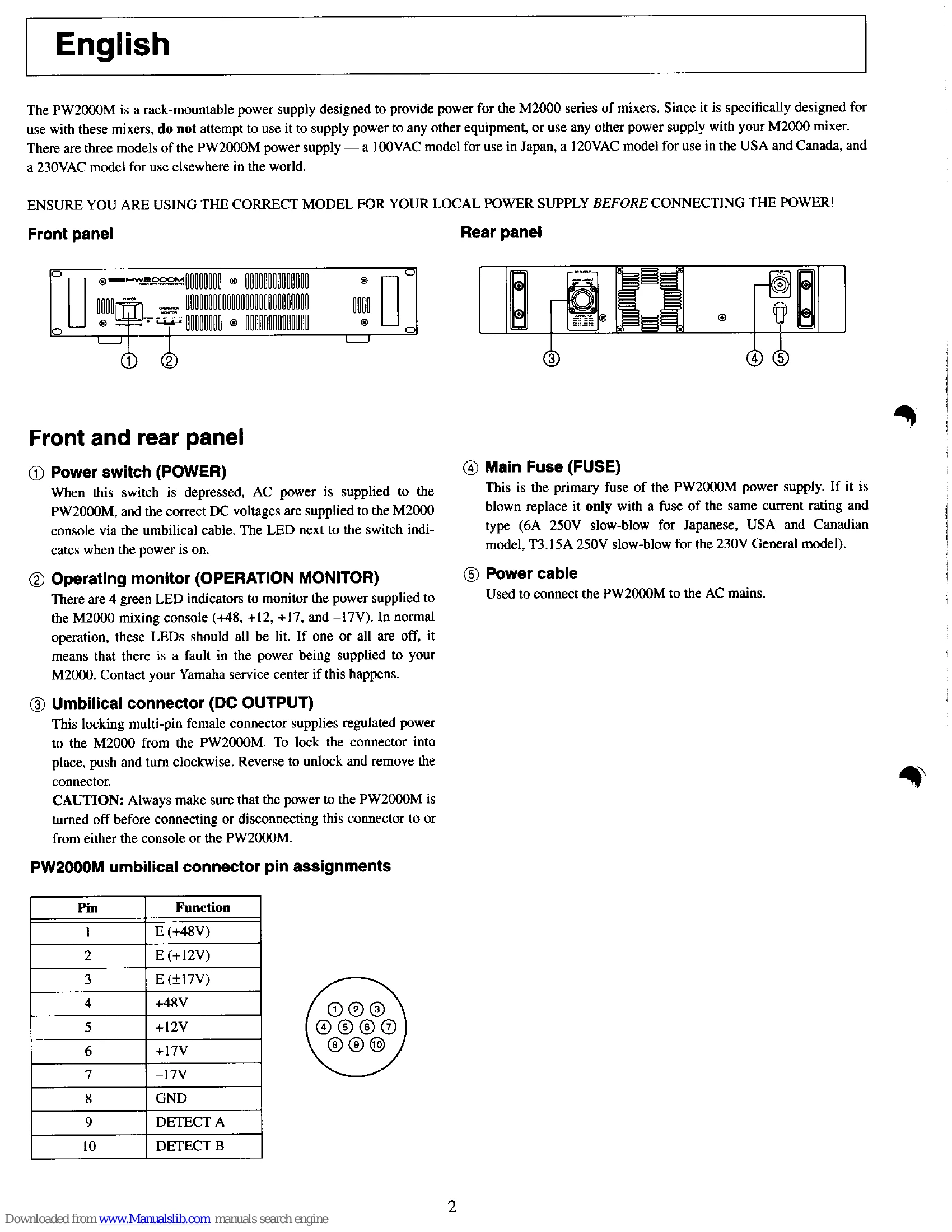

The PW2000M is a rack-mountable power supply designed for Yamaha M2000 series mixers. It provides DC power to the mixer via an umbilical cable. Key features include a power switch with an LED indicator, operating monitors (LEDs) for power status, an umbilical connector for DC output, and a main fuse. The unit comes in different voltage models (100VAC, 120VAC, 230VAC) for various regions. Proper ventilation is crucial for both shelf and rack mounting. Ensure the correct model is used for your local power supply before connecting. The umbilical connector pins provide various DC outputs, including +48V, +12V, ±17V, and GND.
