Manual for YSP-3000
Uploaded: Nov. 21, 2025, 7:29 p.m.
Warranty Information
Refer to the product's warranty card for specific warranty details.
Overview
The YSP-3000 Digital Sound Projector is designed to provide a multi-channel surround sound experience without the need for multiple speakers. It uses beam technology to direct sound around the room, creating a 5.1-channel surround effect. Key features include:- Digital Sound Projector technology for surround sound
- Multiple beam modes (5 Beam, Stereo plus 3 Beam, 3 Beam, My Surround, My Beam)
- Cinema DSP for dramatic sound impact
- HDMI connectivity
- Versatile remote control with macro capability
- AUTO SETUP (IntelliBeam) for automatic acoustic optimization
- Compatibility with Dolby Digital, DTS, and other audio technologies
- Sophisticated FM tuner with Radio Data System (Europe model only)
- XM Satellite Radio tuning (U.S.A. and Canada models only)
- iPod control capability
Getting Started

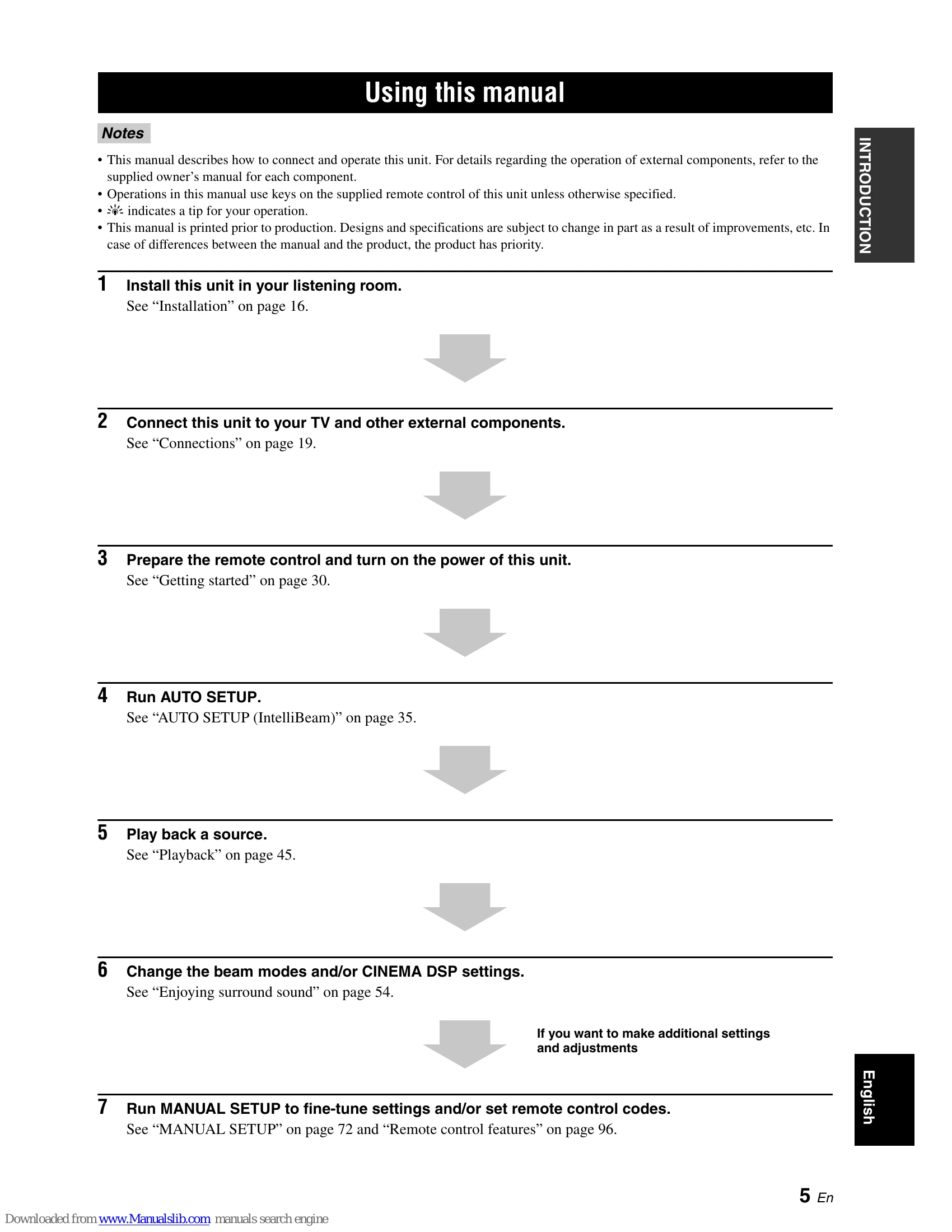

1. Install the unit in your listening room. 2. Connect the unit to your TV and other external components. 3. Prepare the remote control and turn on the power. 4. Run AUTO SETUP. 5. Play back a source. 6. Change beam modes and/or CINEMA DSP settings. 7. Run MANUAL SETUP for fine-tuning and remote control code settings.Troubleshooting and error codes
| Status message | Cause | Remedy | See page |
|---|---|---|---|
| iPod | |||
| Loading. . . | This unit is in the middle of recognizing the connection with your iPod. | — | — |
| Connect error | This unit is in the middle of acquiring the song lists from your iPod. | Turn off this unit and reconnect the Yamaha iPod universal dock to the DOCK terminal of this unit. | 2 |
| Unknown iPod | There is a problem with the signal path from your iPod to this unit. | Try resetting your iPod. | — |
| iPod connected | Your iPod is not supported by this unit. | Only iPod (Click and Wheel), iPod nano, and iPod mini are supported. | — |
| Disconnected | The connection between your iPod and this unit is completed. | Set your iPod back in the Yamaha iPod universal dock. | 2 |
| Unable to play | Your iPod is removed from the Yamaha iPod universal dock. | Check the playability of the files stored on your iPod. | — |
| XM Satellite Radio (U.S.A. and Canada models only) | |||
| CHECK ANTENNA | XM Mini-Tuner and Home Dock are not connected to the XM jack of this unit or not working properly. | Check XM Mini-Tuner and Home Dock connections and adjust the orientation for the best reception level. | 5 |
| UPDATING | The XM user encryption code is being updated. | Wait until the encryption code is updated. | — |
| NO SIGNAL | The signal is too weak. | Adjust the orientation of the indoor antenna of Home Dock for the best reception level. | 5 |
| LOADING | It takes longer than four seconds to decode audio or text data. | Wait until the decoding process is finished. | — |
| OFF AIR | The currently selected XM channel is not broadcasting signals. | Check the channel number again or select another XM channel. | — |
| <XM> | The Channel Station ID (SID) is no longer available. | — | — |
| — / — / — | No artist name or song title is available. | — | — |
| <CAT> | No channel is available for the selected category. | Select another channel category by pressing CAT/A-E repeatedly. | 7 |
