Manual for YSP-3000
Uploaded: Nov. 21, 2025, 6:10 p.m.
Warranty Information
Refer to the specific warranty information provided with your product for details.

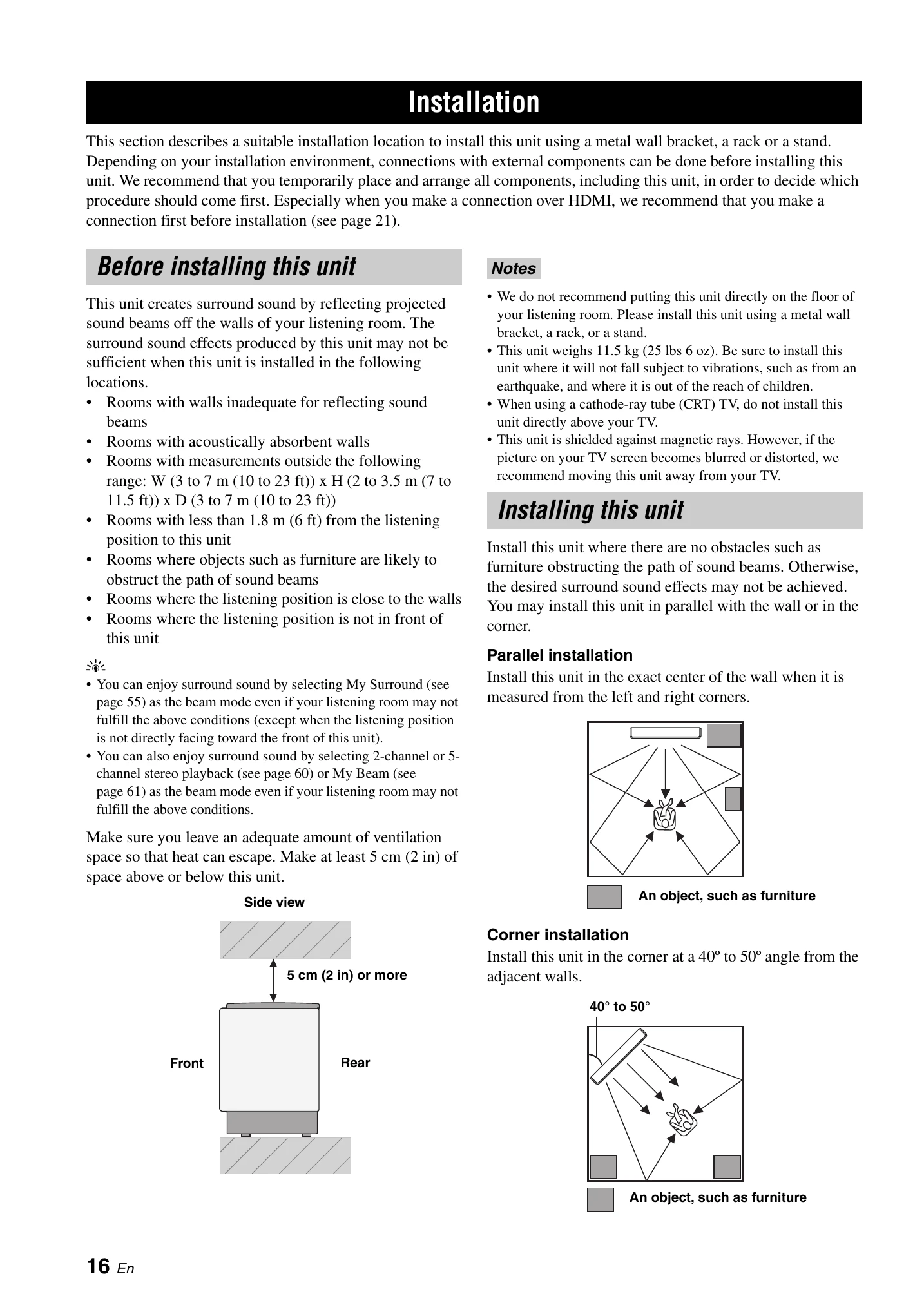

- Installation: Decide on a suitable location, considering wall acoustics and room dimensions. Install the unit using a wall bracket, rack, or stand, ensuring adequate ventilation. Connect the IntelliBeam microphone and run the AUTO SETUP procedure.
- Connections: Connect external components like TVs and DVD players using appropriate cables (audio, video, optical, coaxial, HDMI).
- Basic Operation: Select input sources, play back content, and adjust volume.
- Surround Sound Enjoyment: Select various beam modes (5 Beam, Stereo plus 3 Beam, 3 Beam, My Surround) and Cinema DSP programs to enhance the audio experience from DVDs, TVs, and other sources.
- Advanced Operation: Utilize MANUAL SETUP for fine-tuning system parameters, remote control codes, and other settings.
- iPod and XM Radio Control: Connect an iPod via a universal dock or tune into XM Satellite Radio broadcasts (requires separate purchase and subscription).
Troubleshooting and error codes
| Status message | Cause | Remedy | See page |
| iPod | |||
| Loading... | This unit is in the middle of recognizing the connection with your iPod. | - | - |
| Connect error | This unit is in the middle of acquiring the song lists from your iPod. | Turn off this unit and reconnect the Yamaha iPod universal dock to the DOCK terminal of this unit. | 2 |
| Unknown iPod | There is a problem with the signal path from your iPod to this unit. | Only iPod (Click and Wheel), iPod nano, and iPod mini are supported. | - |
| iPod connected | Your iPod is not supported by this unit. | Set your iPod back in the Yamaha iPod universal dock. | 2 |
| Disconnected | The connection between your iPod and this unit is completed. | - | - |
| Unable to play | Your iPod is removed from the Yamaha iPod universal dock. | Check the playability of the files stored on your iPod. Store other playable music files on your iPod. | - |
| XM Satellite Radio (U.S.A. and Canada models only) | |||
| CHECK ANTENNA | XM Mini-Tuner and Home Dock are not connected to the XM jack of this unit or not working properly. | Check XM Mini-Tuner and Home Dock connections and adjust the orientation for the best reception level. | 5 |
| UPDATING | The XM user encryption code is being updated. | Wait until the encryption code is updated. | 5 |
| NO SIGNAL | The signal is too weak. | Adjust the orientation of the indoor antenna of Home Dock for the best reception level. | 5 |
| LOADING | It takes longer than four seconds to decode audio or text data. | Wait until the decoding process is finished. | - |
| OFF AIR | The currently selected XM channel is not broadcasting signals. | Check the channel number again or select another XM channel. | - |
| <XM> - - - | The Channel Station ID (SID) is no longer available. | No artist name or song title is available. | - |
| <CAT> - - - | No channel is available for the selected category. | Select another channel category by pressing CAT/A-E ⇦/⇨ repeatedly. | 7 |
