Manual for YSP-4000
Uploaded: Nov. 21, 2025, 6:33 p.m.
Warranty Information
This warranty covers defects in materials and workmanship for 2 years for A/V receivers and 1 year for accessories.
To get started:

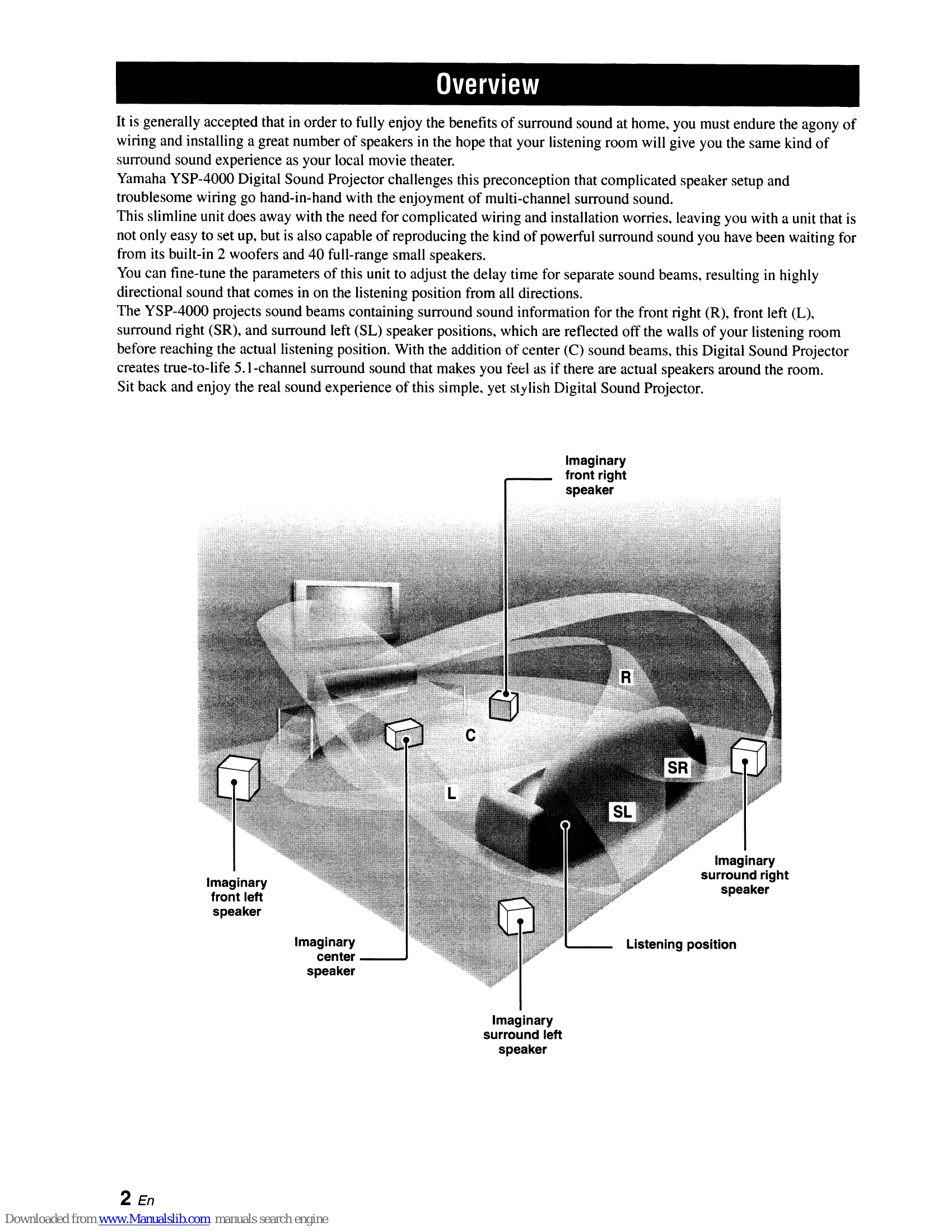

- Install the unit in your listening room, ensuring proper placement for sound beam reflection.
- Connect the unit to your TV and other external components using appropriate cables.
- Prepare the remote control and turn on the unit.
- Run AUTO SETUP (IntelliBeam) for automatic sound adjustment.
- Play back a source (DVD, TV, etc.).
- Change beam modes and CINEMA DSP settings as desired.
- Use MANUAL SETUP for fine-tuning or setting remote control codes.
Basic Operation:
- Select input sources using the remote control.
- Adjust volume and mute as needed.
- Use FM tuning for radio broadcasts.
Advanced Operation:
- Access detailed setup menus for audio balance, system parameters, and more.
- Explore various sound field programs and volume modes.
Troubleshooting and error codes
| Status message | Cause | Remedy | See page |
| iPod | |||
| Loading... | This unit is in the middle of recognizing the connection with your iPod. | - | - |
| Connect error | This unit is in the middle of acquiring the song lists from your iPod. | Turn off this unit and reconnect the Yamaha iPod universal dock to the DOCK terminal of this unit. | 2 |
| Unknown iPod | There is a problem with the signal path from your iPod to this unit. | Try resetting your iPod. | - |
| iPod connected | Your iPod is not supported by this unit. | Only iPod (Click and Wheel), iPod nano, and iPod mini are supported. | - |
| Disconnected | The connection between your iPod and this unit is completed. | Set your iPod back in the Yamaha iPod universal dock. | 2 |
| Unable to play | Your iPod is removed from the Yamaha iPod universal dock. | Check the playability of the files stored on your iPod. Store other playable music files on your iPod. | - |
| XM Satellite Radio (U.S.A. and Canada models only) | |||
| CHECK ANTENNA | XM Mini-Tuner and Home Dock are not connected to the XM jack of this unit or not working properly. | Check XM Mini-Tuner and Home Dock connections and adjust the orientation for the best reception level. | 5 |
| UPDATING | The XM user encryption code is being updated. | Wait until the encryption code is updated. | - |
| NO SIGNAL | The signal is too weak. | Adjust the orientation of the indoor antenna of Home Dock for the best reception level. | 5 |
| LOADING | It takes longer than four seconds to decode audio or text data. | Wait until the decoding process is finished. | - |
| OFF AIR | The currently selected XM channel is not broadcasting signals. | Check the channel number again or select another XM channel. | - |
| <XM> - - - | The Channel Station ID (SID) is no longer available. | - | - |
| <CAT> - - - | No artist name or song title is available. No channel is available for the selected category. | Select another channel category by pressing CAT/A-E repeatedly. | 7 |
