Manual for ZDT24001FA

Manual for ZDT24001FA

Brand: ZANUSSI

Category: Dishwasher

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 6:30 p.m.

Warranty Information

Refer to the rating plate for warranty information.

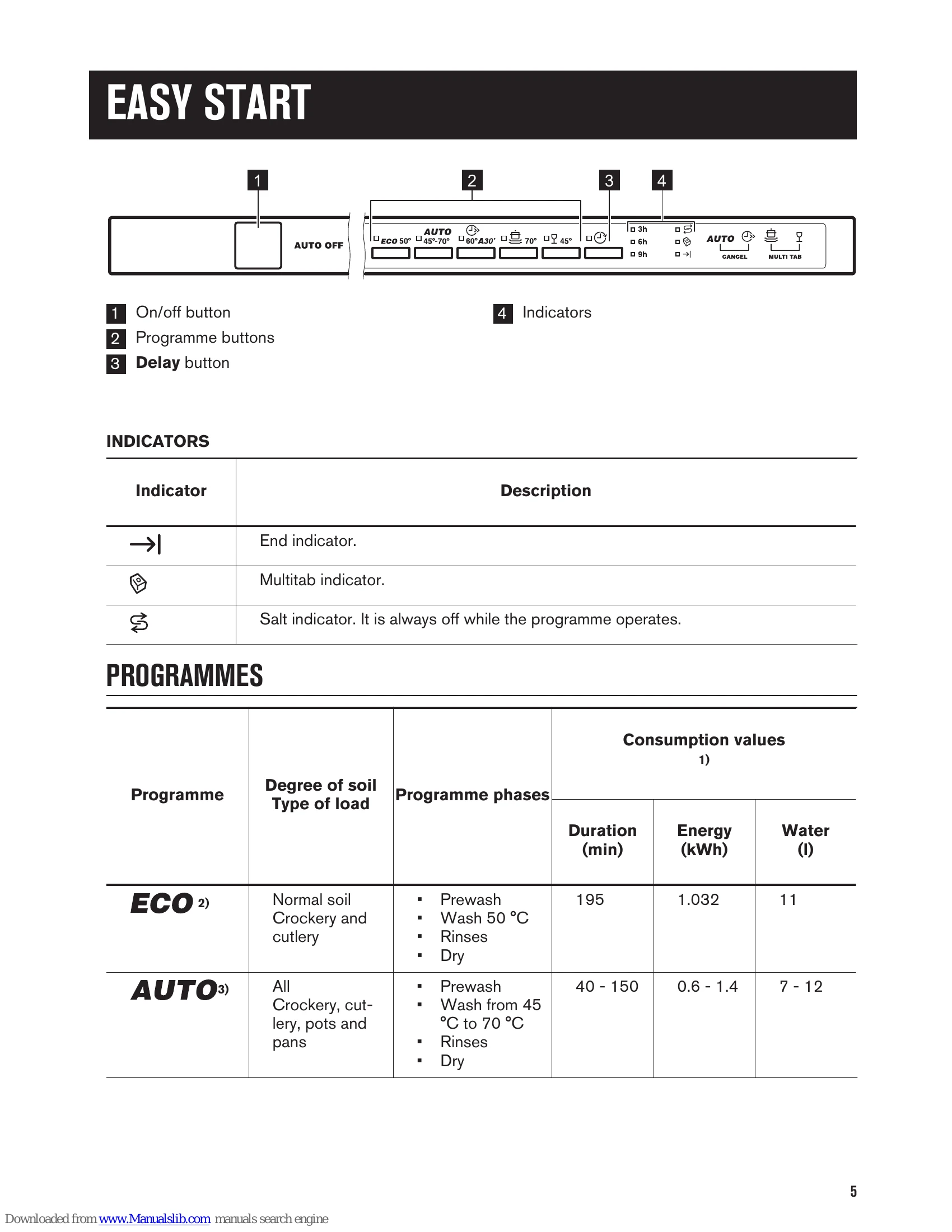

EASY START:

1. On/off button: Turns the appliance on/off.

2. Programme buttons: Selects the desired wash program (e.g., ECO, AUTO).

3. Delay button: Sets a delayed start for the program.

Indicators: Show program status (End indicator, Multitab indicator, Salt indicator).

Programmes: Various wash cycles for different soil levels and load types (ECO, AUTO, etc.) with details on phases, duration, energy, and water consumption.

Settings: Includes Programme Selection Mode, User Mode for adjusting water softener, acoustic signals, and rinse aid dispenser.

Before First Use: Involves filling the salt container, rinse aid dispenser, and running an initial program.

Daily Use: Steps include opening tap, activating appliance, loading baskets, adding detergent, and selecting/starting a program.

Starting a Programme: Steps to select, activate, and close the door to start the wash cycle.

Troubleshooting and error codes

Problem and alarm code Possible solution
You cannot activate the appliance.
  • Make sure that the mains plug is connected to the mains socket.
  • Make sure that there is no damaged fuse in the fuse box.
The programme does not start.
  • Make sure that the appliance door is closed.
  • If the delay start is set, cancel the setting or wait for the end of the countdown.
  • The appliance has started the procedure to re-charge the resin inside the water softener. The duration of the procedure is approximately 5 minutes.
The appliance does not fill with water.
  • The end indicator flashes 1 time intermittently.
  • Acoustic signal sounds 1 time intermittently.
  • Make sure that the water tap is open.
  • Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.
  • Make sure that the water tap is not clogged.
  • Make sure that the filter in the inlet hose is not clogged.
  • Make sure that the inlet hose has no kinks or bends.
The appliance does not drain the water.
  • The end indicator flashes 2 times intermittently.
  • Acoustic signal sounds 2 times intermittently.
  • Make sure that the sink spigot is not clogged.
  • Make sure that the drain hose has no kinks or bends.
The anti-flood device is on.
  • The end indicator flashes 3 times intermittently.
  • Acoustic signal sounds 3 times intermittently.
  • Close the water tap and contact an Authorised Service Centre.
Once you have checked the appliance, deactivate and activate the appliance. If the problem occurs again, contact an Authorised Service Centre. For alarm codes not described in the table, contact an Authorised Service Centre.
