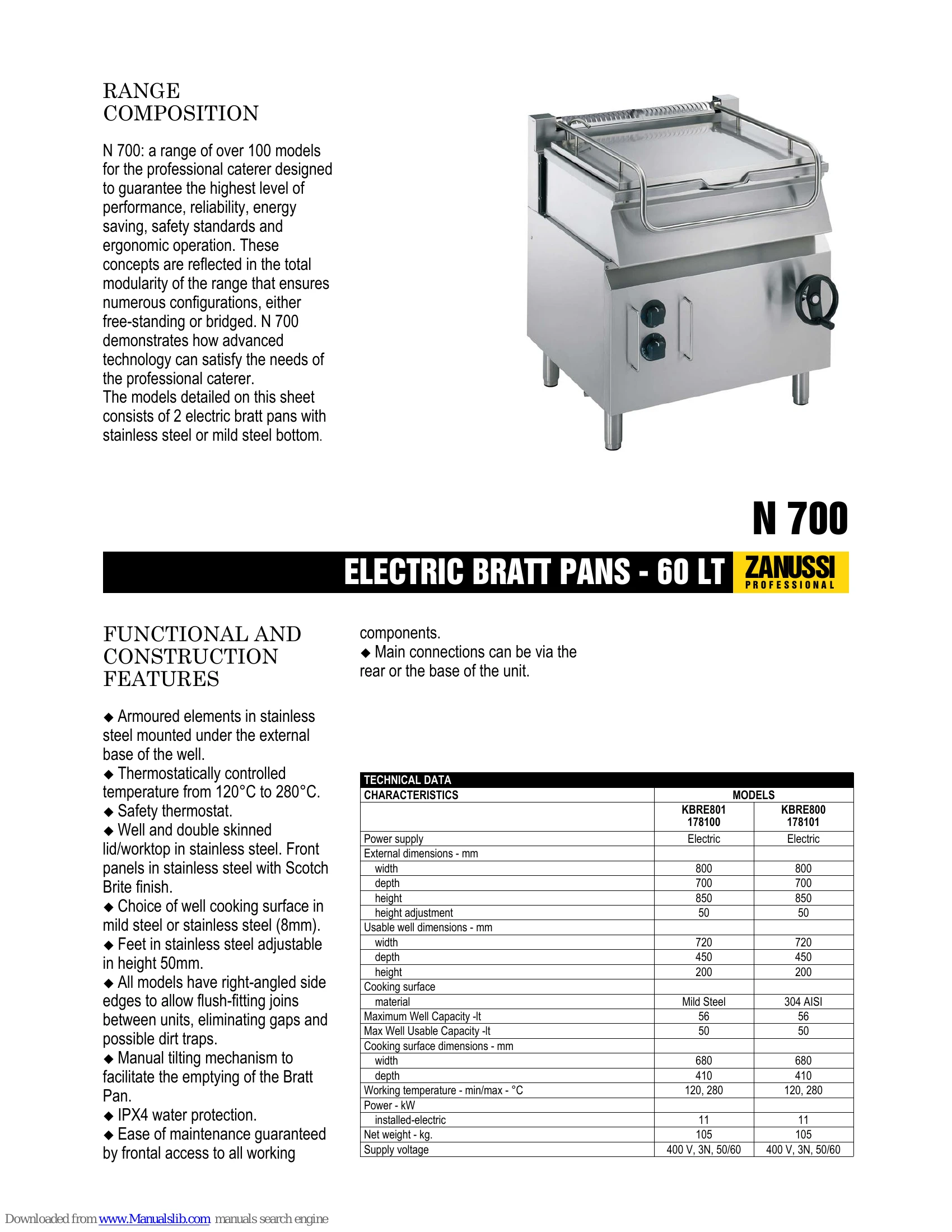

Brochure/Marketing for N 700
Uploaded: Nov. 21, 2025, 8:34 p.m.
N 700 Range Composition
The N 700 range offers over 100 models for professional caterers, emphasizing performance, reliability, energy saving, safety, and ergonomics. Its modular design allows for numerous configurations, both free-standing and bridged. Advanced technology meets the needs of professional caterers.
Electric Bratt Pans - 60 LT Features
- Armoured stainless steel heating elements under the well base.
- Thermostatically controlled temperature from 120°C to 280°C.
- Safety thermostat included.
- Double-skinned stainless steel lid/worktop and Scotch Brite finish front panels.
- Choice of mild steel or 8mm stainless steel cooking surface.
- Adjustable stainless steel feet (50mm height).
- Right-angled side edges for flush fitting and easy cleaning.
- Manual tilting mechanism for easy emptying.
- IPX4 water protection.
- Frontal access for easy maintenance.
- Main connections can be via the rear or the base.
Troubleshooting and error codes
| TECHNICAL DATA | MODELS | |
| CHARACTERISTICS | KBRE801 178100 | KBRE800 178101 |
| Power supply | Electric | Electric |
| External dimensions - mm | ||
| width | 800 | 800 |
| depth | 700 | 700 |
| height | 850 | 850 |
| height adjustment | 50 | 50 |
| Usable well dimensions - mm | ||
| width | 720 | 720 |
| depth | 450 | 450 |
| height | 200 | 200 |
| Cooking surface material | Mild Steel | 304 AISI |
| Maximum Well Capacity -It | 56 | 56 |
| Max Well Usable Capacity -It | 50 | 50 |
| Cooking surface dimensions - mm | ||
| width | 680 | 680 |
| depth | 410 | 410 |
| Working temperature - min/max - °C | 120, 280 | 120, 280 |
| Power - kW | 11 | 11 |
| installed-electric | 105 | 105 |
| Net weight - kg. | 400 V, 3N, 50/60 | 400 V, 3N, 50/60 |
| Supply voltage | ||
