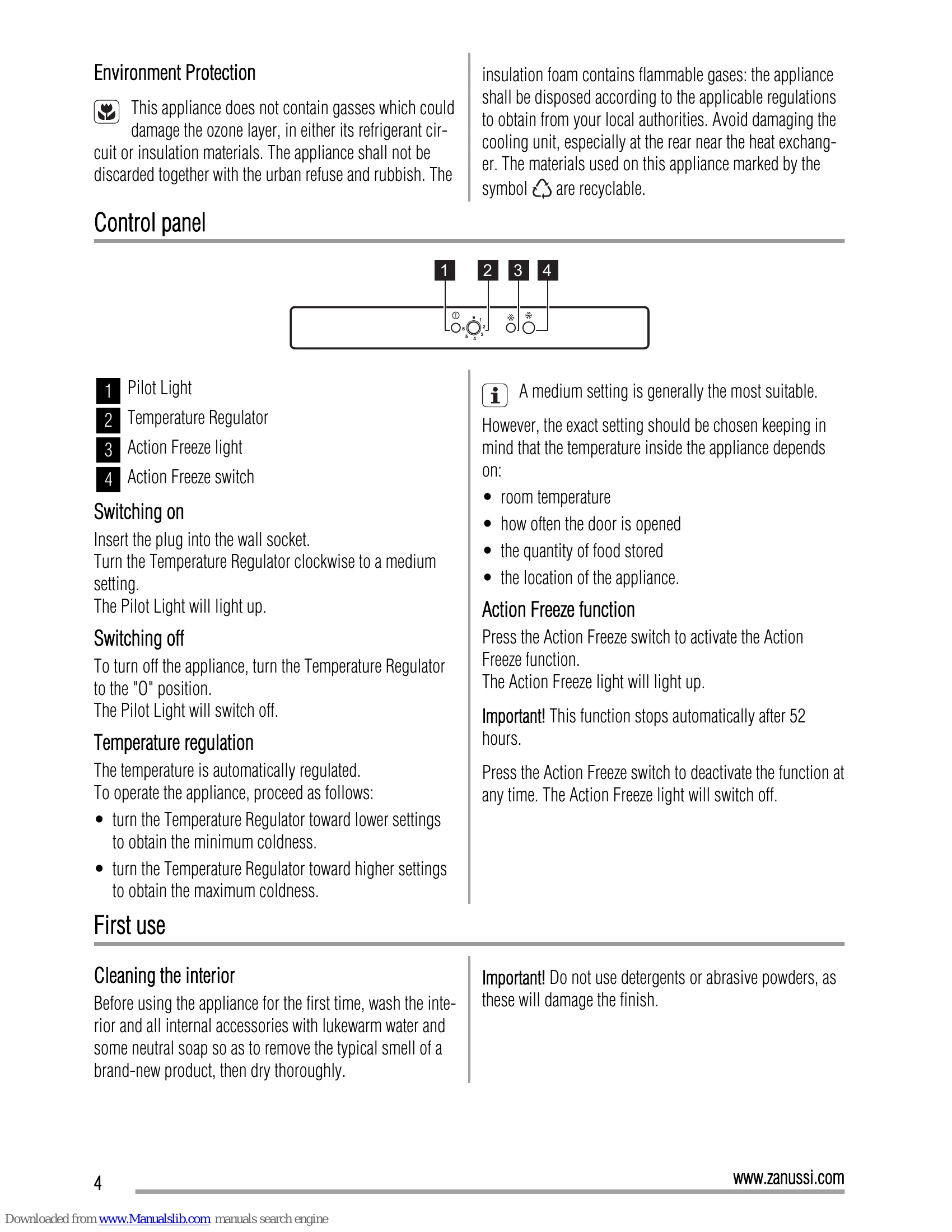

Switching on: Insert the plug, turn the Temperature Regulator clockwise to a medium setting. The Pilot Light will light up.
Switching off: Turn the Temperature Regulator to the "0" position. The Pilot Light will switch off.
Temperature regulation: Turn the Temperature Regulator toward lower settings for minimum coldness and toward higher settings for maximum coldness. A medium setting is generally most suitable.
Action Freeze function: Press the Action Freeze switch to activate. The light will illuminate. It stops automatically after 52 hours or can be deactivated manually.
Switching off: Turn the Temperature Regulator to the "0" position. The Pilot Light will switch off.
Temperature regulation: Turn the Temperature Regulator toward lower settings for minimum coldness and toward higher settings for maximum coldness. A medium setting is generally most suitable.
Action Freeze function: Press the Action Freeze switch to activate. The light will illuminate. It stops automatically after 52 hours or can be deactivated manually.
Troubleshooting and error codes
| Problem | Possible cause | Solution |
| The appliance does not operate. The lamp does not operate. | The appliance is switched off. | Switch on the appliance. |
| The mains plug is not connected to the mains socket correctly. | Connect the mains plug to the mains socket correctly. | |
| The lamp does not work. | The appliance has no power. There is no voltage in the mains socket. | Connect a different electrical appliance to the mains socket. Contact a qualified electrician. |
| The lamp is in stand-by. | Close and open the door. | |
| The lamp is defective. | Refer to "Replacing the lamp". | |
| The compressor operates continually. | The temperature is not set correctly. | Set a higher temperature. |
| The door is not closed correctly. | Refer to "Closing the door". | |
| The door has been opened too frequently. | Do not keep the door open longer than necessary. | |
| The product temperature is too high. | Let the product temperature decrease to room temperature before storage. | |
| The room temperature is too high. | Decrease the room temperature. | |
| Water flows on the rear plate of the refrigerator. | During the automatic defrosting process, frost defrosts on the rear plate. | This is correct. |
| Water flows into the refrigerator. | The water outlet is clogged. | Clean the water outlet. |
| Products prevent that water flows into the water collector. | Make sure that products do not touch the rear plate. | |
| Water flows on the ground. | The melting water outlet does not flow in the evaporative tray above the compressor. | Attach the melting water outlet to the evaporative tray. |
| The temperature in the appliance is too low. | The temperature regulator is not set correctly. | Set a higher temperature. |
| The temperature in the appliance is too high. | The temperature regulator is not set correctly. | Set a lower temperature. |
| Many products are stored at the same time. | Store less products at the same time. | |
| The temperature in the refrigerator is too high. | There is no cold air circulation in the appliance. | Make sure that there is cold air circulation in the appliance. |
| The temperature in the freezer is too high. | Products are too near to each other. | Store products so that there is cold air circulation. |
