Brand: ZANUSSI
Category: Refrigerator
Document Type: Manual
Language: EN
Manual for ZUD 9154
Uploaded: Nov. 21, 2025, 7:30 p.m.
Warranty Information
The appliance has a 24-month warranty for repair or replacement due to faulty workmanship or materials.

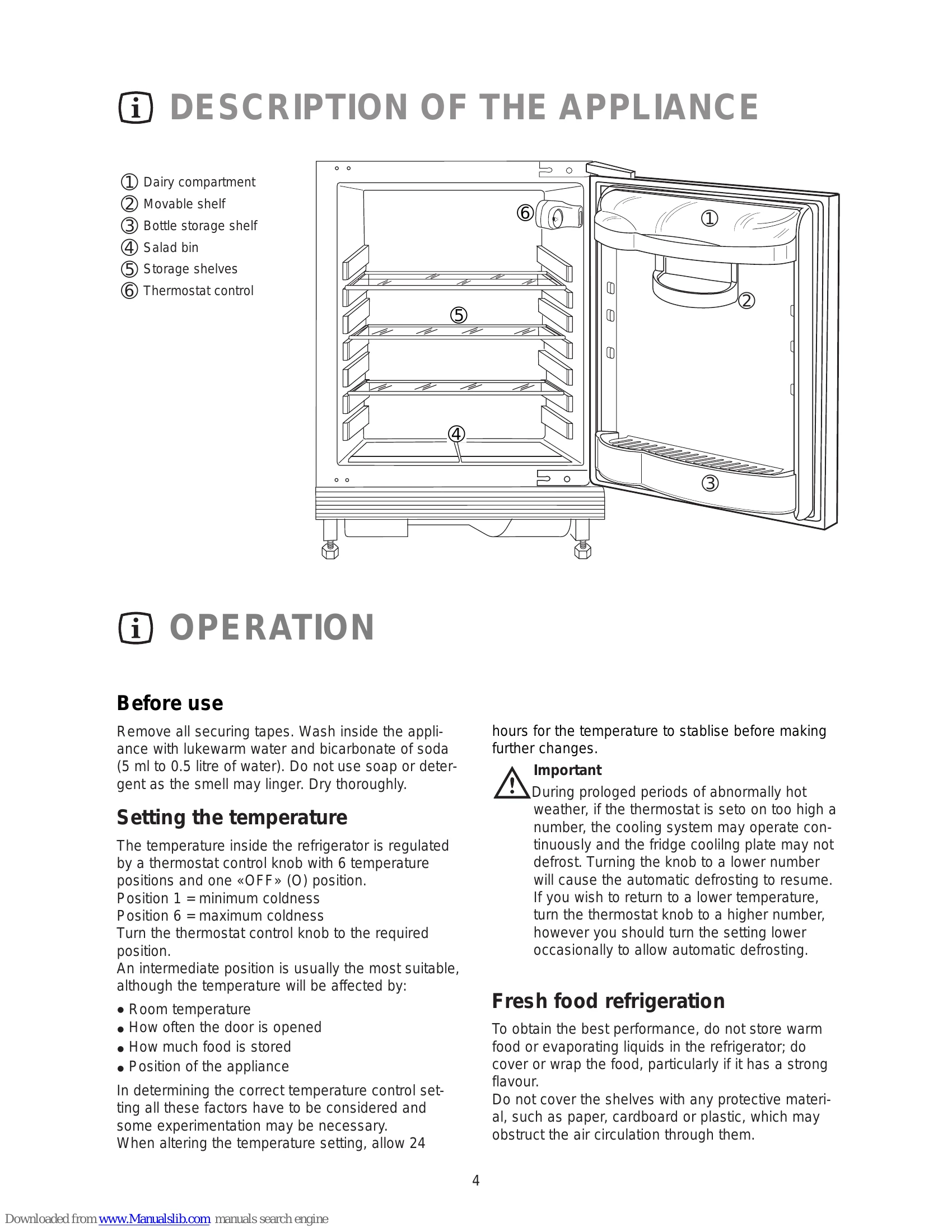

Before use: Clean the interior with lukewarm water and bicarbonate of soda. Dry thoroughly.
Setting the temperature: Use the thermostat knob (1=min coldness, 6=max coldness). Allow 24 hours for temperature to stabilise.
Fresh food refrigeration: Do not store warm food or evaporating liquids. Cover or wrap food. Do not cover shelves with protective material.
Useful hints: Store raw meat on top of salad drawers, fruit & vegetables in bottom drawers, butter & cheese in airtight containers, milk bottles in the door rack.
Door shelves: Adjust half trays horizontally. Remove top door shelf and bottle shelf for cleaning.
Normal Operating Sounds: Expect faint gurgling, whirring, pulsating noises, and thermostat clicks.
Setting the temperature: Use the thermostat knob (1=min coldness, 6=max coldness). Allow 24 hours for temperature to stabilise.
Fresh food refrigeration: Do not store warm food or evaporating liquids. Cover or wrap food. Do not cover shelves with protective material.
Useful hints: Store raw meat on top of salad drawers, fruit & vegetables in bottom drawers, butter & cheese in airtight containers, milk bottles in the door rack.
Door shelves: Adjust half trays horizontally. Remove top door shelf and bottle shelf for cleaning.
Normal Operating Sounds: Expect faint gurgling, whirring, pulsating noises, and thermostat clicks.
Troubleshooting and error codes
| Symptom | Solution |
|---|---|
| No power to appliance | Check socket power, check for power cut, check fuse. |
| The light does not come on | Ensure bulb is fitted correctly, replace bulb if blown, check door light switch. |
| The temperature in the fridge or freezer section is too high | Check ambient temperature, check thermostat setting, adjust thermostat, check door is closed, check for large quantities of recently added food, check air ventilation. |
| The compressor runs continuously | Ensure door is closed, check for obstructions preventing closure, check door gasket is intact and clean. |
| Excessive frost and ice has built up | Ensure door is not left open, check for obstructions preventing closure, check door gasket. |
| Noise | Refer to normal operating sounds. |
| Water under the salad drawers | Check the drain hole is not blocked. |
