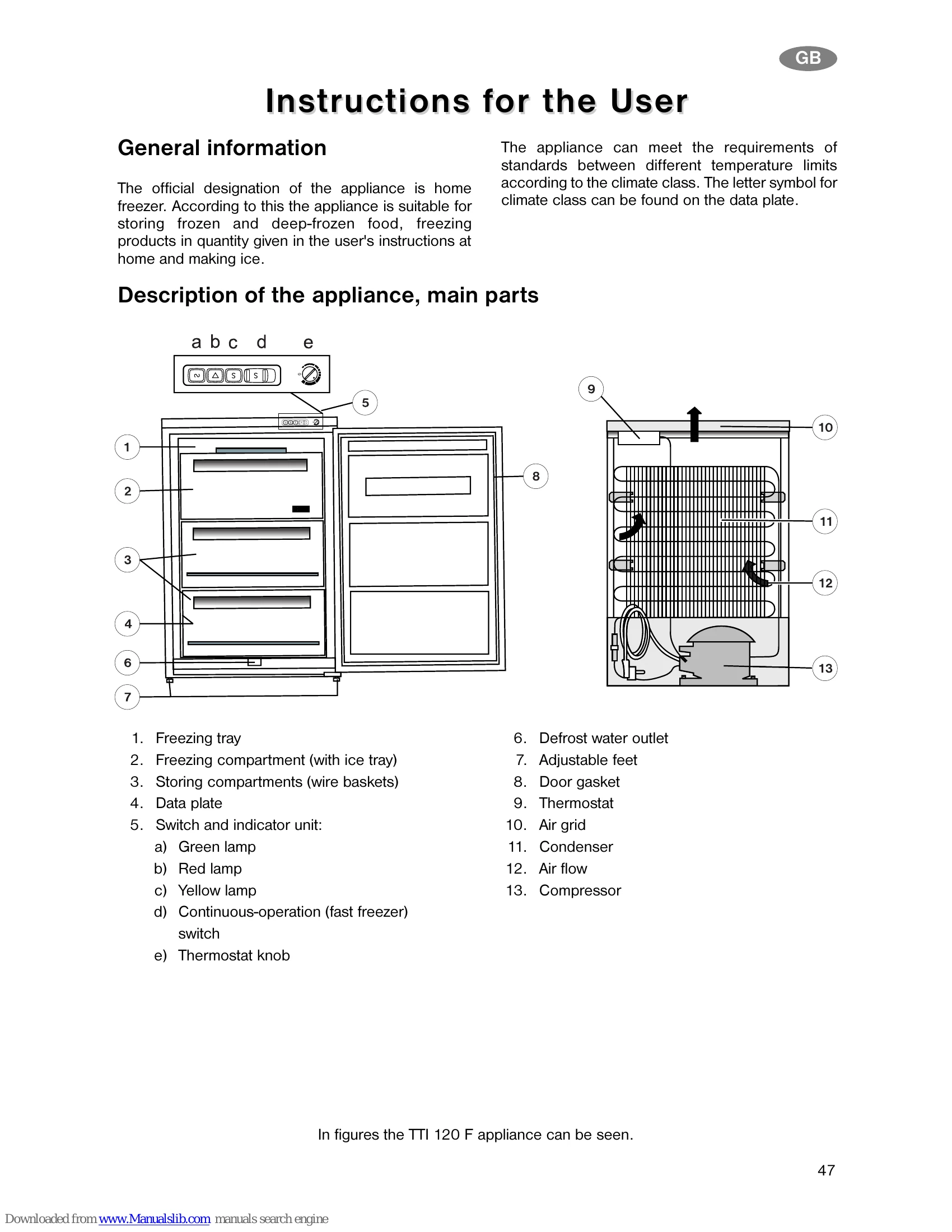

Manual for ZV 130 BO (TTI 120 F)
Uploaded: Nov. 21, 2025, 6:11 p.m.
Manual Publish Date: null
Warranty Information
A 12-month warranty is provided, starting from the date of sale, valid upon presentation of the invoice.
Putting it into use: Plug in the appliance, turn the thermostatic control knob. The red lamp indicates the appliance is live and cooling has started. The red light will go out when the temperature is sufficient for storing frozen food.
Controlling the temperature: Turn the thermostat knob clockwise for more intensive cooling. Setting '0' switches off the cooling. Temperature is affected by ambient conditions, door openings, and food quantity.
Freezing: Move the fast freezer switch (yellow lamp on) 4-24 hours before freezing, depending on quantity. Place food in the freezer, operate for 24 hours, then switch off fast freeze. Smaller fruits can be frozen in the freezing tray.
Storing: Replace frozen products into storing compartments after freezing to make space.
Troubleshooting and error codes
| Problem | Possible cause | Solution |
|---|---|---|
| The appliance does not cool sufficiently | Thermostatic control is set too low. | Set higher position. |
| Before freezing the appliance was not precooled sufficiently. | Pre-cool the appliance for enough time. | |
| Large-sized food was put in. | Cut up food. | |
| Too many foods to be frozen were put in. | Put fewer foods to be cooled. | |
| Warm foods were put in. | Put foods max. at room temperature. | |
| The appliance cools too hard | Door is not shut properly. | Check if the door is shut. |
| The thermostatic control is set too high. | Set lower position. | |
| The appliance does not cool at all | Plug is not connected to the mains socket properly. | Check if the connection is proper. |
| There is no voltage in the mains socket. | Check if there is voltage. | |
| Thermostatic control is in „0" position. | Check setting of thermostatic control. | |
| The appliance is noisy | The appliance is not supported properly. | Check if the appliance stands stable (all the four feet should be on the floor). |
