Manual for TD 4112 W

Name: Manual for TD 4112 W
Brand: ZANUSSI
Availability: InStock

Brand: ZANUSSI

Category: Tumble Dryer

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 7:13 p.m.

Warranty Information

Zanussi provides a 12-month guarantee covering faulty workmanship or materials, excluding certain conditions like improper use or unauthorized repairs.

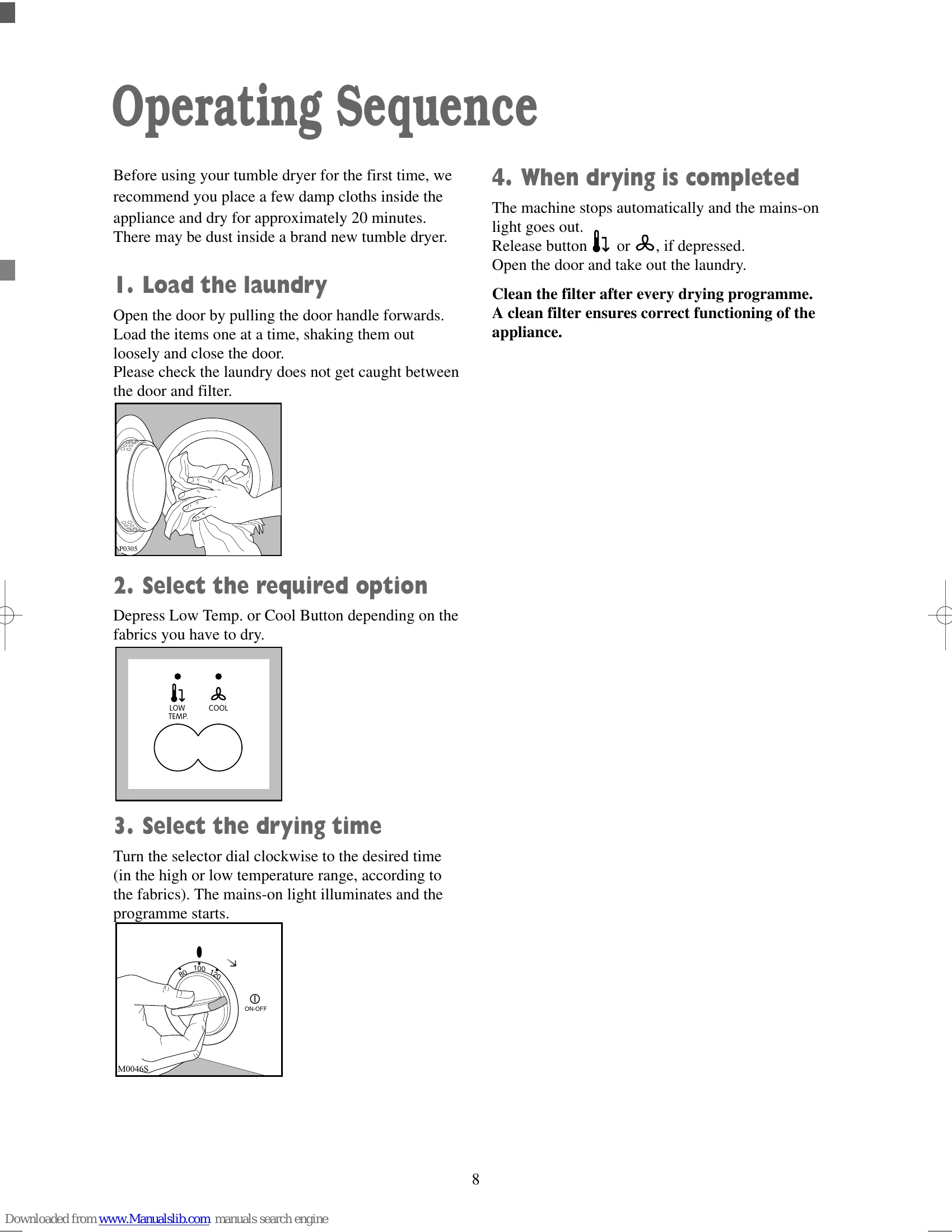

Loading Laundry:

Open the door, load items one at a time, shake loosely, and close the door. Ensure laundry doesn't get caught.

Selecting Options:

Depress 'Low Temp.' for delicate items (longer drying time) or 'Cool' to freshen laundry (max 20-30 mins).

Setting Drying Time:

Turn the selector dial clockwise to the desired time. The 'Mains-On' light illuminates, and the program starts. The dial includes an 8-minute cooling phase.

Completion:

The machine stops automatically, and the 'Mains-On' light goes out. Release depressed buttons, open the door, and remove laundry. Clean the fluff filter after every cycle.

Troubleshooting and error codes

Symptom	Possible causes
The tumble dryer does not start	The door has not been closed. The plug is not properly inserted in the power socket. There is no current at the socket The main fuse or the fuse in the plug has blown. A drying time has not been selected.
Drying takes too long or laundry is not dry enough.	The laundry has not been spun properly. The filter is clogged up. The room temperature is too high. The selected time or sector was not suitable for the laundry There is too much laundry inside the appliance. The dryer is not correctly installed. The Low Temperature or Cool Tumble Button has been depressed.
