Manual for 130 - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 1:57 p.m.
Warranty Summary
Warranty information is not mentioned in this installation manual.

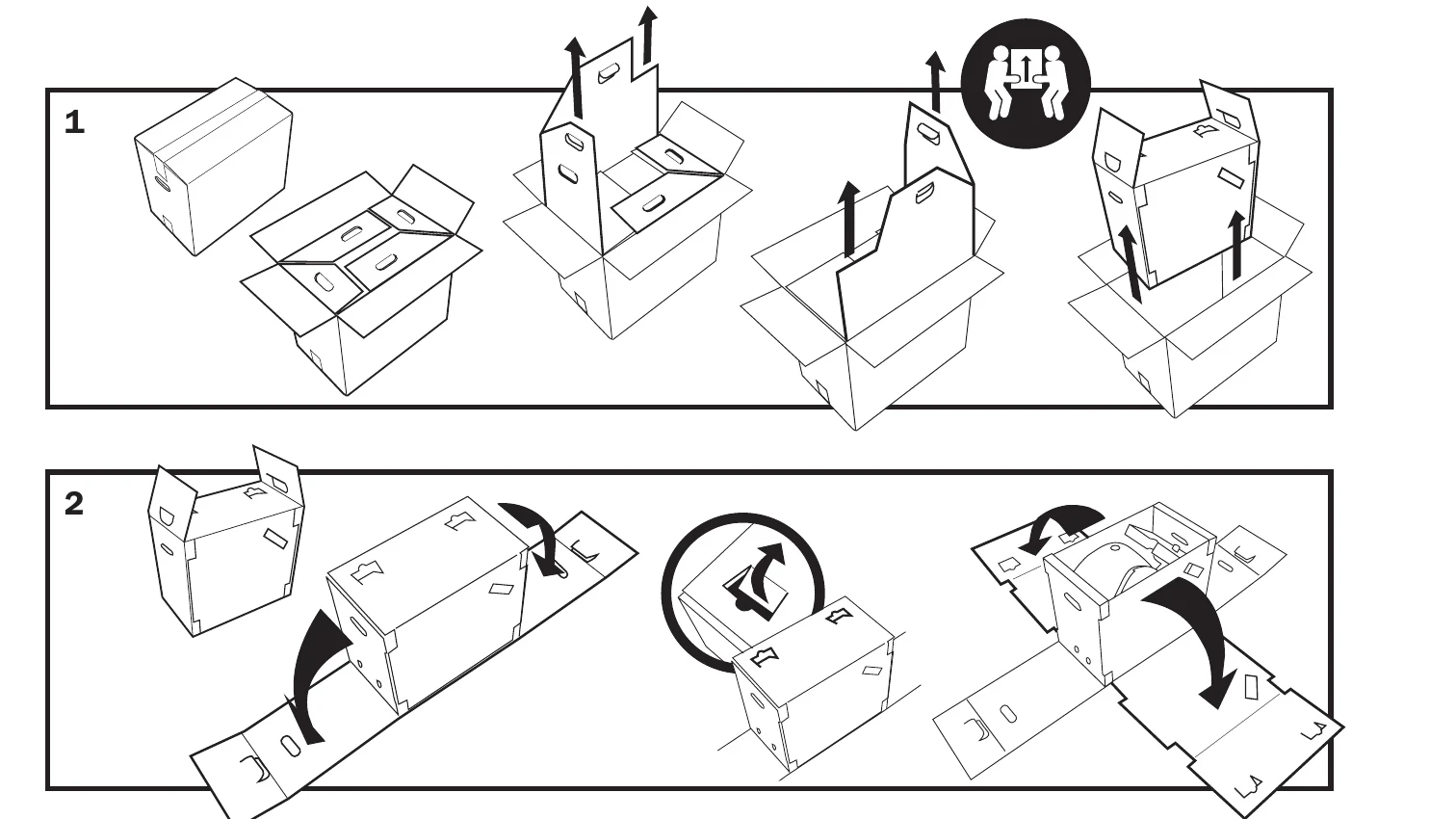

- Pre-Installation Procedure: Includes unpacking, visual inspection and initial checks.
- Installation Procedure: Steps cover preparation on site, rail joining and installation, carriage and seat installation, transformer connection.
- Safety Checks: Verify controls, remote controls, safety sensors, stopping limits, seat swivel, battery isolation and key switches, hand winding, labeling, and carriage fixing.
- Demonstrate Stairlift to User: Explain operation and safety features to the user.
- Maintenance: Inform user about maintenance requirements.
- Avoiding Unsafe Installations: Guidelines to prevent unsafe installations.
Troubleshooting and error codes
| LED Display | Problem |
|---|---|
| E1 | Footrest 'top' side sensor activated. |
| E2 | Footrest 'bottom' side sensor or Footrest base sensor activated. |
| E3 | Carriage 'top' side sensor activated. |
| E4 | Carriage 'bottom' side sensor activated. |
| E5 | Seat Swivel activated. |
| E9 | Key Switch is in the off position. |
| Blank Display | Battery Isolation Switch is in the OFF position. |
| Ai | Normal display after key turned clockwise. |
| AS | Normal display after pressing green button. |
| 84 | Normal display after brake release and lift running. |
| S9 | Normal display after plugging in red lead/switching on isolation switch. |
Troubleshooting and error codes
| LED Display | Problem |
|---|---|
| E1 | Footrest 'top' side sensor activated. |
| E2 | Footrest 'bottom' side sensor or Footrest base sensor activated. |
| E3 | Carriage 'top' side sensor activated. |
| E4 | Carriage 'bottom' side sensor activated. |
| E5 | Seat Swivel activated. |
| E9 | Key Switch is in the off position. |
| Blank Display | Battery Isolation Switch is in the OFF position. |
| Ai | Normal display after key turned clockwise. |
| AS | Normal display after pressing green button. |
| 84 | Normal display after brake release and lift running. |
| S9 | Normal display after plugging in red lead/switching on isolation switch. |
