Manual for AL 1820 CV - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 1:45 p.m.
Manual Publish Date: 2014-01-01
Warranty Summary
Warranty information is not mentioned in this manual.

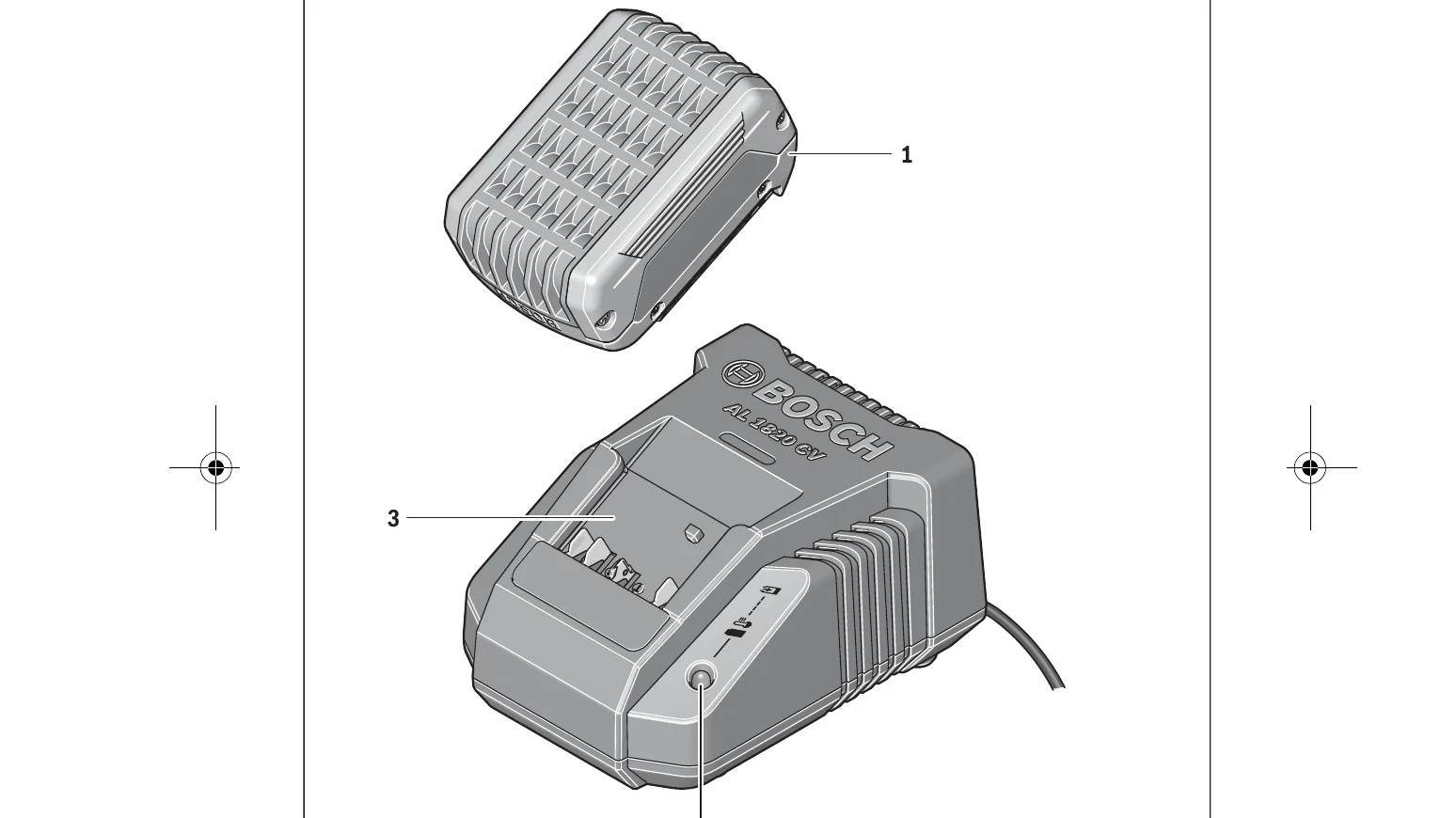

To start charging:
- Plug the mains plug of the battery charger into the socket outlet.
- Insert the battery into the charging bay.
Charging process:
The charging procedure starts automatically when the battery is inserted. The intelligent charging method automatically detects the battery's charge level and charges it with the optimum charging current, depending on battery temperature and voltage.
The green battery charge indicator will blink during the charging process. When the indicator is solid green, the battery is fully charged or charging is paused due to temperature limits.
Troubleshooting and error codes
| Cause | Corrective Measure |
|---|---|
| Continuous lighting of the battery charge indicator 2 No charging procedure possible | |
| Battery not (properly) inserted | Properly insert battery into battery charger |
| Battery contacts contaminated | Clean the battery contacts (e.g. by inserting and removing the battery several times) or replace the battery |
| Battery pack defective | Replace the battery |
| Battery charge indicator 2 does not light up | |
| Mains plug of battery charger not plugged in (properly) | Insert mains plug (fully) into the socket outlet |
| Socket outlet, mains cable or battery charger defective | Check the mains voltage; have the battery charger checked by an authorised after-sales service agent for Bosch power tools |
Troubleshooting and error codes
| Cause | Corrective Measure |
|---|---|
| Continuous lighting of the battery charge indicator 2 No charging procedure possible | |
| Battery not (properly) inserted | Properly insert battery into battery charger |
| Battery contacts contaminated | Clean the battery contacts (e.g. by inserting and removing the battery several times) or replace the battery |
| Battery pack defective | Replace the battery |
| Battery charge indicator 2 does not light up | |
| Mains plug of battery charger not plugged in (properly) | Insert mains plug (fully) into the socket outlet |
| Socket outlet, mains cable or battery charger defective | Check the mains voltage; have the battery charger checked by an authorised after-sales service agent for Bosch power tools |
