Brand: CAME
Category: Control Unit
Manual Type:
Language:
Manual for ZBX74-78
Uploaded: April 8, 2025, 3:37 a.m.
Manual Publish Date: 2013-07-01
Warranty Summary
No warranty information is provided in this spare parts manual.

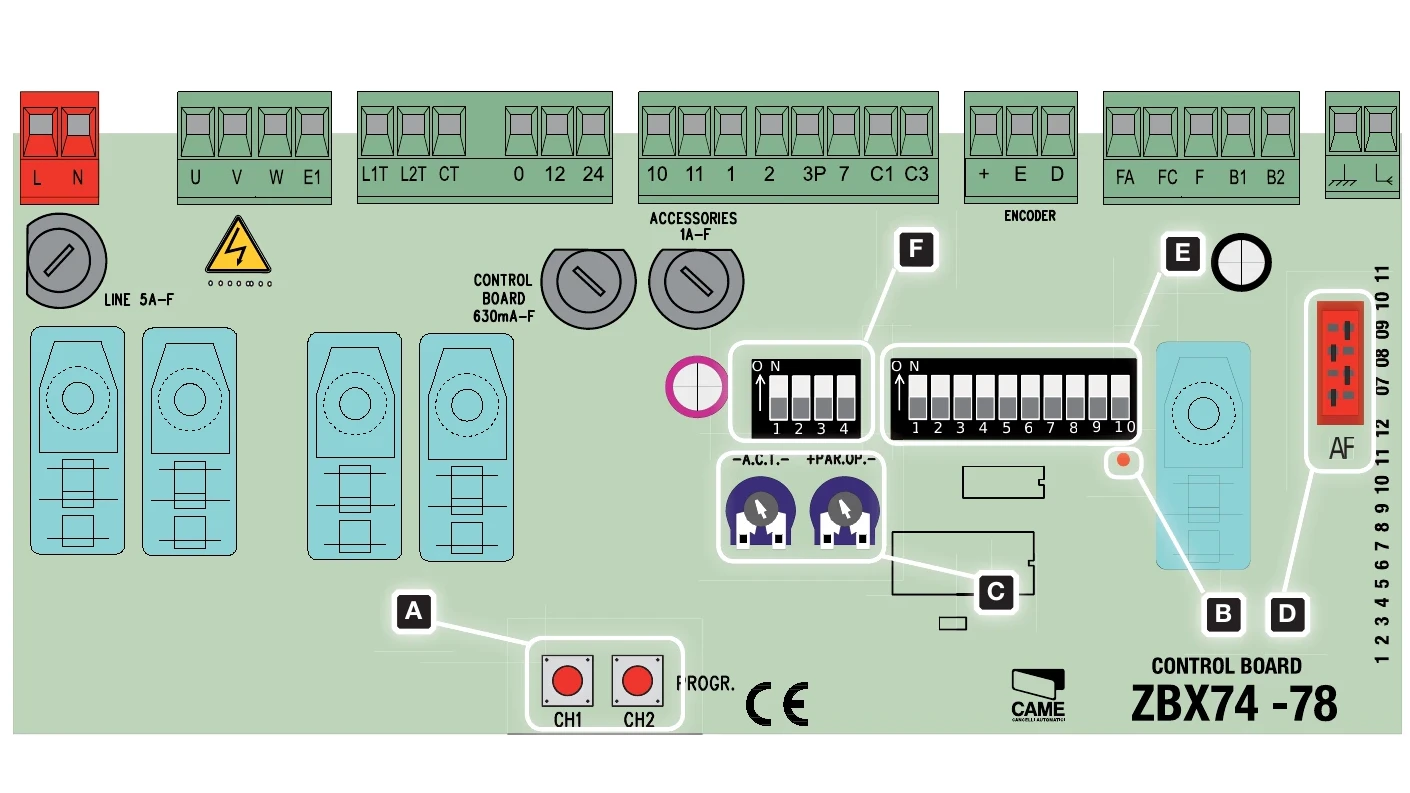

The CAME ZBX74-78 is a control unit for gate automation systems. Key operations include:
- Electrical Connections: Wiring for power supply, accessories, motor, and safety devices.
- Remote Control Activation: Procedures for pairing remote transmitters to the control board.
- Programming: Setting up deceleration and adjusting partial stop functions.
- Function Selection: Configuring operation modes like automatic closing, obstacle detection, and safety stop.
- Adjustment Trimmer: Regulating automatic closing time and partial opening time.
