The CBE PC220 control panel is designed for caravans and boats, managing the electrical system. Key operations include:

• Mains Control: Manage and monitor the 230V power supply.
• Battery Management: Test and monitor both car (B1) and leisure (B2) battery voltage and charge status, with alarms for low voltage.
• Tank Monitoring: Test and display fresh water tank level in percentage, with alarms for empty tank and waste water tank full.
• Temperature Monitoring: Display internal and external temperatures (°C).
• Clock Function: Integrated digital clock with user setting options.

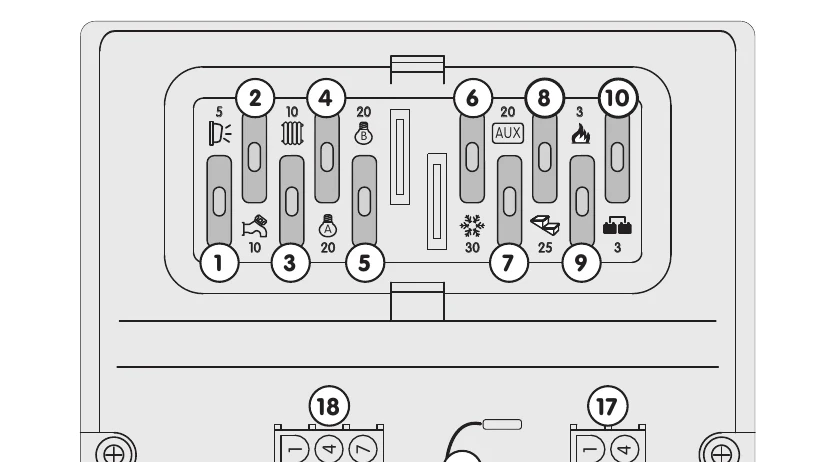

• Load Control: Switches and protection for lights, water pump, heating, refrigerator and auxiliary devices.
• Battery Charging: Manages charging of both batteries when connected to mains or alternator.
