Manual for EHE0200153 - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 1:45 p.m.
Warranty Summary
No warranty information provided in this manual.

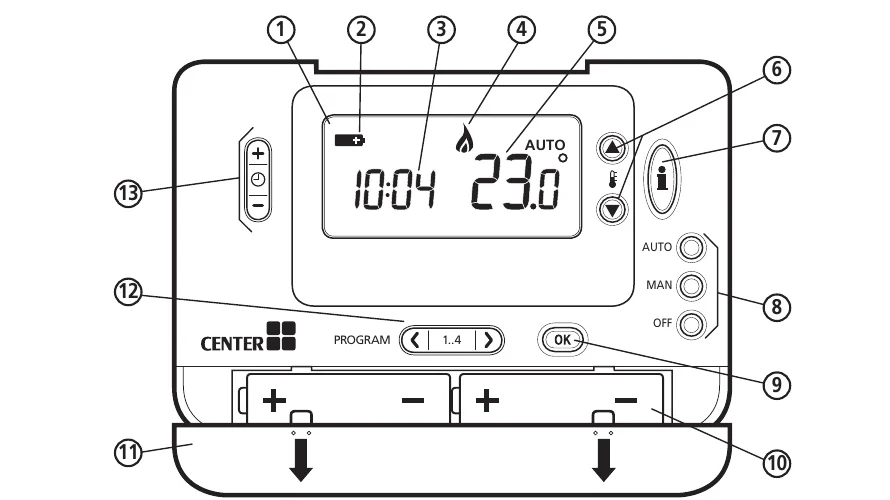

Setting up the EHE0200153 Thermostat:
- Step 1: Install Batteries: Insert 2 x AA LR6 Alkaline Batteries.
- Step 2: Set Time: Press +/- to enter time setting mode, adjust time with +/- and confirm with OK.
- Step 3: Run Built-in Program: Press AUTO to start the built-in heating program.
Operating Modes:
- AUTO: Follows programmed heating schedule.
- MAN: Manual mode with fixed setpoint temperature.
- OFF: Frost protection mode at 5°C.
Troubleshooting and error codes
| Symptom | Remedy |
|---|---|
| Blank Display (Power Loss). | Check batteries are installed by removing the battery cover. Check batteries have been installed in the correct orientation. Replace the batteries. |
| Display shows flashing + symbol. | The batteries in the thermostat are low on power - Replace the batteries. |
| Display shows ➡ symbol. | A fault has occurred in your heating system. Remove and re-insert the batteries. If the ➡ symbol does not clear after a few minutes contact your installer. |
