Manual for 63842 - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 1:56 p.m.
Warranty Summary
This product has a limited 90-day warranty against defects in materials and workmanship.
Basic Operation Summary:

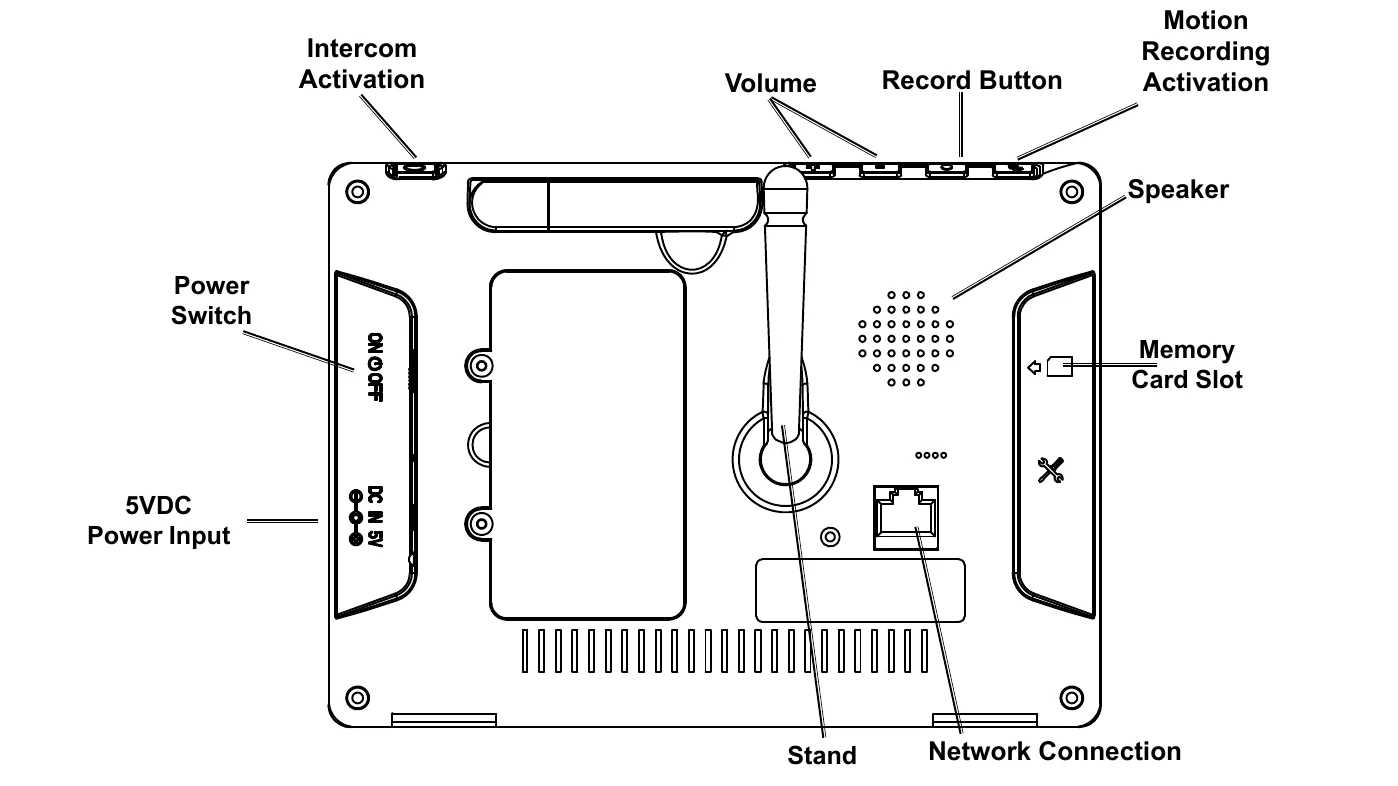

- Set Up: Connect power to the receiver and cameras. Pair cameras if necessary.
- Viewing Modes: Switch between Quad/Sequence view and Single Camera view. Use zoom function.
- Recording: Insert SD card for recording. Choose between Scheduled, Manual, and Motion Detection recording modes.
- Intercom: Use intercom feature for two-way audio communication with cameras.
- Playback and Delete: Review recorded files on the receiver or other devices. Delete files as needed.
- Remote Viewing: Set up remote viewing via MyCam View App on iPhone/iPad or Android devices.
Troubleshooting and error codes
| Problem | Possible Causes | Likely Solutions |
|---|---|---|
| Receiver does not display image. | 1. Camera disconnected. 2. Camera out of range of Receiver. 3. AV Button on back is pressed. |
1. Check power to Camera. 2. Relocate Camera and/or Receiver. 3. Press AV button on back. |
| Picture is white. | Camera pointing at strong light source. | Reposition Camera. |
| Picture is choppy. | 1. Obstructions between Camera and Receiver. 2. Frame rate too low. |
1. Remove obstructions between Camera and Receiver. 2. Increase frame rate. |
| Cannot access the menu. | 1. System is recording. 2. Motion detection is on. |
1. Stop recording. 2. Stop motion detection. |
| "Err" appears on the screen. | SD card error. | Turn Receiver off, remove and reinsert SD card, then turn receiver back on. Note: If "Err" still appears, reformat the card or use a different one. |
