Manual for XR06CX - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 1:44 p.m.
Warranty Summary
No warranty information found in this operating manual.

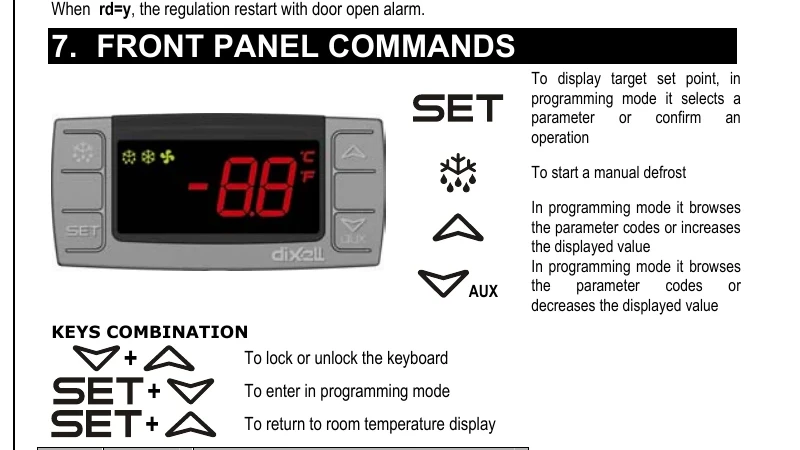

Basic Operations:
- Display Set Point: Push and release SET key.
- Change Set Point: Press SET for 2s, use â–²/â–¼ keys, press SET to confirm.
- Manual Defrost: Press DEF key for 2s.
- Parameter Value Change: Press SET+â–¼ for 3s, select parameter with â–²/â–¼, press SET, change value with â–²/â–¼, press SET to confirm.
- Hidden Menu Access: Enter Programming mode, then press SET+â–¼ for 7s.
- Keyboard Lock/Unlock: Press â–²+â–¼ for 3s.
Troubleshooting and error codes
| Mess. | Cause | Outputs |
|---|---|---|
| "P1" | Room probe failure | Compressor output according to "Cy" e "Cn" |
| "P2" | Evaporator probe failure | Defrost end is timed |
| "HA" | Maximum temperature alarm | Outputs unchanged |
| "LA" | Minimum temperature alarm | Outputs unchanged |
| "EA" | External alarm | Outputs unchanged |
| "CA" | Serious external alarm | All outputs OFF Compressor and fans restarts |
| "dA" | Door Open | - |
Troubleshooting and error codes
| Mess. | Cause | Outputs |
|---|---|---|
| "P1" | Room probe failure | Compressor output according to "Cy" e "Cn" |
| "P2" | Evaporator probe failure | Defrost end is timed |
| "HA" | Maximum temperature alarm | Outputs unchanged |
| "LA" | Minimum temperature alarm | Outputs unchanged |
| "EA" | External alarm | Outputs unchanged |
| "CA" | Serious external alarm | All outputs OFF Compressor and fans restarts |
| "dA" | Door Open | - |
