Manual for XDCPA10BT - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 1:57 p.m.
Manual Publish Date: 2020-01-01

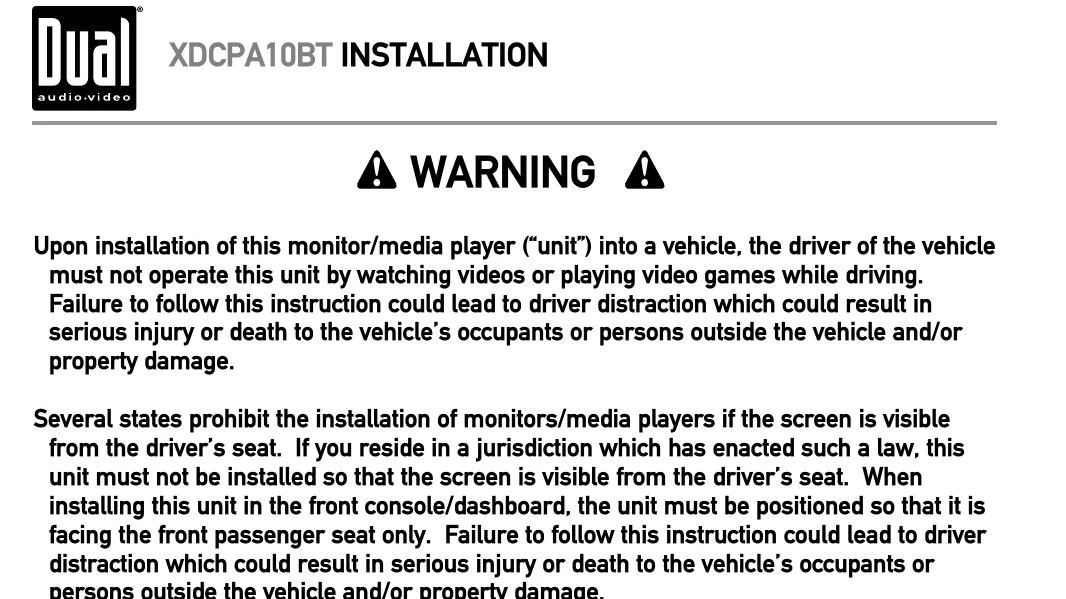

Warranty Summary
Dual Electronics Corp. warrants this product to be free from defects in material and workmanship for one year from the original purchase date.
Power On/Off: Momentarily press the power button to turn the unit on, press and hold to turn off.
Volume: Use the volume buttons to adjust the sound level.
Mute: Press the mute button to silence audio, press again to restore volume.
Mode: Press MODE to access the main menu and select different sources like Radio, USB, CarPlay, Android Auto, Bluetooth, and AV Input.
Radio Operation: Select AM/FM tuner mode from the main menu. Use seek buttons to tune, preset buttons to store stations, and options to adjust settings like local/distance and equalizer.
Volume: Use the volume buttons to adjust the sound level.
Mute: Press the mute button to silence audio, press again to restore volume.
Mode: Press MODE to access the main menu and select different sources like Radio, USB, CarPlay, Android Auto, Bluetooth, and AV Input.
Radio Operation: Select AM/FM tuner mode from the main menu. Use seek buttons to tune, preset buttons to store stations, and options to adjust settings like local/distance and equalizer.
Troubleshooting and error codes
| Problem | Cause | Action |
|---|---|---|
| Unit will not turn on (no power) | Yellow wire not connected or incorrect voltage Red wire not connected or incorrect voltage Black wire not connected Fuse blown |
Check connections for proper voltage (11~16VDC) Check connection to ground Replace fuse(s) |
| Unit has power (but no sound) | Speaker wires not connected One or more speaker wires touching each other or touching chassis ground |
Check connections at speakers Insulate all bare speaker wires from each other and chassis ground |
| Unit blows fuse(s) | Yellow or red wire touching chassis ground Speaker wires touching chassis ground Incorrect fuse rating |
Check for pinched wire Check for pinched wire Use fuses with correct rating |
| Unit has audio (but no video) | Parking brake safety circuit not connected Parking brake not applied |
Check connections at parking brake Apply parking brake as described on page 26 |
| IR remote does not work | Dead battery | Replace battery |
Troubleshooting and error codes
| Problem | Cause | Action |
|---|---|---|
| Unit will not turn on (no power) | Yellow wire not connected or incorrect voltage Red wire not connected or incorrect voltage Black wire not connected Fuse blown |
Check connections for proper voltage (11~16VDC) Check connection to ground Replace fuse(s) |
| Unit has power (but no sound) | Speaker wires not connected One or more speaker wires touching each other or touching chassis ground |
Check connections at speakers Insulate all bare speaker wires from each other and chassis ground |
| Unit blows fuse(s) | Yellow or red wire touching chassis ground Speaker wires touching chassis ground Incorrect fuse rating |
Check for pinched wire Check for pinched wire Use fuses with correct rating |
| Unit has audio (but no video) | Parking brake safety circuit not connected Parking brake not applied |
Check connections at parking brake Apply parking brake as described on page 26 |
| IR remote does not work | Dead battery | Replace battery |
