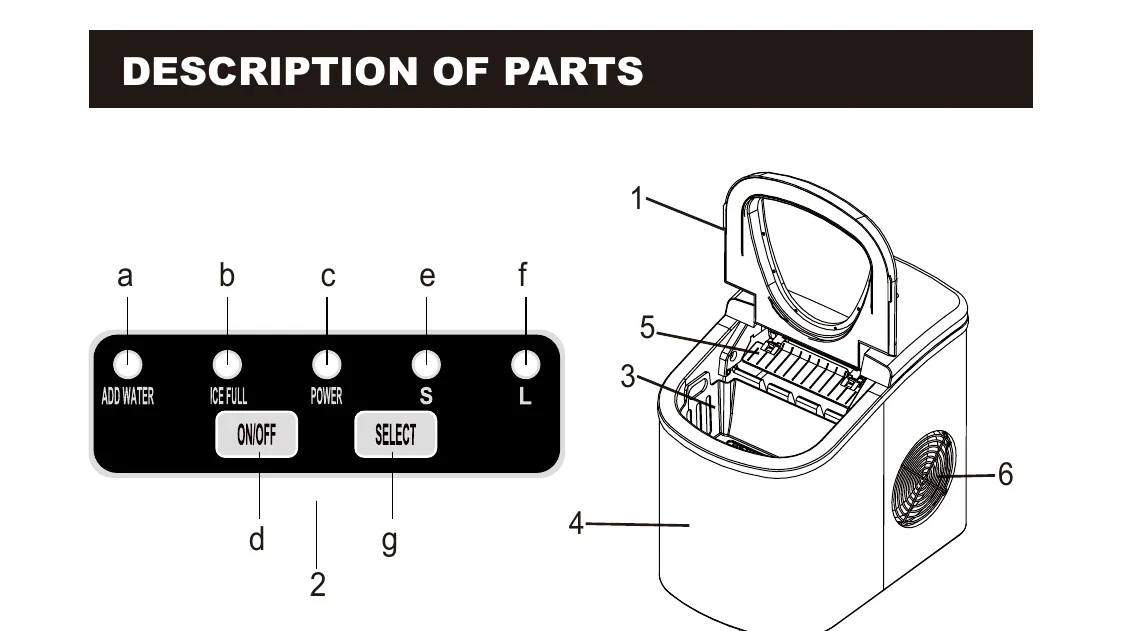

To Use Your Ice Maker:

  • Ensure the Drain Plug is closed and the Water Tube Screen is in place.
  • Plug the Ice Maker into a wall outlet and wait for the green power indicator light to blink.
  • Open the Cover and remove the Ice Basket.
  • Fill the Water Reservoir, not above the MAX level.
  • Replace the Ice Basket and close the Cover.
  • Press the Power Button and select ice size using the Select Button.
  • The first ice cycle takes 8-13 minutes.
  • Remove ice with the Ice Scoop when the 'Ice Full' light is on.
  • Add water when the 'Add Water' light illuminates.
  • Transfer ice to a freezer after use.

Troubleshooting and error codes

PROBLEM POSSIBLE CAUSES SOLUTION
"ADD WATER" indicator light turns on. Low water level or lack of water. Add water and the icemaker will operate automatically.
There is no indication on the control panel. Disconnection of plug. Check that the plug is plugged into the electrical outlet.
"Ice Full" and "Add Water" indicators light up simultaneously. Electrical Power Surge or There may be air in the lines or the lines are blocked. The water tank cannot detect water level. Turn off the icemaker, pull out the electric plug, fill it with water if needed, replace the plug and then restart the unit. or Inspect relative parts; remove the drain cap on the back of the unit and drain out a small amount of water. Replace the drain cap and attempt to use the unit again. or Check if ice is blocking the ice pusher. Turn off the unit; let the ice melt and restart.
The "Ice Full" indicator light is on. The ice basket is full. Remove ice from the ice storage basket to make more.
The unit does not operate. Power is not being supplied to the unit. The ambient temperature or the water temperature is too high. Plug the unit into a standard 110/120 Volt, 60 Hertz power source. Please run the icemaker in temperatures below 90°F and/or pour colder water into the water reservoir.
Ice blockage. No ice is being made. Making ice takes too much time. Turn off the machine. Start the machine after the ice block melts. Or change the size selector to small ice cubes.
The icemaking cycle seems normal but no ice is produced. There is refrigerant leakage. A pipe in the cooling system is blocked. Consult a qualified technician or call Customer Service.

Troubleshooting and error codes

PROBLEM POSSIBLE CAUSES SOLUTION
"ADD WATER" indicator light turns on. Low water level or lack of water. Add water and the icemaker will operate automatically.
There is no indication on the control panel. Disconnection of plug. Check that the plug is plugged into the electrical outlet.
"Ice Full" and "Add Water" indicators light up simultaneously. Electrical Power Surge or There may be air in the lines or the lines are blocked. The water tank cannot detect water level. Turn off the icemaker, pull out the electric plug, fill it with water if needed, replace the plug and then restart the unit. or Inspect relative parts; remove the drain cap on the back of the unit and drain out a small amount of water. Replace the drain cap and attempt to use the unit again. or Check if ice is blocking the ice pusher. Turn off the unit; let the ice melt and restart.
The "Ice Full" indicator light is on. The ice basket is full. Remove ice from the ice storage basket to make more.
The unit does not operate. Power is not being supplied to the unit. The ambient temperature or the water temperature is too high. Plug the unit into a standard 110/120 Volt, 60 Hertz power source. Please run the icemaker in temperatures below 90°F and/or pour colder water into the water reservoir.
Ice blockage. No ice is being made. Making ice takes too much time. Turn off the machine. Start the machine after the ice block melts. Or change the size selector to small ice cubes.
The icemaking cycle seems normal but no ice is produced. There is refrigerant leakage. A pipe in the cooling system is blocked. Consult a qualified technician or call Customer Service.
