Brand: GARDENA
Category: Timer
Manual Type:
Language:
Manual for C 14 - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 1:56 p.m.
Manual Publish Date: 1999-09-01
Warranty Summary
GARDENA guarantees this product for 2 years from the date of purchase, covering material or manufacturing faults.
Preparation for Use:

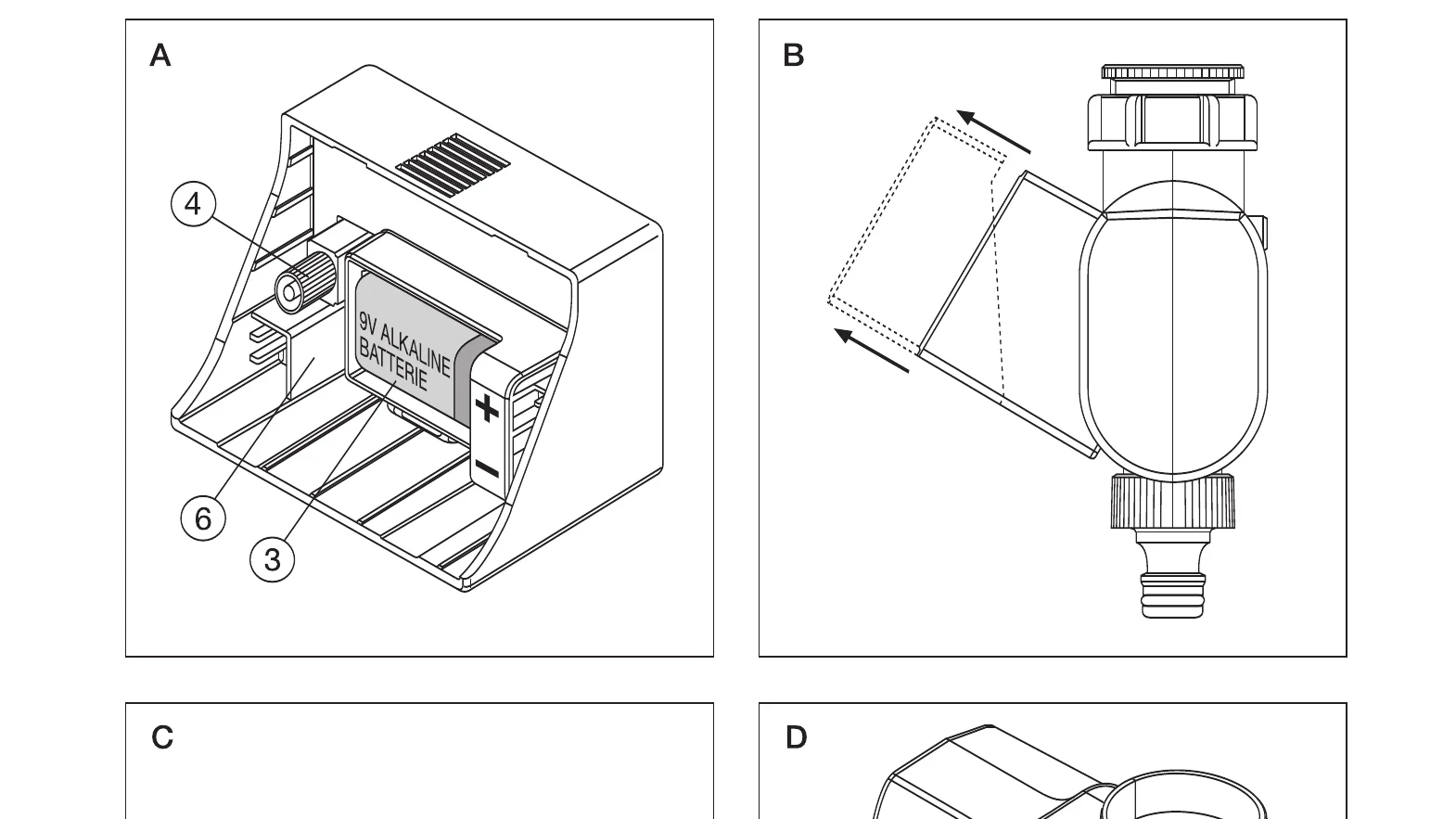

- Insert the 9V alkaline battery.
- Connect the Water Timer to the tap.
- Set the watering program.
- Enter the current date and time.
- Enter the starting time for watering.
- Choose a program from the program overview table.
- Confirm your settings.
Troubleshooting and error codes
| Fault | Possible Cause | Remedy |
|---|---|---|
| Not able to open the Water Timer using the "On/Off-man." function | Battery power too low. | Insert a new alkaline battery. |
| Tap turned off. | Turn on tap. | |
| Watering not initiated | Battery power too low. | Insert a new alkaline battery. |
| Data input / changes made while the program was starting or immediately before. | Input data or make changes before or after the starting times you have chosen. | |
| Tap turned off. | Turn on tap. | |
| Soil Moisture Sensor or Rain Sensor indicate sufficient moisture. | If dry, check setting/ position of the Soil Moisture Sensor or Rain Sensor. | |
| Battery flat after working for a short time | Not an alkaline battery. | Use an alkaline battery. |
Troubleshooting and error codes
| Fault | Possible Cause | Remedy |
|---|---|---|
| Not able to open the Water Timer using the "On/Off-man." function | Battery power too low. | Insert a new alkaline battery. |
| Tap turned off. | Turn on tap. | |
| Watering not initiated | Battery power too low. | Insert a new alkaline battery. |
| Data input / changes made while the program was starting or immediately before. | Input data or make changes before or after the starting times you have chosen. | |
| Tap turned off. | Turn on tap. | |
| Soil Moisture Sensor or Rain Sensor indicate sufficient moisture. | If dry, check setting/ position of the Soil Moisture Sensor or Rain Sensor. | |
| Battery flat after working for a short time | Not an alkaline battery. | Use an alkaline battery. |
