Brand: GFA

Category: Industrial Door Operator

Manual Type:

Language:

Uploaded: April 8, 2025, 1:52 p.m.

Manual Publish Date: 2013-10-01

Warranty Summary

No warranty period or warranty information is mentioned in this manual.
Download Manual

Basic Operation Summary:

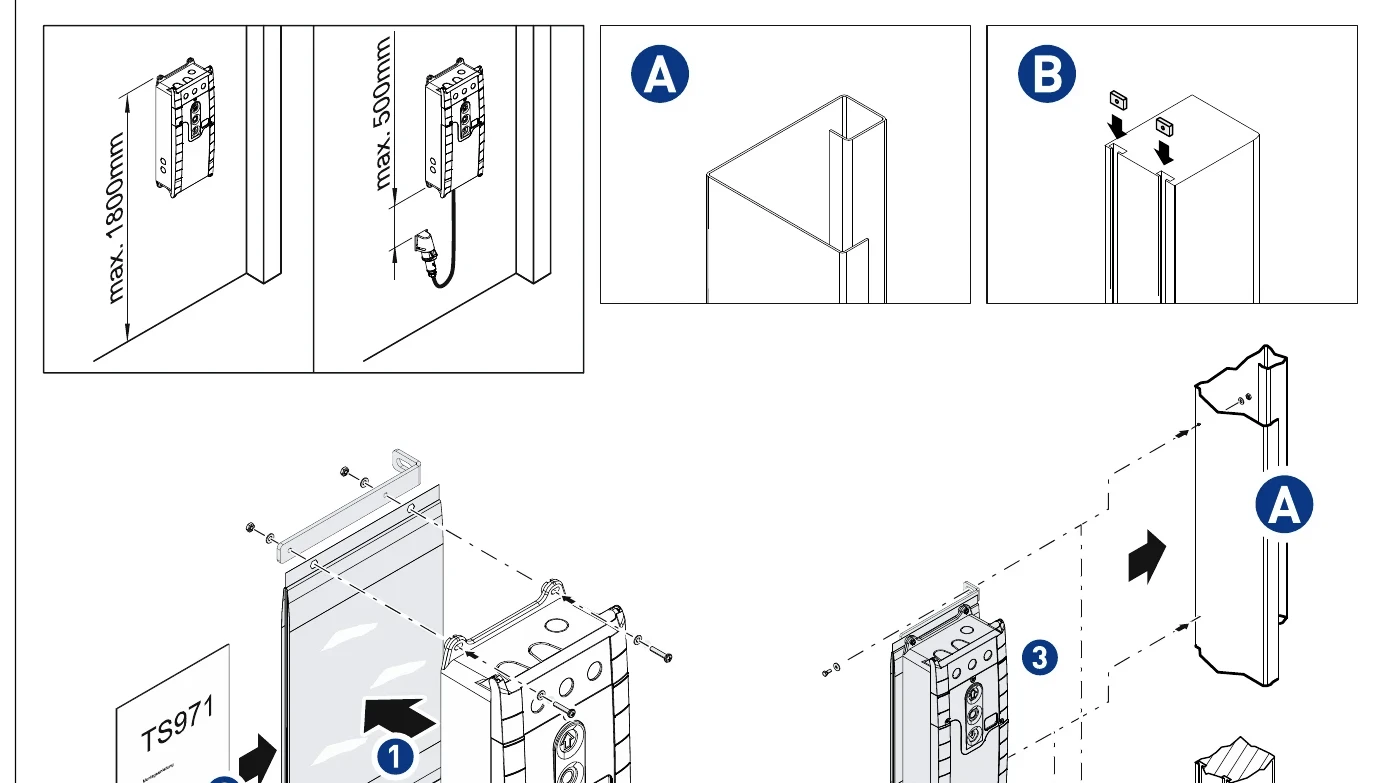

  1. Starting Up: Plug-in or switch on the mains supply line.
  2. Rapid Adjustment of Limits (DES):
    • Check rotating direction.
    • Move to final limit position open and save.
    • Move to final limit position close and save.
  3. Control Programming: Access control programming menus after rapid adjustment of limit switches.
  4. Operating Modes: Select desired door operating mode from the menu (Hold-to-run, Self-hold, etc.).
  5. Door Positions & Functions: Adjust door positions, safety functions, and other parameters via the menu.

Troubleshooting and error codes

Status code Fault description Measures for fault correction
F 1.2
 Terminals X2.1 – X2.2 are open. Slack-rope/pass-door contact is open. Check door safety switch. Check whether the connection cable is connected.
F 1.3
 Safety circuit is opened. Emergency manual operation has been activated. Thermal protection of the motor has tripped. Check emergency manual operation. Check for overload or stalling of the drive unit.
F 1.4
 Terminals X3.1 – X3.2 are open. Emergency stop has been activated. Check emergency stop. Check whether the connection cable is connected.
F 1.6
 Faulty "WSD" radio transmission. Change "WSD" door module batteries. Switch control off and on.
F 1.7
 Faulty "Entry sense" switch. Contact resistances are too high. Faulty entry sense installation. Open and close pass-door. Check resistance. Check pass-door installation.
F 1.8
 Entry sense input (X2.1 - X2.2) faulty. Switch control off and on. Replace control if necessary.
F 1.9
 "WSD" door module batteries are too low. Change "WSD" door module batteries.
F 2.0
 No safety edge is detected. Check the wiring of the safety edge system. Check whether the "WSD" is correctly functioning.
F 2.1
 Terminals X6.1 – X6.2 are open. Photo cell has been activated. Check alignment of the photo cell. Check connection cable. Replace photo cell if necessary.
F 2.2
 Maximum number of reversing movements for door through safety edge system activation has been reached. (Only with automatic closing) Obstacles in the door travel path. Check whether the safety edge system is correctly functioning.
