Brand: GRACO
Category: Car Seat
Manual Type:
Language:
Manual for ISPB057BB - Troubleshooting and error codes + PDF Download
Uploaded: March 29, 2025, 7:49 p.m.
Manual Publish Date: 2011-03-01
Warranty Summary
For warranty information, contact Graco at 1-800-345-4109 or www.gracobaby.com.

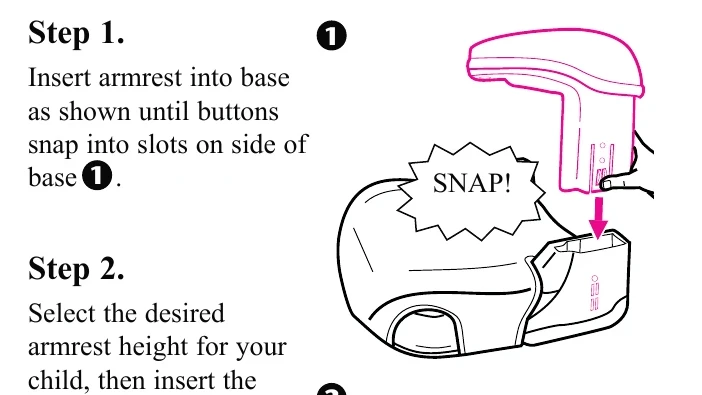

- Insert armrests into the base until they snap into place.
- Adjust armrest height using height adjustment screws.
- Attach armrest covers (on certain models).
- Assemble back support if applicable, by attaching lower back support pad and connecting head support and lower back support pieces.
- Attach backrest to the base using U-shaped hooks and push backrest up.
- Place booster seat in vehicle, ensuring it faces forward and using lap/shoulder belt system.
- Secure child in booster seat, positioning shoulder belt correctly through the shoulder belt guide and lap belt low and snug on hips.
- Adjust head support height so bottom of headrest is even with child's shoulders.
Troubleshooting and error codes
| Problem | Solution |
|---|---|
| Armrests not securely attached | Ensure buttons snap into slots and check by pulling up on armrests. |
| Back support not assembled correctly | Follow step-by-step instructions for back support assembly, ensuring pieces snap together and straps are attached. |
| Shoulder belt not positioned correctly | Position shoulder belt through the shoulder belt guide and adjust head support height if needed. |
Troubleshooting and error codes
| Problem | Solution |
|---|---|
| Armrests not securely attached | Ensure buttons snap into slots and check by pulling up on armrests. |
| Back support not assembled correctly | Follow step-by-step instructions for back support assembly, ensuring pieces snap together and straps are attached. |
| Shoulder belt not positioned correctly | Position shoulder belt through the shoulder belt guide and adjust head support height if needed. |
