Manual for AIR BOLT - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 1:44 p.m.
Warranty Summary
HALO warrants its products to be free from defects in material and workmanship under normal use for 90 days from purchase.

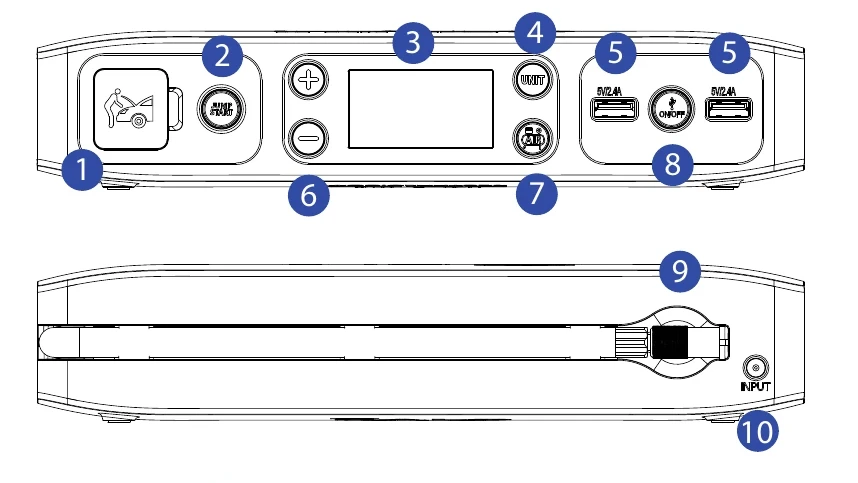

Basic Operations:
- Charging: Use provided adapters to charge the HALO AIR BOLT.
- Jump Starting: Connect jumper cables, attach clamps to battery terminals, and press Jump Start button.
- Air Compressor: Attach air hose and nozzle, set desired pressure, and turn on compressor.
- USB Charging: Connect USB devices to USB output ports and turn on USB power.
- Floodlight: Press floodlight button to turn on floodlight or emergency light.
Troubleshooting and error codes
| Condition | Potential Cause | Solution |
|---|---|---|
| HALO BOLT AIR Jump Start button has been pressed but nothing happens | The USB ON/OFF Button or the Air Compressor ON/OFF Button has been pressed. | The jump start output can not be used in conjunction with the USB output or air compressor modes. Ensure that both USB and AIR Compressor modes are off. |
| HALO BOLT AIR displays a red "BOLT TOO LOW" message | The HALO BOLT AIR is not sufficiently charged to jump start the vehicle. | Recharge the HALO BOLT AIR and verify at least 50% charged. Then try the jump start process again. |
| HALO BOLT AIR Jump Start button flashes red | The jumper cables have not been properly connected to the vehicle battery. | Check the jumper cables and ensure that the red clamp is connected to the positive terminal (+) and the black clamp is connected to the negative terminal (-). |
| HALO BOLT AIR Jump Start button flashes green continuously | The HALO BOLT AIR is waiting to be connected to a battery or a SAFETY CHECK FAIL has been triggered. | Check the jumper cables and ensure they are properly connected to the battery. If the SAFETY CHECK FAIL indicator is triggered during the jump start process, it is recommended that you consult with a certified mechanic. |
| HALO BOLT AIR displays a yellow "TEMP" message | The HALO BOLT AIR has detected a low or high temperature condition. | Disconnect the HALO BOLT AIR and allow unit to acclimate to temperature operating range (0°F-120°F). |
| HALO BOLT AIR displays a green "VEHICLE BATTERY OK" message | The HALO BOLT AIR detects that it is connected to a vehicle battery with a normal starting voltage. | It is recommended that you consult with a certified mechanic. |
| HALO BOLT AIR Shuts off unexpectedly | The HALO BOLT AIR detects that it is connected to a vehicle battery that does not require a jump start. This could indicate that the vehicle battery or other component is faulty. | It is recommended that you consult with a certified mechanic. |
| HALO BOLT AIR Jump Start and On/Off button flashes red and blue | This could occur when attempting to jump start a vehicle while other electrical components (i.e. headlights, heater, radio, etc.) are on. The vehicle battery may be faulty. | Turn off your headlights and any other components that may drain your car battery and try the jump start process again. It is recommended that you consult with a certified mechanic. |
Troubleshooting and error codes
| Condition | Potential Cause | Solution |
|---|---|---|
| HALO BOLT AIR Jump Start button has been pressed but nothing happens | The USB ON/OFF Button or the Air Compressor ON/OFF Button has been pressed. | The jump start output can not be used in conjunction with the USB output or air compressor modes. Ensure that both USB and AIR Compressor modes are off. |
| HALO BOLT AIR displays a red "BOLT TOO LOW" message | The HALO BOLT AIR is not sufficiently charged to jump start the vehicle. | Recharge the HALO BOLT AIR and verify at least 50% charged. Then try the jump start process again. |
| HALO BOLT AIR Jump Start button flashes red | The jumper cables have not been properly connected to the vehicle battery. | Check the jumper cables and ensure that the red clamp is connected to the positive terminal (+) and the black clamp is connected to the negative terminal (-). |
| HALO BOLT AIR Jump Start button flashes green continuously | The HALO BOLT AIR is waiting to be connected to a battery or a SAFETY CHECK FAIL has been triggered. | Check the jumper cables and ensure they are properly connected to the battery. If the SAFETY CHECK FAIL indicator is triggered during the jump start process, it is recommended that you consult with a certified mechanic. |
| HALO BOLT AIR displays a yellow "TEMP" message | The HALO BOLT AIR has detected a low or high temperature condition. | Disconnect the HALO BOLT AIR and allow unit to acclimate to temperature operating range (0°F-120°F). |
| HALO BOLT AIR displays a green "VEHICLE BATTERY OK" message | The HALO BOLT AIR detects that it is connected to a vehicle battery with a normal starting voltage. | It is recommended that you consult with a certified mechanic. |
| HALO BOLT AIR Shuts off unexpectedly | The HALO BOLT AIR detects that it is connected to a vehicle battery that does not require a jump start. This could indicate that the vehicle battery or other component is faulty. | It is recommended that you consult with a certified mechanic. |
| HALO BOLT AIR Jump Start and On/Off button flashes red and blue | This could occur when attempting to jump start a vehicle while other electrical components (i.e. headlights, heater, radio, etc.) are on. The vehicle battery may be faulty. | Turn off your headlights and any other components that may drain your car battery and try the jump start process again. It is recommended that you consult with a certified mechanic. |
