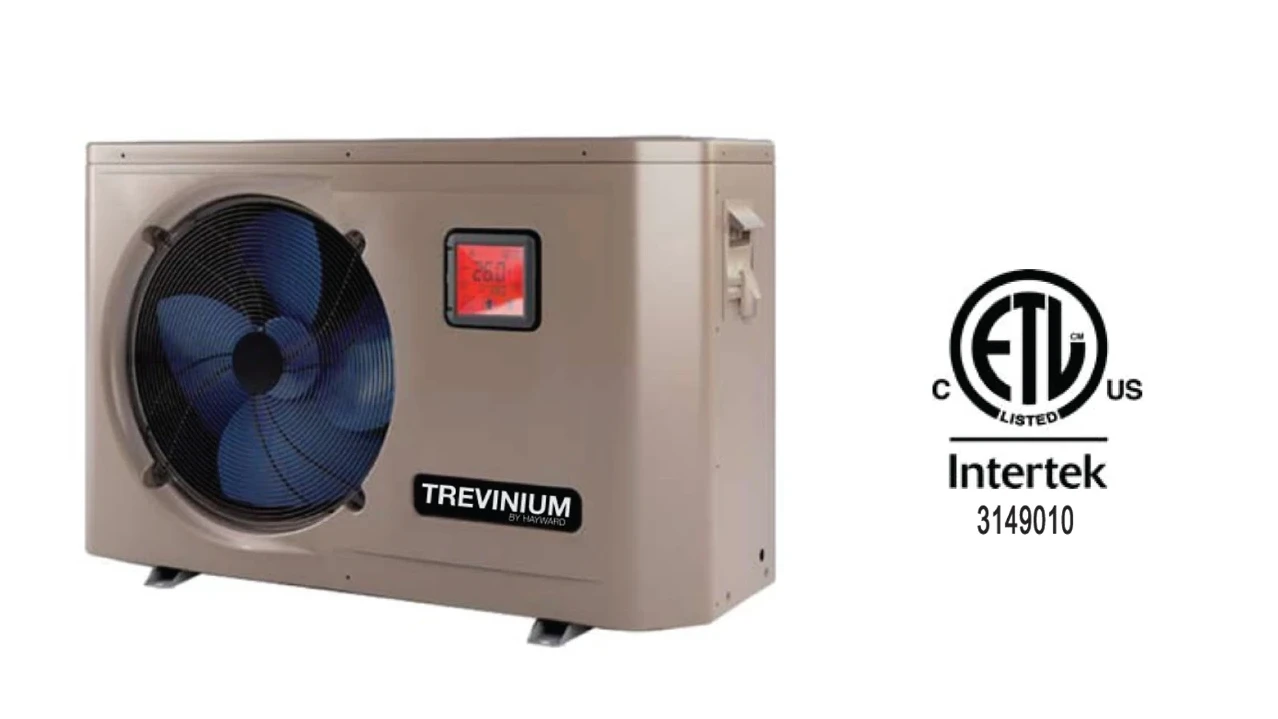

Manual for HP55TR - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 1:43 p.m.
Warranty Summary
The HAYWARD heat pump pool heater is warranted for one (1) year for parts and labor, with extended warranties on the compressor and heat exchanger components, valid in Canada only.
Usage and Operation Summary:
- LCD Controller: User-friendly interface for setting and monitoring heat pump functions.
- Switching Modes: Easily switch between cooling and heating modes via the controller.
- Parameter Setting: Adjust various parameters through the controller interface for optimal performance.
- Clock and Timer: Set clock and timer functions for scheduled operation.
- Keylock: Lock the keypad to prevent unauthorized changes.
- Temperature Display Conversion: Switch between Celsius and Fahrenheit display.
Troubleshooting and error codes
| Malfunction | LCD Controller | Reason | Resolution |
|---|---|---|---|
| Water inlet temp. Sensor failure | P01 | The sensor is open or short circuit | Check or change the sensor |
| Water outlet temp. Sensor failure | P02 | The sensor is open or short circuit | Check or change the sensor |
| Coil sensor failure | P05 | The sensor is open or short circuit | Check or change the sensor |
| Ambient sensor failure | P04 | The sensor is open or short circuit | Check or change the sensor |
| Temp. differential between water-in and water-out is too large | E06 | Water flow volume not enough, water pressure difference is too low | Check the water flow volume, or system obstruction. |
| Anti freezing under cooling mode | E07 | Outlet water is too low | Check the water flow volume or outlet water temp. sensor |
| The first class freezing protection in winter | E19 | Ambient or inlet water temp. is too low | |
| The second class freezing protection in winter | E29 | Ambient or inlet water temp. is too lower | |
| High pressure protect | E01 | Gas System pressure is too high | Check through the high pressure switch and the gas system pressure to judge whether the gas loop is blocked or the freon is suitable |
| Low pressure protect | E02 | Gas System pressure is too low | Check through the low pressure switch and the gas system pressure to judge whether there is leaking or the freon is not enough; |
| Flow switch failure | E03 | No water/little water in water system. | Check the water flowvolume, water pump and flowswitch is failure ornot |
| 3times water-in and water-out temp.differece protectionin 30 minutes | E06 | Water flowrate not enough | Check the water flow rate, or water system is jammed or not |
| Defrosting | Defrost Code Display | ||
| Communication failure | E08 | LED controller and The PCB connection failure | Check the wire connection |
