Brand: Honeywell
Category: Security System
Manual Type:
Language:
Manual for HWF2V-COM - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 1:55 p.m.
Manual Publish Date: 2018-09-18
Warranty Summary
For the latest warranty information, please refer to the provided Honeywell website link.

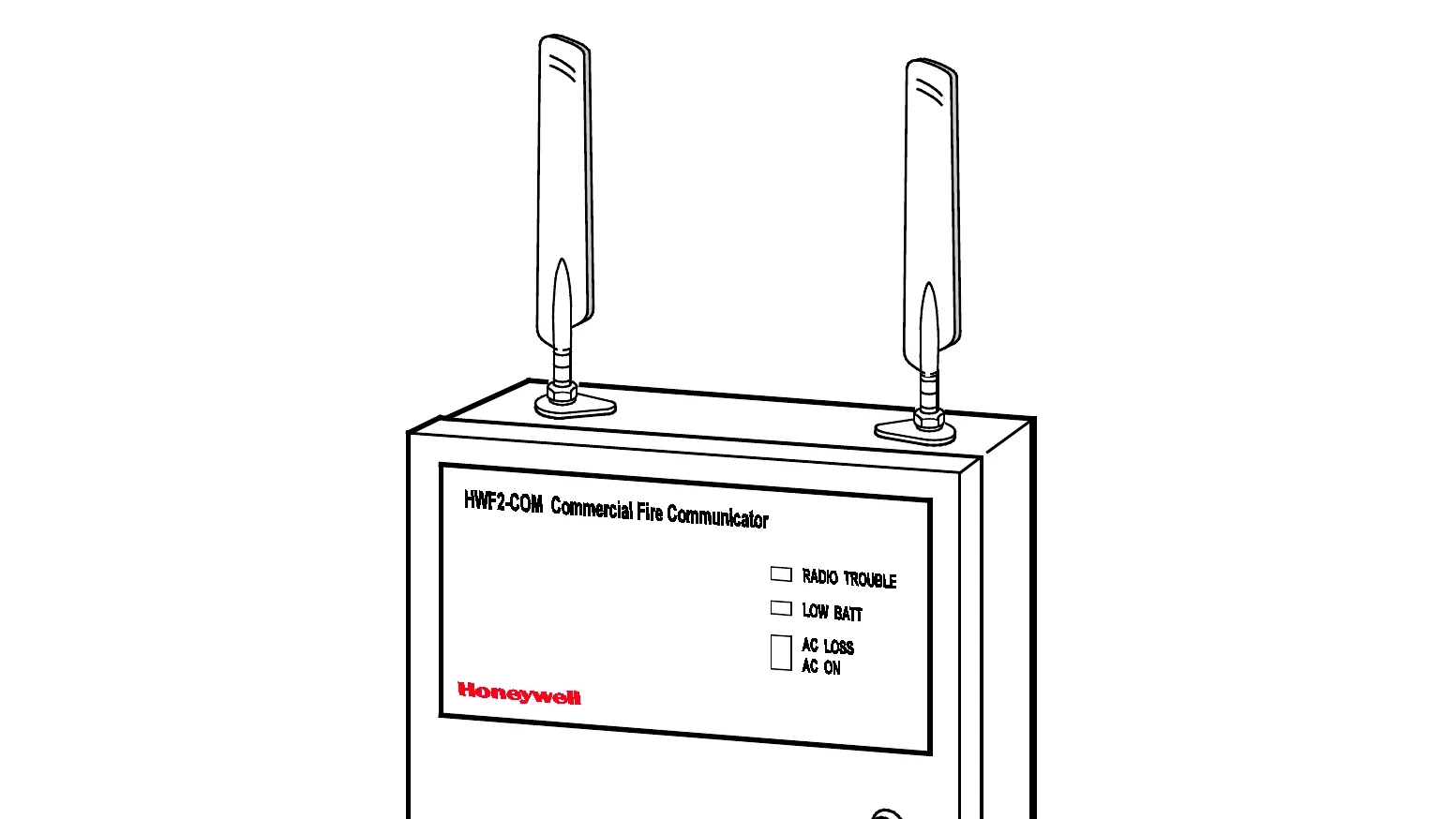

The Honeywell HWF2V-COM is a commercial Fire Alarm communicator that upgrades fire panels using POTS to internet or cellular communication for central station connection. It connects to a fire panel's DACT and offers Cellular, IP, or IP primary/cellular backup reporting paths. The device monitors AC power and battery conditions, delivering signals to Honeywell's AlarmNet Network Control Center. During operation, it replaces the fire panel's POTS line, detects off-hook conditions, provides a dial tone, and captures contact ID reports for transmission to the central station over the internet or cellular network.
Troubleshooting and error codes
| Fault Condition | Indication to Fire Panel |
|---|---|
| PowerBoost1 fault | Telco 2 is cut. |
| AC Loss | Telco 2 is cut. |
| Power Supply fault | Telco 2 is cut. |
| Low Battery | Telco 2 is cut. |
| Loss of ECP (Wiring or Addressing) | Telco 1 and 2 are cut. |
| Radio not registered | Telco 1 and 2 are cut. |
| Communicator fault | Telco 1 and 2 are cut. |
| Failure of the communications path when IP only or Cell only is programmed as a communications path. | Telco 1 and 2 are cut. |
| Failure of both communications paths when IP&Cell is programmed as a communications path. | Telco 1 and 2 are cut. |
| Failure of one of the communication paths when IP and Cell are enabled as the communications path. | Telco 2 is cut. |
| Dialer Capture Module buffer is full. | Hang up. (Panel will retry, giving the buffer a chance to empty.) |
Troubleshooting and error codes
| Fault Condition | Indication to Fire Panel |
|---|---|
| PowerBoost1 fault | Telco 2 is cut. |
| AC Loss | Telco 2 is cut. |
| Power Supply fault | Telco 2 is cut. |
| Low Battery | Telco 2 is cut. |
| Loss of ECP (Wiring or Addressing) | Telco 1 and 2 are cut. |
| Radio not registered | Telco 1 and 2 are cut. |
| Communicator fault | Telco 1 and 2 are cut. |
| Failure of the communications path when IP only or Cell only is programmed as a communications path. | Telco 1 and 2 are cut. |
| Failure of both communications paths when IP&Cell is programmed as a communications path. | Telco 1 and 2 are cut. |
| Failure of one of the communication paths when IP and Cell are enabled as the communications path. | Telco 2 is cut. |
| Dialer Capture Module buffer is full. | Hang up. (Panel will retry, giving the buffer a chance to empty.) |
