Manual for XNX-AM SERIES - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 1:56 p.m.
Manual Publish Date: 2019-09-19
Warranty Summary
Honeywell Analytics warrants the XNX Universal Transmitter to be free from defects in material or workmanship for 36 months from the date of shipment.

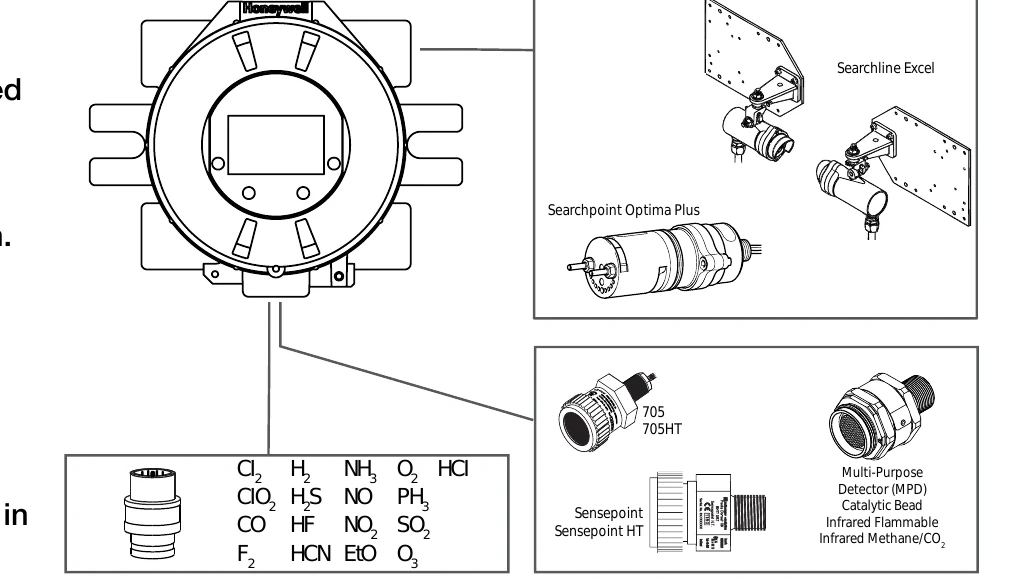

The Honeywell XNX Universal Transmitter is a comprehensive gas detection system designed for hazardous locations. It uses multiple sensor technologies (catalytic bead, electrochemical (EC), or infrared (IR)) to detect toxic, flammable gases and oxygen depletion. Operation involves installation, sensor mounting, wiring, configuration through the front panel or HART, calibration, and maintenance. The device features a user-friendly interface with magnetic switches and a display for status and settings. Regular bump tests and calibrations are recommended to ensure proper operation and safety.
Troubleshooting and error codes
| Warning | Description | Action For Resolution |
|---|---|---|
| W001 | XNX® 24 VDC Supply Bad | Check wire of 24V power supply to XNX as well as power supply operation. |
| W002 | XNX Temperature Error | Check location for heat sources. Fit with sunshade or other protection. Change location of XNX. Check temperature in Info->Transmitter Status to ensure temperature is being measured properly. |
| F101 | Unexpected Sensor Reset | If repeated, check supply voltage, check cable loop impedance, check terminal connections |
| F103 | XNX Temperature Error | Check location for heat sources. Fit with sunshade or other protection. Change the transmitter’s location. Check temperature in Info->Transmitter Status to ensure temperature is being measured properly. |
Troubleshooting and error codes
| Warning | Description | Action For Resolution |
|---|---|---|
| W001 | XNX® 24 VDC Supply Bad | Check wire of 24V power supply to XNX as well as power supply operation. |
| W002 | XNX Temperature Error | Check location for heat sources. Fit with sunshade or other protection. Change location of XNX. Check temperature in Info->Transmitter Status to ensure temperature is being measured properly. |
| F101 | Unexpected Sensor Reset | If repeated, check supply voltage, check cable loop impedance, check terminal connections |
| F103 | XNX Temperature Error | Check location for heat sources. Fit with sunshade or other protection. Change the transmitter’s location. Check temperature in Info->Transmitter Status to ensure temperature is being measured properly. |
