Warranty Summary

Hotpoint WDAL 8640 includes a 12 months parts and labour manufacturer's guarantee, with options to extend.

Turn on the washer-dryer using the ON/OFF button.
Load laundry and close the door.
Set WASH CYCLE knob to the desired program.
Set washing temperature.
Set drying cycle if needed.
Add detergent and additives.
Select desired functions.
Start cycle with START/PAUSE button.

To cancel, press START/PAUSE and select a new cycle. At the end, END indicator lights up and door unlocks.

Troubleshooting and error codes

Problem	Possible causes / Solutions
The machine does not switch on.	The appliance is not plugged into the socket fully, or not enough to make contact. There is no power to the socket, or the fuse has blown in the mains plug.
The wash cycle does not start.	The door is not closed properly. The ON/OFF button has not been pressed. The START/PAUSE button has not been pressed. The water tap has not been turned on to allow water to flow into the machine.
The machine does not fill with water or the indicator light for the first wash cycle stage flashes rapidly.	The water inlet hose is kinked. The water inlet hose is not connected to the water supply. The water pressure is too low. The water tap has not been turned on to allow water to flow into the machine. There is no water supply to the house. The inlet valve filter is blocked. The START/PAUSE button has not been pressed.
The machine continuously fills with water and continually drains away or Water left in the drum or Stuck on wash.	The top of the drain hose is too low - It must be fitted at a height between 65 and 100 cm from the floor (see "Installation”). The drain hose is connected incorrectly to the sink trap allowing water to run into the machine, the drain hose must be positioned higher than the bottom of the sink to prevent water flowing down the drain hose. The end of the drain hose has been pushed too far down the standpipe, the 'U' bracket should be fitted 100 mm from the end of the drain hose.
The machine does not drain or spin.	The Pump filter is blocked. The drain hose is kinked (see "Installation”). New Installation - The blanking cap or spigot has not been removed if connected under a sink. The drain hose or sink trap is blocked. The wash cycle does not include draining, some wash cycles require the drain phase to be started manually.
The machine does not heat or poor wash results.	The 'Temperature' selector knob is in the "*" position.
The programme takes too long.	Programme times will vary due to water pressure, the incoming water temperature and if the wash load goes out of balance. This will increase the programme times accordingly (see 'The machine wont spin properly' below).

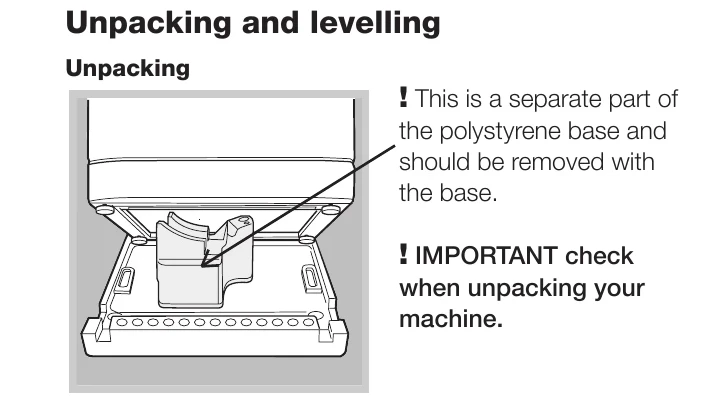

The machine vibrates a lot during the spin cycle.	The feet have not been adjusted, enabling the machine to rock. New Installation - Either the Transit Bolts including the plastic spacers, or the Polystyrene Packaging have not been removed when installing the machine. The machine is trapped between cabinets and/or walls. The load is in a slight out of balance condition and machine is spinning, but at a lower speed.
The washer-dryer does not dry.	The appliance is not plugged into the socket, or not enough to make contact. There has been a power failure. The appliance door is not shut properly. A DELAY TIMER has been set. DRYING is in the ⚠ position.
