Manual for Nautilus CC Plus - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 12:50 a.m.
Warranty Summary
No warranty information is provided in this manual.

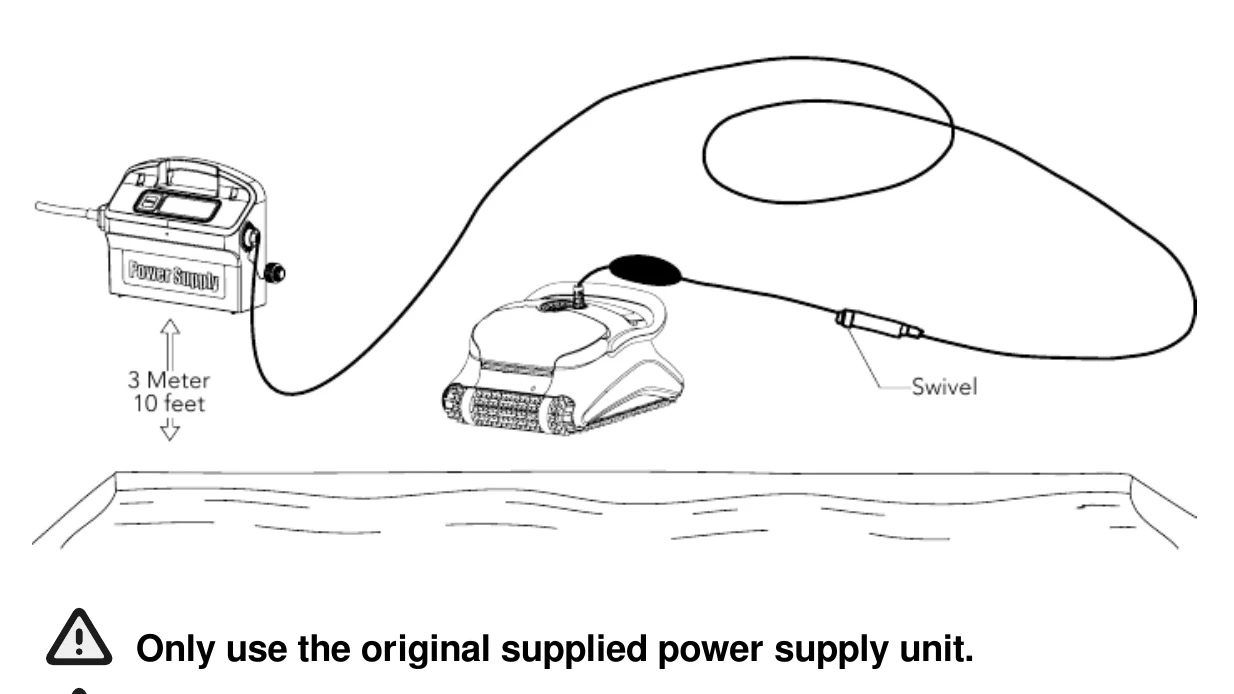

- Lay out the cable to cover the entire pool size, ensuring no twists or kinks.
- Place the robot pool cleaner gently into the pool water.
- Connect the floating cable to the power supply unit.
- Connect the power supply unit to a mains outlet.
- Turn the robot pool cleaner ON using the power switch.
- After cleaning, turn off the power, unplug, and gently remove the cleaner from the pool by its handle, not the cable.
Troubleshooting and error codes
| Symptom | Solution |
|---|---|
| Cable twisting or cable coils up | Check for any obstruction in the pool Remove excess cable from the pool Make sure filter cartridge is clean Straighten cable and lay it in the sun periodically |
| Robot pool cleaner is moving in circles or does not reach all pool areas | Check for foreign objects in moving parts Make sure filter elements are clean and that the filter doors are closed Make sure that there is enough cable laid out to cover the whole pool Before using the robot pool cleaner at the beginning of the season you should brush any algae from the floor and walls of the pool |
| Robot pool cleaner not sinking | Make sure the Wonder brushes or the combined brushes are soaked in water |
| Motor is not working | Check if the impeller is blocked Check if the drive system is blocked Electrical problem (power supply), check power source. If power source is in order, please contact your robot pool cleaner distributor |
| Robot pool cleaner flips on its side | Clean the filter cartridge |
Troubleshooting and error codes
| Symptom | Solution |
|---|---|
| Cable twisting or cable coils up | Check for any obstruction in the pool Remove excess cable from the pool Make sure filter cartridge is clean Straighten cable and lay it in the sun periodically |
| Robot pool cleaner is moving in circles or does not reach all pool areas | Check for foreign objects in moving parts Make sure filter elements are clean and that the filter doors are closed Make sure that there is enough cable laid out to cover the whole pool Before using the robot pool cleaner at the beginning of the season you should brush any algae from the floor and walls of the pool |
| Robot pool cleaner not sinking | Make sure the Wonder brushes or the combined brushes are soaked in water |
| Motor is not working | Check if the impeller is blocked Check if the drive system is blocked Electrical problem (power supply), check power source. If power source is in order, please contact your robot pool cleaner distributor |
| Robot pool cleaner flips on its side | Clean the filter cartridge |
