Warranty Summary

Mr IRONSTONE warrants this product to be free from defects in material and workmanship for 1 year from the original purchase date.
Download Manual

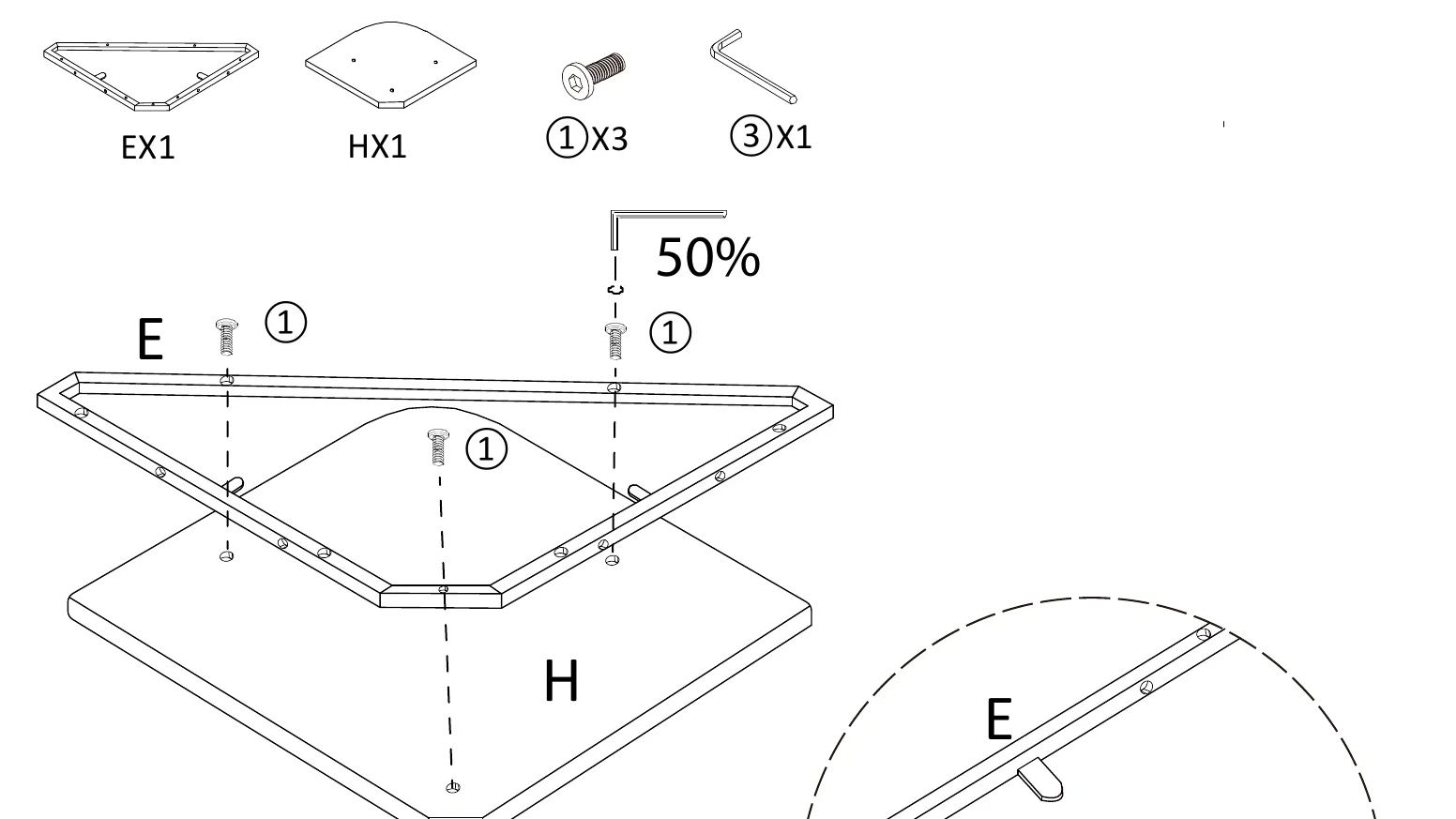

  1. Lay down the Middle Desktop and attach the Middle Frame using three screws (50% tightness).
  2. Place the Desktops in the right direction.
  3. Attach Leg Frames (B) to Middle Frame using four screws (50% tightness).
  4. Attach two Leg Frames (A) to Desktops using four screws (50% tightness).
  5. Attach four Bars (J) to Middle Frames and Leg Frames (A) using eight screws (50% tightness).
  6. Attach two Lower Frames (C) to Leg Frames (A) and (B) using eight screws (50% tightness).
  7. Tighten the three screws on Middle Desktop (H) to 100% tightness.
  8. Attach Connection Frame (D) to Leg Frames (B) using two screws (50% tightness).
  9. Attach six Feet to Leg Frames (A) and (B) and tighten all screws (100% tightness).
  10. Attach Monitor Shelf Brackets (I) to Monitor Shelf (G) using four screws and tighten the screws (100% tightness).
  11. Install Monitor Shelf to the Left or Right Desktop using four screws and tighten the screws (100% tightness).
  12. Ensure all screws are 100% tightened. Assembly complete.

Troubleshooting and error codes

Problem Possible Cause Solution
No troubleshooting table provided in the manual.

Troubleshooting and error codes

Problem Possible Cause Solution
No troubleshooting table provided in the manual.
