Manual for B760 GAMING PLUS WIFI - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 3:14 a.m.
Manual Publish Date: 2023-03
Warranty Summary
Warranty information is not explicitly mentioned in this manual.

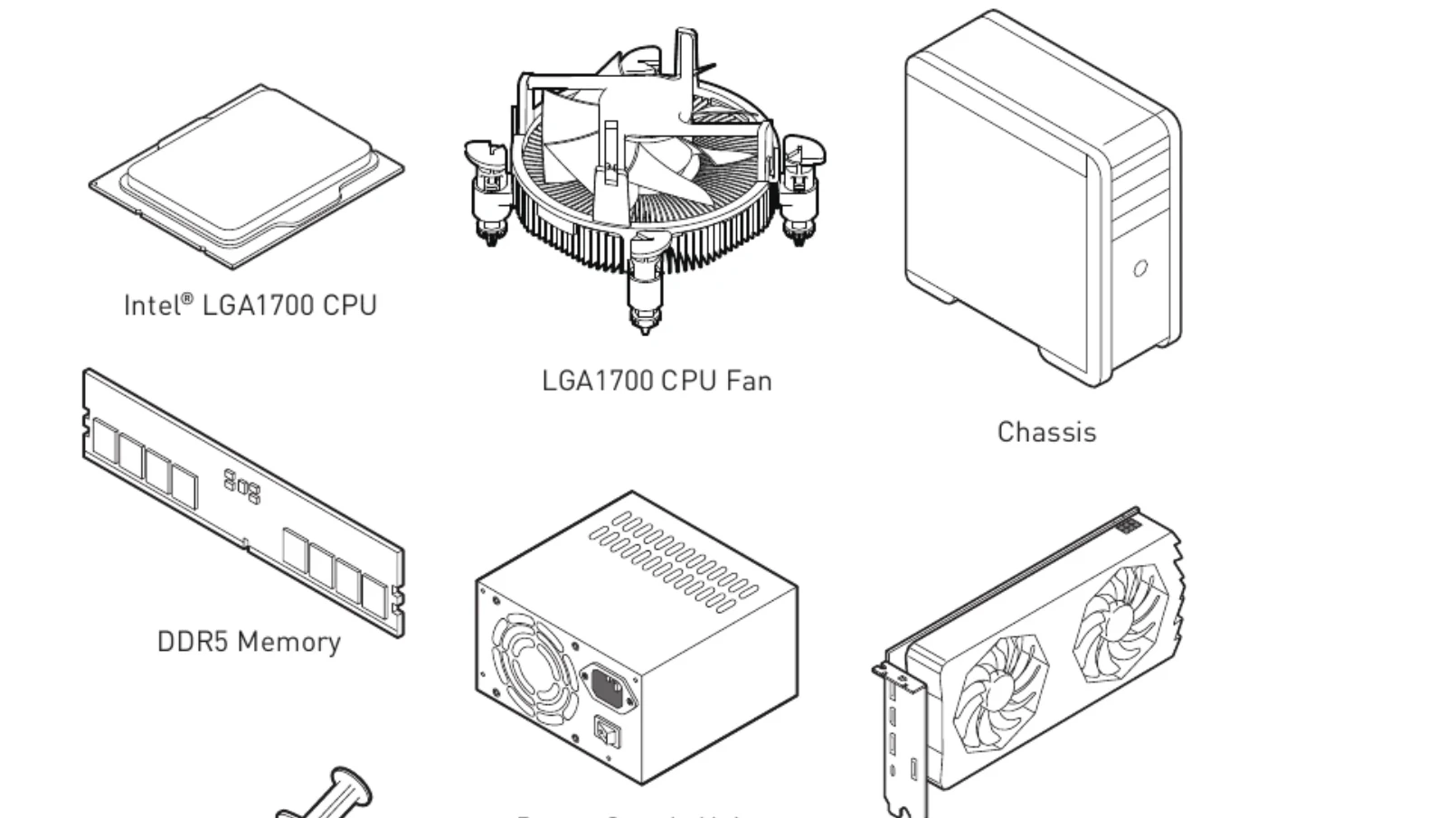

- Quick Start: Prepare tools and components.
- Installing a Processor: Follow the steps to install the CPU into the socket.
- Installing DDR5 memory: Install DDR5 memory modules in the DIMM slots.
- Connecting the Front Panel Header: Connect front panel connectors like power switch, reset switch, and LEDs.
- Installing the Motherboard: Mount the motherboard into the PC case.
- Connecting the Power Connectors: Connect ATX and CPU power connectors.
- Installing SATA Drives: Connect SATA data and power cables to SATA drives.
- Installing a Graphics Card: Install the graphics card into the PCIe slot and connect power if needed.
- Connecting Peripheral Devices: Connect keyboard, mouse, monitor, and speakers.
- Power On: Connect power cord and power on the system.
Troubleshooting and error codes
| LED | Description |
|---|---|
| CPU | Indicates CPU is not detected or fail. |
| DRAM | Indicates DRAM is not detected or fail. |
| VGA | Indicates GPU is not detected or fail. |
| BOOT | Indicates the booting device is not detected or fail. |
Troubleshooting and error codes
| LED | Description |
|---|---|
| CPU | Indicates CPU is not detected or fail. |
| DRAM | Indicates DRAM is not detected or fail. |
| VGA | Indicates GPU is not detected or fail. |
| BOOT | Indicates the booting device is not detected or fail. |
