Manual for PRO B650-P WIFI - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 1:52 p.m.
Warranty Summary
No warranty information is provided in this manual.
Quick Start Guide:

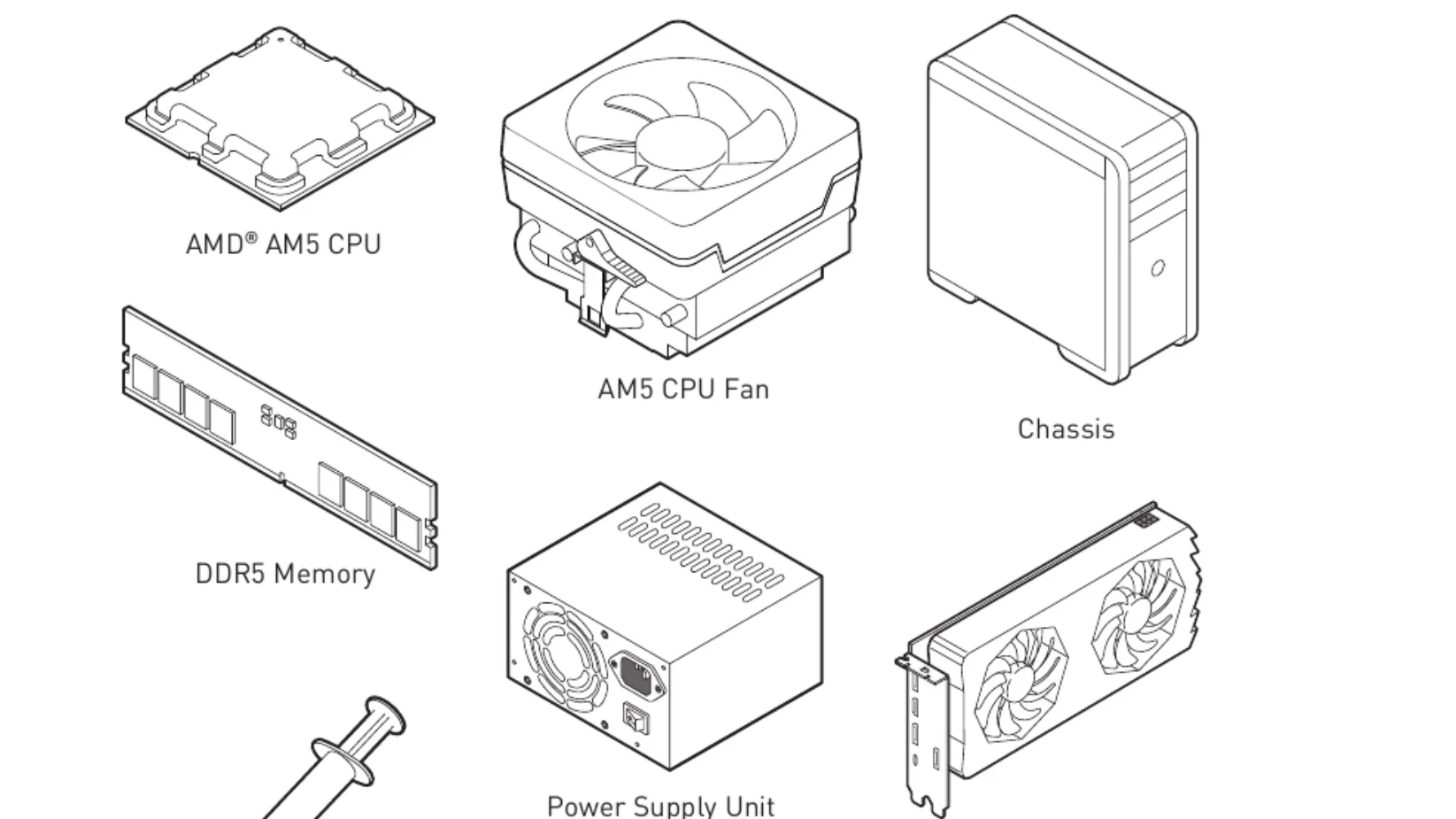

- Prepare tools and components (CPU, cooler, RAM, etc.).
- Case stand-off and collision notifications provided.
- Install Processor, DDR5 Memory, Graphics Card, SATA Drives.
- Connect Front Panel Header and Power Connectors.
- Install Motherboard into the case.
- Connect Peripheral Devices.
- Power On the system.
- Refer to detailed sections for each step and video demonstrations via provided URLs/QR codes.
Troubleshooting and error codes
| Link/Activity LED | Description | Speed LED | Speed |
|---|---|---|---|
| Off | No link | Off | 10 Mbps |
| Yellow | Linked | Green | 100~1000 Mbps |
| Blinking | Data activity | Orange | 2.5 Gbps |
Troubleshooting and error codes
| Link/Activity LED | Description | Speed LED | Speed |
|---|---|---|---|
| Off | No link | Off | 10 Mbps |
| Yellow | Linked | Green | 100~1000 Mbps |
| Blinking | Data activity | Orange | 2.5 Gbps |
