Manual for R88D-1SN10F-ECT - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 1:39 p.m.
Manual Publish Date: 2016-06-01
Warranty Summary
Omron warrants the Products to be free from defects in materials and workmanship for a period of twelve months from the date of sale.
This manual describes the installation and wiring methods for the OMRON R88D-1SN10F-ECT Servo Drive. Key operational aspects include:
- Installation: Follow safety precautions, install Servo Drive, Servomotor, and peripherals before wiring.
- Wiring: Ground appropriately, use correct tools and wiring procedures, ensuring no short circuits.
- Operation Check: Use specified Servomotor and Servo Drive combinations.
- Usage: Adhere to warnings for safe operation, including avoiding operating areas during operation and handling hot components.

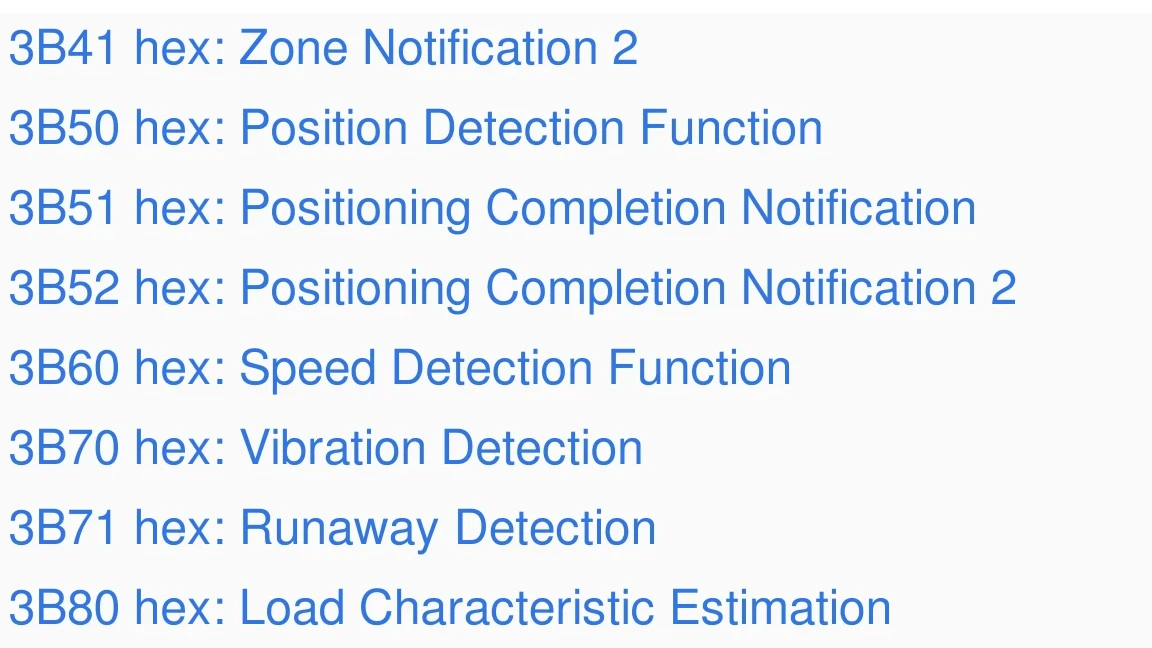

- Adjustment: Perform adjustments and parameter settings via Sysmac Studio for optimal performance.
- Troubleshooting: Use error displays and operation state for diagnostics.
Troubleshooting and error codes
| Error No. | Name | Cause | Measures |
|---|---|---|---|
| **12 00** | **Overvoltage Error** | The main circuit power supply voltage (P-N voltage) exceeded the operation guarantee range. | Input the correct voltage. |
| **13 00** | **Main Power Supply Undervoltage** | The main circuit power supply voltage fell below the operation guarantee range during Servo ON. | Wire correctly. |
| **14 00** | **Overcurrent Error** | The current flowing to the motor exceeded the protection level. | Correct the connection of the U, V, or W motor cable. |
| **15 00** | **Servo Drive Overheat** | The internal temperature of Servo Drive exceeded the circuit protection level. | Improve the ambient temperature and the cooling conditions of the Servo Drive. |
| **16 00** | **Overload Error** | The load ratio of Servo Drive or motor (4105-81 hex) exceeded 100%. | Take the following actions according to conditions. |
Troubleshooting and error codes
| Error No. | Name | Cause | Measures |
|---|---|---|---|
| **12 00** | **Overvoltage Error** | The main circuit power supply voltage (P-N voltage) exceeded the operation guarantee range. | Input the correct voltage. |
| **13 00** | **Main Power Supply Undervoltage** | The main circuit power supply voltage fell below the operation guarantee range during Servo ON. | Wire correctly. |
| **14 00** | **Overcurrent Error** | The current flowing to the motor exceeded the protection level. | Correct the connection of the U, V, or W motor cable. |
| **15 00** | **Servo Drive Overheat** | The internal temperature of Servo Drive exceeded the circuit protection level. | Improve the ambient temperature and the cooling conditions of the Servo Drive. |
| **16 00** | **Overload Error** | The load ratio of Servo Drive or motor (4105-81 hex) exceeded 100%. | Take the following actions according to conditions. |
