Manual for Zuma - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 1:58 p.m.
Manual Publish Date: 2001-11-01
Warranty Summary
Pacific Fitness Zuma has a limited residential warranty covering parts for 3-5 years, lifetime for frame & welds, and 1 year for upholstery, with labor covered for 1 year on certain components.

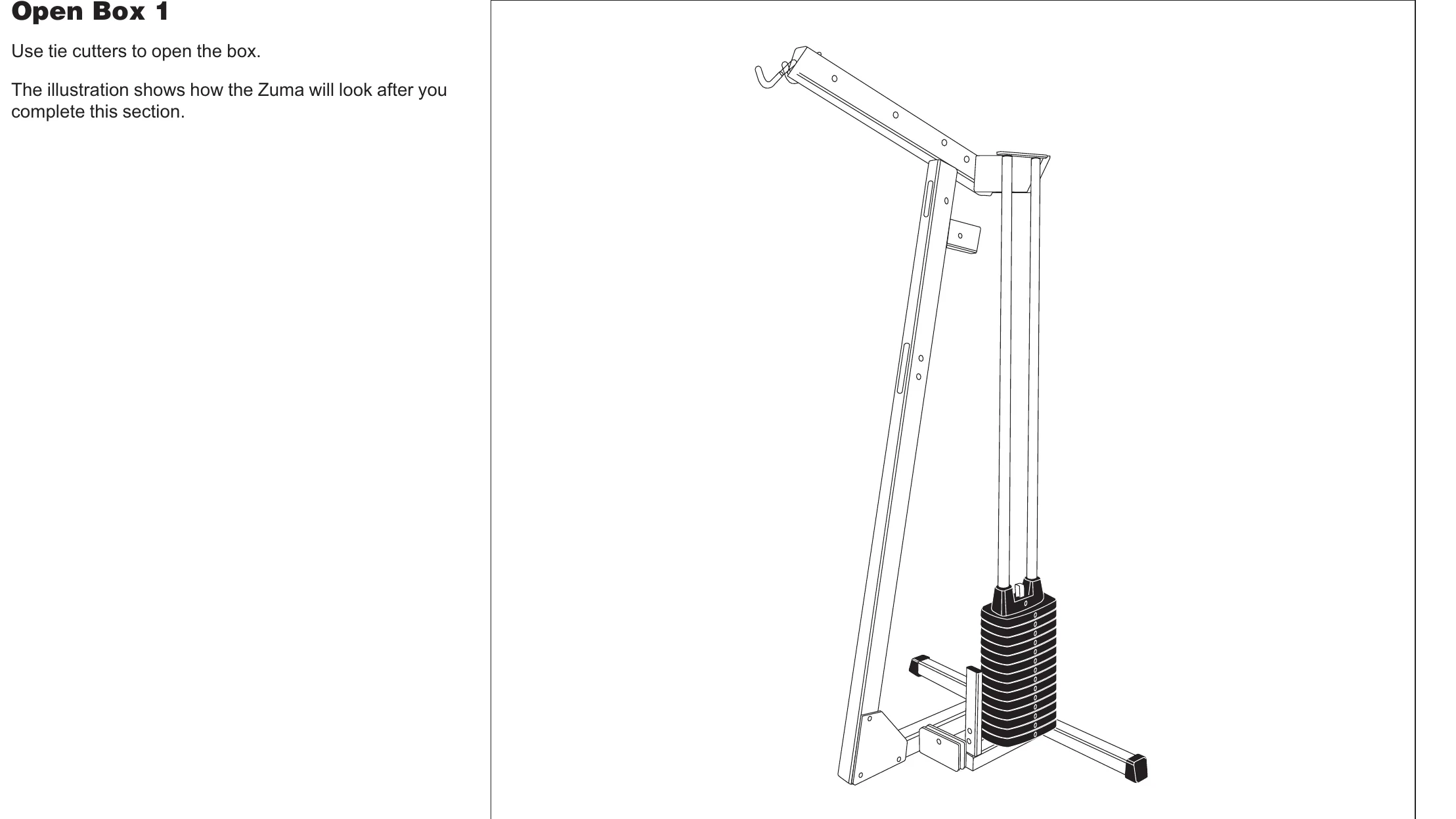

The Pacific Fitness Zuma is a strength-training fitness equipment. Operation involves using cables and weights to perform various exercises. The manual primarily focuses on assembly and maintenance, suggesting correct operation is achieved through proper assembly and adjustments. Key steps include:
- Unpacking and preparing components.
- Assembling the main frame, upright, and beams.
- Installing guide rods and weight stack.
- Attaching seat, press arm, and cable systems.
- Performing cable and selector stem adjustments.
- Regular maintenance including lubrication of guide rods.
Consult the manual for detailed assembly instructions and safety precautions before use.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| Top Cap Weight not resting squarely | Cable tension issue | Adjust Main Cable tension via Bumper Pad. |
| Cable rubs inside edges of pulleys | Cable alignment or tension issue | Check cable routing and adjust Main Cable tension. |
| Excess slack in Cable | Cable tension too loose | Tighten Main Cable tension via Bumper Pad. |
| Selector Stem contacts Weight Stack | Selector Stem angle incorrect | Adjust Selector Stem (Forward, Backward, or Vertical). |
| Weight Pin difficult to insert | Selector Stem misaligned vertically | Adjust Selector Stem Vertical Alignment. |
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| Top Cap Weight not resting squarely | Cable tension issue | Adjust Main Cable tension via Bumper Pad. |
| Cable rubs inside edges of pulleys | Cable alignment or tension issue | Check cable routing and adjust Main Cable tension. |
| Excess slack in Cable | Cable tension too loose | Tighten Main Cable tension via Bumper Pad. |
| Selector Stem contacts Weight Stack | Selector Stem angle incorrect | Adjust Selector Stem (Forward, Backward, or Vertical). |
| Weight Pin difficult to insert | Selector Stem misaligned vertically | Adjust Selector Stem Vertical Alignment. |
