Manual for ESP-ME3 - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 3:37 a.m.
Warranty Summary
Warranty information is not mentioned in this manual.

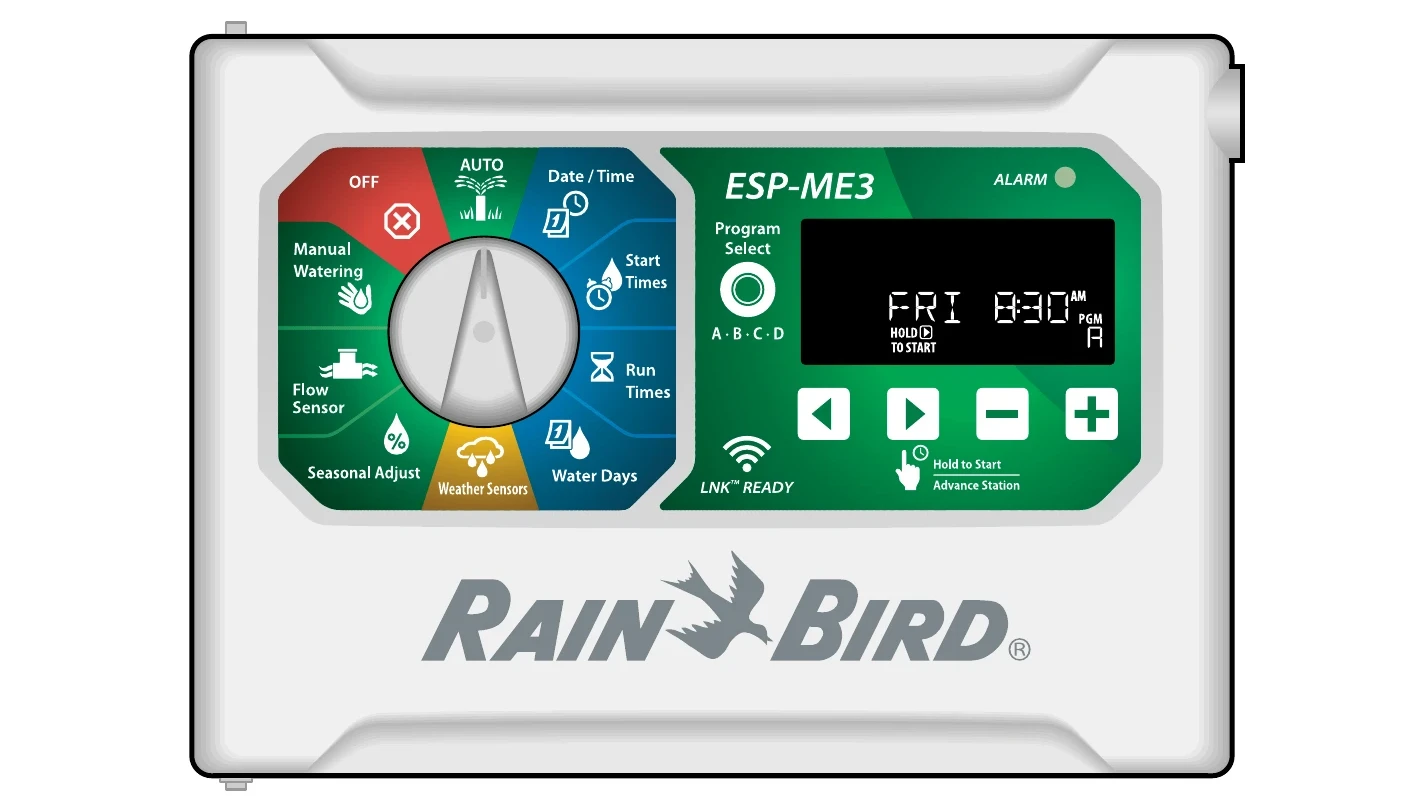

Basic Operations:
- Set Date and Time: Navigate to Date/Time using the dial and adjust using -/+ buttons.
- Set Watering Start Times: Go to Start Times and program up to 6 start times per program.
- Set Station Run Times: Use Run Times to define watering duration for each station (1 minute to 6 hours).
- Set Water Days: Choose specific watering days using Water Days or set custom days of the week.
- Manual Watering: Use Manual Watering for immediate watering of stations or programs.
Troubleshooting and error codes
| Error | ALARM LED | Error Message On Display |
|---|---|---|
| No Start Times are set | BLINK | NO START TIMES |
| No Run Times are set | BLINK | NO RUN TIMES |
| No Water Days are set | BLINK | NO WATER DAYS |
| Master Valve short | SOLID | MASTER VALVE SHORTED OR HIGH CURRENT |
| Station short | SOLID | STATION "X" WIRE SHORTED |
| Flow Sensor - High Flow Condition | Solid | HIGH FLOW ALARM STATION "X" |
| Flow Sensor - Low Flow Condition | Solid | LOW FLOW ALARM STATION "X" |
Troubleshooting and error codes
| Error | ALARM LED | Error Message On Display |
|---|---|---|
| No Start Times are set | BLINK | NO START TIMES |
| No Run Times are set | BLINK | NO RUN TIMES |
| No Water Days are set | BLINK | NO WATER DAYS |
| Master Valve short | SOLID | MASTER VALVE SHORTED OR HIGH CURRENT |
| Station short | SOLID | STATION "X" WIRE SHORTED |
| Flow Sensor - High Flow Condition | Solid | HIGH FLOW ALARM STATION "X" |
| Flow Sensor - Low Flow Condition | Solid | LOW FLOW ALARM STATION "X" |
