Warranty Summary

SCOSCHE warrants this product to be free from defects for 90 days from the date of purchase.

Download Manual

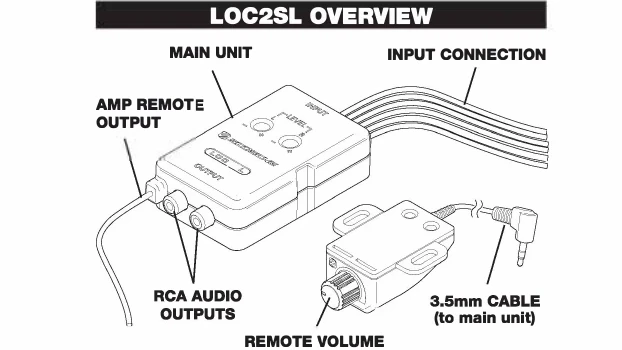

The SCOSCHE LOC2SL converts speaker wire (high level) to RCA (low level) outputs. It allows adding a 2-channel or mono amplifier to a factory or aftermarket stereo system. Key operations include:

Wiring Connections: Connect power, ground, speaker inputs, and remote wire as per the wiring instructions and diagram provided.
Remote Volume Control (Optional): Install and connect the remote volume control for subwoofer level adjustment.
Output Level Adjustment: Adjust gain controls carefully to optimize audio output and prevent distortion.

Troubleshooting and error codes

Problem	Possible Causes and Solutions
NO SOUND	Check all electrical and signal connections (speaker wire, RCA cables). Verify amplifier is turning on and remote turn-on output is connected. Ensure LOC2SL is receiving +12V power and ground. Check gain adjustment levels on LOC2SL. If using remote volume control, ensure knob is not turned all the way down.
