Manual for PP1DCS - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 1:58 p.m.
Manual Publish Date: 2016-07-27
Warranty Summary
The STANLEY FATMAX PP1DCS is warranted against defects for ONE (1) YEAR from purchase date.

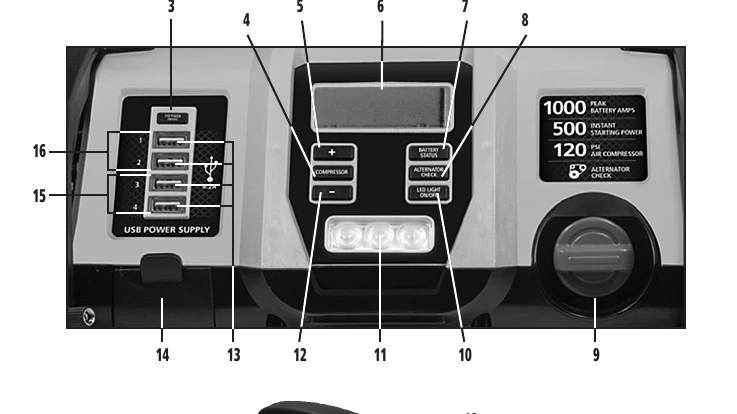

Basic Operations:
- Viewing Battery Status: Press the Battery Status Button to check the charge level.
- Jump-Starter: Connect clamps to vehicle battery, turn on Jump Starter Power Switch, and crank the engine.
- Alternator Check: Press the Alternator Check Button to analyze alternator condition.
- Portable Compressor: Attach SureFit nozzle, set pressure using control buttons, and press Compressor Power Button to inflate.
- USB Ports: Press USB Power Button, then plug in USB devices to charge.
- LED Area Light: Press LED Area Light Power Button to turn on/off the light.
Troubleshooting and error codes
| Problem | Possible Cause and Solution |
|---|---|
| Unit will not charge | Make sure all of the unit's functions are turned off. Make sure a suitable gage extension cord is properly connected to both the unit and a functioning AC outlet. |
| Unit fails to jump-start | Make sure unit's Jump Starter Power Switch is in the on position. Make sure a proper polarity cable connection has been established. Make sure the unit is not being operated in the Compressor mode. Check that the unit has a full charge. Recharge the unit if necessary. |
| Portable compressor will not inflate | Make sure the Compressor Power Button has been pressed to turn the compressor on. Make sure the unit is not being operated in the Jump Starter mode. Make sure the SureFitâ„¢ nozzle is securely screwed on to the valve stem when attempting to inflate tires; or that the nozzle adapter is securely screwed into the SureFitâ„¢ nozzle and is inserted properly into the item to be inflated on all other inflatables. Check that the unit has a full charge. Recharge the unit if necessary. |
| USB power port will not power appliance | Make sure the USB Power Button is in the on position. Make sure all the USB Power/Fault Indicators light solid blue. If a fault condition exists in either of the first two USB Ports, the upper set of USB Power/Fault Indicators will flash blue. If a fault condition exists in either of the bottom two USB Ports, the lower set of USB Power/Fault Indicator will flash blue. Refer to the Important Notes in the "USB Ports" section to remedy any faults. Make sure that the total draw of all USB devices plugged into the top two USB Ports does not exceed 3.1A and/or the total draw of all USB devices plugged into the bottom two USB Ports does not exceed 3.1A. Some USB-powered household electronics will not operate with this USB charging/power port. Check the manual of the corresponding electronic device to confirm that it can be used with this type of USB charging/power port. Check that the unit has a full charge. Recharge the unit if necessary. |
| LED area light does not come on | Make sure the area light power button is in the on position Check that the unit has a full charge. Recharge the unit if necessary. |
Troubleshooting and error codes
| Problem | Possible Cause and Solution |
|---|---|
| Unit will not charge | Make sure all of the unit's functions are turned off. Make sure a suitable gage extension cord is properly connected to both the unit and a functioning AC outlet. |
| Unit fails to jump-start | Make sure unit's Jump Starter Power Switch is in the on position. Make sure a proper polarity cable connection has been established. Make sure the unit is not being operated in the Compressor mode. Check that the unit has a full charge. Recharge the unit if necessary. |
| Portable compressor will not inflate | Make sure the Compressor Power Button has been pressed to turn the compressor on. Make sure the unit is not being operated in the Jump Starter mode. Make sure the SureFitâ„¢ nozzle is securely screwed on to the valve stem when attempting to inflate tires; or that the nozzle adapter is securely screwed into the SureFitâ„¢ nozzle and is inserted properly into the item to be inflated on all other inflatables. Check that the unit has a full charge. Recharge the unit if necessary. |
| USB power port will not power appliance | Make sure the USB Power Button is in the on position. Make sure all the USB Power/Fault Indicators light solid blue. If a fault condition exists in either of the first two USB Ports, the upper set of USB Power/Fault Indicators will flash blue. If a fault condition exists in either of the bottom two USB Ports, the lower set of USB Power/Fault Indicator will flash blue. Refer to the Important Notes in the "USB Ports" section to remedy any faults. Make sure that the total draw of all USB devices plugged into the top two USB Ports does not exceed 3.1A and/or the total draw of all USB devices plugged into the bottom two USB Ports does not exceed 3.1A. Some USB-powered household electronics will not operate with this USB charging/power port. Check the manual of the corresponding electronic device to confirm that it can be used with this type of USB charging/power port. Check that the unit has a full charge. Recharge the unit if necessary. |
| LED area light does not come on | Make sure the area light power button is in the on position Check that the unit has a full charge. Recharge the unit if necessary. |
