Manual for GTX GO 40 - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 4:24 a.m.
Warranty Summary
No warranty information provided in this manual.
Quick Operation Summary:
- Install the POD: Connect battery and pod magnetically.

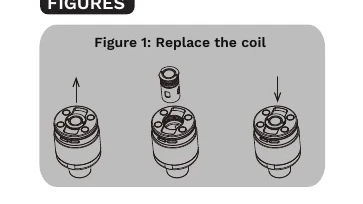

- Replace the Coil: Remove old coil and install a new one.
- Fill E-liquid: Unscrew top cap, fill e-liquid, and screw cap back. Wait 5 minutes.
- Adjust Airflow: Rotate pod to adjust airflow.
- Power On/Off: Press power button 5 times in 2s.
- Start Vaping: Press and hold power button to vape.
Troubleshooting and error codes
| Problem | Situation | Indicator |
|---|---|---|
| Low Resistance Protection | The device detects an ultra-low resistance when start to vape. | x 5 → Stop Output |
| Short-circuit Protection | The device detects a short circuit. | x 5 → Stop Output |
| No Load Protection | The device does not detect an atomizer when start to vape. | x 5 → Stop Output |
| High Resistance Protection | The device detects an ultra-high resistance when start to vape. | x 5 → Stop Output |
| Low Voltage Protection | The battery voltage drops too low when start to vape. | x 3 → Stop Output |
| Over Charge Protection | The device is fully charged. | → Stop Charging |
| Over Discharge Protection | The battery voltage drops too low during vaping. | x 3 → Stop Output |
| Auto-Shut off Protection | Constantly vape for 10 seconds or more. | x 3 → Stop Output |
| Over Heat Protection | The device detects a high temperature PCBA. | x 5 → Stop Output |
Troubleshooting and error codes
| Problem | Situation | Indicator |
|---|---|---|
| Low Resistance Protection | The device detects an ultra-low resistance when start to vape. | x 5 → Stop Output |
| Short-circuit Protection | The device detects a short circuit. | x 5 → Stop Output |
| No Load Protection | The device does not detect an atomizer when start to vape. | x 5 → Stop Output |
| High Resistance Protection | The device detects an ultra-high resistance when start to vape. | x 5 → Stop Output |
| Low Voltage Protection | The battery voltage drops too low when start to vape. | x 3 → Stop Output |
| Over Charge Protection | The device is fully charged. | → Stop Charging |
| Over Discharge Protection | The battery voltage drops too low during vaping. | x 3 → Stop Output |
| Auto-Shut off Protection | Constantly vape for 10 seconds or more. | x 3 → Stop Output |
| Over Heat Protection | The device detects a high temperature PCBA. | x 5 → Stop Output |
