Manual for TM263 - Troubleshooting and error codes + PDF Download
Uploaded: April 8, 2025, 1:39 p.m.
Manual Publish Date: 2019-01-01
Warranty Summary
No warranty information is provided in this manual.

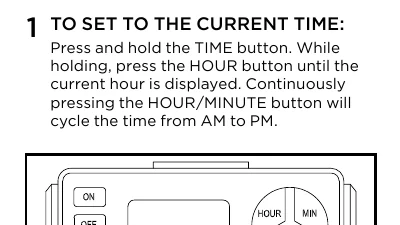

- Set Current Time: Press and hold the TIME button, then press the HOUR and MIN buttons to set the current time.
- Program Setting: Press PROG to select Program 1 or 2. Hold ON, then press HOUR/MIN to set 'on' time. Hold OFF, then press HOUR/MIN to set 'off' time. Press TIME or wait 15 seconds to save.
- Program Review: Hold PROG to select program. Hold ON to review 'on' time, and OFF to review 'off' time.
- Timer Modes: Press the top button to cycle through Continuous On, Continuous Off, or Automatic Timer modes.
- Security Mode: Press ON and OFF buttons together to enable/disable security mode.
Troubleshooting and error codes
| Problem | Solution |
|---|---|
| No power | Ensure the timer is plugged into a working outlet and charged for at least 1 hour. |
| Timer not turning on/off as programmed | Verify program settings and timer mode. Ensure correct AM/PM settings. |
Troubleshooting and error codes
| Problem | Solution |
|---|---|
| No power | Ensure the timer is plugged into a working outlet and charged for at least 1 hour. |
| Timer not turning on/off as programmed | Verify program settings and timer mode. Ensure correct AM/PM settings. |
