Warranty Summary

This Whirlpool appliance is covered by a one year limited warranty from the date of purchase, covering defects in materials or workmanship.

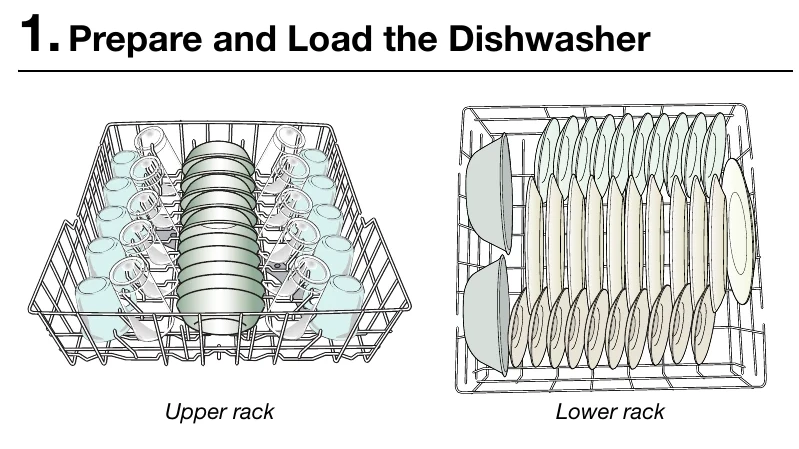

Prepare and Load the Dishwasher: Remove food leftovers, load dishes correctly, and load silverware appropriately.
Check That All Arms Spin Freely: Ensure no items obstruct the spray arms.
Add Detergent: Use automatic dishwasher detergent, adding it just before starting the cycle.
Add Rinse Aid: Fill the rinse aid dispenser for optimal drying performance.
Select a Cycle: Choose the appropriate wash cycle based on soil level and desired wash time.
Select Options: Customize cycles with desired options like Heat Dry or Sani Rinse.
Start or Resume a Cycle: Close the door and press Start/Resume to begin or continue the wash cycle.

Troubleshooting and error codes

Problem	Solution
Dishwasher does not run or stops during a cycle	Ensure door is tightly closed and latched. Select the right cycle. Check for power supply issues (fuse or circuit breaker). Check if water shutoff valve is turned on.
The Clean light is flashing	Check overfill protection float. Ensure water supply is turned on. Check for suds; avoid incorrect detergent types or excessive amounts.
Dishes do not dry completely	Use rinse aid and Heat Dry option. Load dishes properly, unload bottom rack first, and angle concave items.
Noise	Surging, hissing, and snapping sounds are normal. Ensure filters are properly installed. Readjust dishware if thumping sound occurs.
Spotting/Filming	Use liquid rinse aid and correct detergent amount. Check water temperature (120°F/49°C). Run a vinegar rinse cycle.
Dishwasher does not clean completely	Load dishwasher correctly. Check and clean filter. Select appropriate cycle (Heavy Wash for tougher loads). Use proper amount of fresh detergent. Scrape food from dishes.
Dishwasher does not drain	Ensure cycle is complete and resume if needed. Check disposer knockout plug (if connected). Check drain hose for kinks and obstructions. Check fuse or circuit breaker.
